AD8648

PRODUCTION

AD8648

24 MHz Rail-to-Rail Quad Amplifier

PRODUCTION

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 7

1ku List Price Starting From $1.23

Features

Offset voltage: 2.5 mV maximum
Single-supply operation: 2.7 V to 5.5 V
Low noise: 8 nV/√Hz
Wide bandwidth: 24 MHz
Slew rate: 11 V/μs
Short-circuit output current: 120 mA
Qualified for automotive applications
No phase reversal
Low input bias current: 1 pA
Low supply current per amplifier: 2 mA maximum
Unity gain stable

Additional Details

The AD8646 and the AD8647 are the dual, and the AD8648 is the quad, rail-to-rail, input and output, single-supply amplifiers featuring low offset voltage, wide signal bandwidth, low input voltage, and low current noise. The AD8647 also has a low power shutdown function.

The combination of 24 MHz bandwidth, low offset, low noise, and very low input bias current makes these amplifiers useful in a wide variety of applications. Filters, integrators, photodiode amplifiers, and high impedance sensors all benefit from the combination of performance features. AC applications benefit from the wide bandwidth and low distortion. The AD8646/AD8647/AD8648 offer high output drive capability, which is excellent for audio line drivers and other low impedance applications. The AD8646 and AD8648 are available for automotive applications (see the Ordering Guide).

Applications include portable and low powered instrumentation, audio amplification for portable devices, portable phone headsets, barcode scanners, and multipole filters. The ability to swing rail to rail at both the input and output enables designers to buffer CMOS ADCs, DACs, ASICs, and other wide output swing devices in single-supply systems.

Applications

Battery-powered instruments
Multipole filters
ADC front ends
Sensors
Barcode scanners
ASIC input or output amplifiers
Audio amplifiers
Photodiode amplifiers
Datapath/mux/switch control

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 7

1ku List Price Starting From $1.23

Technical Documents 2

AD8646/AD8647/AD8648: 24 MHz Rail-to-Rail Amplifiers with Shutdown Option Data Sheet (Rev.F) 10/30/2007

Key Benefits of Input Overvoltage Protected Op Amps in Systems 12/01/2012

Design Resources 7

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

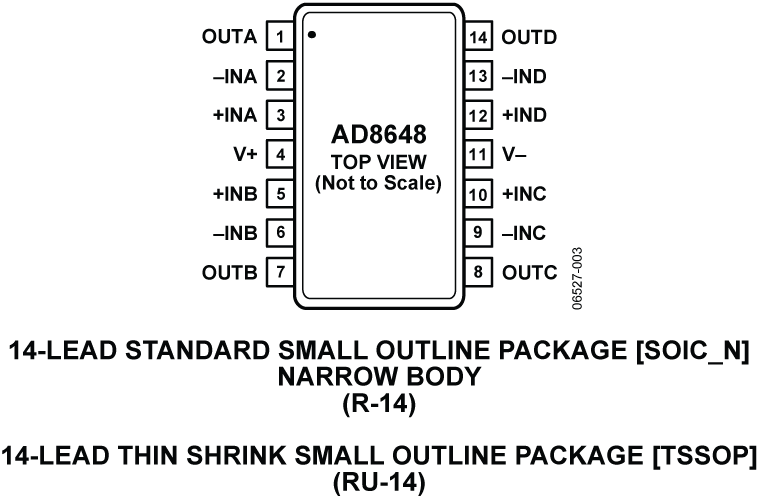

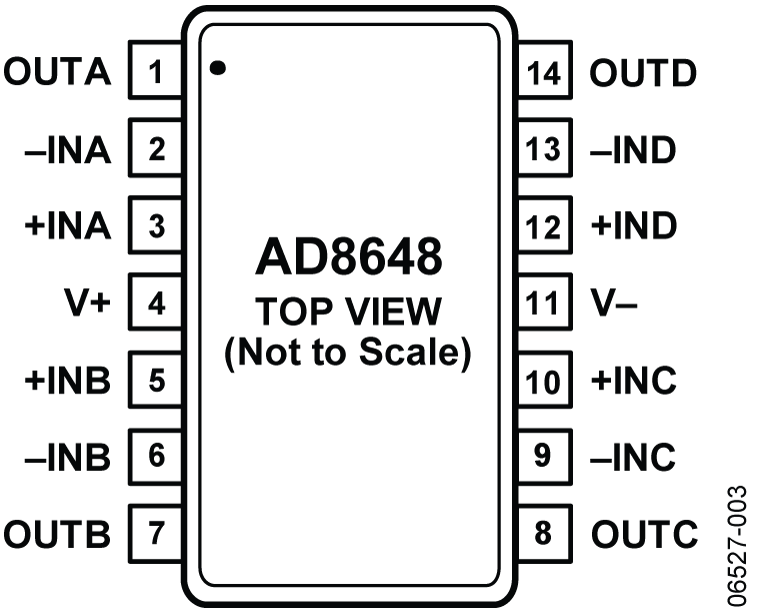

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD8648ARUZ	14-Lead TSSOP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
AD8648ARUZ-REEL	14-Lead TSSOP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
AD8648ARZ	14-Lead SOIC	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
AD8648ARZ-REEL	14-Lead SOIC	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
AD8648ARZ-REEL7	14-Lead SOIC	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
AD8648WARUZ	14-Lead TSSOP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
AD8648WARUZ-RL	14-Lead TSSOP	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

AD8648ARUZ
Pin/Package Drawing
14-Lead TSSOP
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

AD8648ARUZ-REEL
Pin/Package Drawing
14-Lead TSSOP
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

AD8648ARZ
Pin/Package Drawing
14-Lead SOIC
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

AD8648ARZ-REEL
Pin/Package Drawing
14-Lead SOIC
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

AD8648ARZ-REEL7
Pin/Package Drawing
14-Lead SOIC
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

AD8648WARUZ
Pin/Package Drawing
14-Lead TSSOP
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

AD8648WARUZ-RL
Pin/Package Drawing
14-Lead TSSOP
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

PCN/PDN Information

Filter by Model

Part Models

Product Lifecycle

PCN

May 8, 2023

- 23_0068

Qualification of Alternate Wafer Fab Site at ADI Limerick for 0.6um CMOS Amplifier Product

AD8648ARUZ

PRODUCTION

AD8648ARUZ-REEL

PRODUCTION

AD8648ARZ

PRODUCTION

AD8648ARZ-REEL

PRODUCTION

AD8648ARZ-REEL7

PRODUCTION

AD8648WARUZ

PRODUCTION

AD8648WARUZ-RL

PRODUCTION

pdf

PCN23_0068_Form

xls

Material_Report

pdf

Detailed Change Description

xlsm

Delta Qualification Matrix

pdf

Qualification Results Summary

Apr 5, 2021

- 21_0035

Amkor Philippines as an Alternate Site for TSSOP_4.4

AD8648ARUZ

PRODUCTION

AD8648ARUZ-REEL

PRODUCTION

pdf

PCN21_0035_Form

xls

Material_Report

pdf

Qualification Results Summary

pdf

Other

Feb 11, 2011

- 10_0005

Halogen Free Material Change for TSSOP Products Assembled at Amkor

AD8648ARUZ

PRODUCTION

AD8648ARUZ-REEL

PRODUCTION

pdf

PCN10_0005_Form

xls

Material_Report

pdf

Reliability Report

Nov 23, 2010

- 10_0004

Halogen Free Material Change for SOIC Narrow Body Products Assembled at Amkor

AD8648ARZ

PRODUCTION

AD8648ARZ-REEL

PRODUCTION

AD8648ARZ-REEL7

PRODUCTION

pdf

PCN10_0004_Form

xls

Material_Report

pdf

ADI0012 Reliability Report

Jan 16, 2012

- 11_0244

Halogen Free Material Change for Select TSSOP Products Assembled at Amkor

AD8648WARUZ

PRODUCTION

AD8648WARUZ-RL

PRODUCTION

pdf

PCN11_0244_Form

xls

Material_Report

pdf

Qualification Report Summary

Filter by Model

Part Models

Product Lifecycle

PCN

May 8, 2023

- 23_0068

Qualification of Alternate Wafer Fab Site at ADI Limerick for 0.6um CMOS Amplifier Product

AD8648ARUZ

PRODUCTION

AD8648ARUZ-REEL

PRODUCTION

AD8648ARZ

PRODUCTION

AD8648ARZ-REEL

PRODUCTION

AD8648ARZ-REEL7

PRODUCTION

AD8648WARUZ

PRODUCTION

AD8648WARUZ-RL

PRODUCTION

pdf

PCN23_0068_Form

xls

Material_Report

pdf

Detailed Change Description

xlsm

Delta Qualification Matrix

pdf

Qualification Results Summary

Apr 5, 2021

- 21_0035

Amkor Philippines as an Alternate Site for TSSOP_4.4

AD8648ARUZ

PRODUCTION

AD8648ARUZ-REEL

PRODUCTION

pdf

PCN21_0035_Form

xls

Material_Report

pdf

Qualification Results Summary

pdf

Other

Feb 11, 2011

- 10_0005

Halogen Free Material Change for TSSOP Products Assembled at Amkor

AD8648ARUZ

PRODUCTION

AD8648ARUZ-REEL

PRODUCTION

pdf

PCN10_0005_Form

xls

Material_Report

pdf

Reliability Report

Nov 23, 2010

- 10_0004

Halogen Free Material Change for SOIC Narrow Body Products Assembled at Amkor

AD8648ARZ

PRODUCTION

AD8648ARZ-REEL

PRODUCTION

AD8648ARZ-REEL7

PRODUCTION

pdf

PCN10_0004_Form

xls

Material_Report

pdf

ADI0012 Reliability Report

Jan 16, 2012

- 11_0244

Halogen Free Material Change for Select TSSOP Products Assembled at Amkor

AD8648WARUZ

PRODUCTION

AD8648WARUZ-RL

PRODUCTION

pdf

PCN11_0244_Form

xls

Material_Report

pdf

Qualification Report Summary

Alternative Parts 2

Parts	Product Life Cycle	Description
LTC6242	PRODUCTION	Quad 18MHz, Low Noise, Rail-to-Rail Output, CMOS Op Amp
AD8618	PRODUCTION	Precision 20 MHz CMOS Quad Rail-to-Rail Operational Amplifier

EVAL-OPAMP-4

EVAL-OPAMP-4 Evaluation Board

EVAL-OPAMP-4

EVAL-OPAMP-4 Evaluation Board

Buy Now View Details

Product Detail

The Universal Precision Op Amp Evaluation Boards has been designed and optimized for many circuit configurations allowing the users to best suit their applications. These boards are all RoHs Compliant. See references below on what board to order by lead count and package.

EVAL-PRAOPAMP-4RUZ (Quad 14-Lead TSSOP) RU-14
EVAL-PRAOPAMP-4RZ (Quad 14-Lead SOIC) R-14

EVAL-OPAMP-4

EVAL-OPAMP-4 Evaluation Board

LTspice 1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

Lt Spice

AD8648 - Operational Amplifiers (Op Amps)

1.42 K

Analog Photodiode Wizard

Use Photodiode Wizard to design a transimpedance amplifier circuit to interface with a photodiode. Select a photodiode from the library included in the tool, or enter custom photodiode specifications. Quickly observe tradeoffs between Bandwidth, Peaking (Q), and ENOB/SNR. Modify circuit parameters, and immediately see results in plots for pulse response, frequency response, and noise gain.

Open Tool

Analog Filter Wizard

Use the Analog Filter Wizard to design low-pass, high-pass, or band-pass filters with actual op amps in minutes. As you progress through the design process, you can observe the characteristics of your filter design from ideal specifications to real world circuit behavior. Quickly evaluate the tradeoffs in op amp specifications - including gain-bandwidth, noise, and supply current – to determine the best filter design for your requirements.

Open Tool

Signal Chain Designer - BETA

Signal Chain Designer is a web-based tool designed to create and simulate complex precision signal chains. See your circuit’s performance before you commit to your PCB: transfer function, noise, power consumption, input range, and DC error. Quickly experiment with different parts and architectures. Signal chains can be exported to LTspice for further analysis.

Open Tool
