AD8629S

PRODUCTION

AEROSPACE ZERO DRIFT, SINGLE-SUPPLY, RAIL-TO-RAIL INPUT/OUTPUT OPERATIONAL AMPLIFIER

Data Sheet (Rev. E) Product Selection Table

Part Models: 2
1ku List Price: Starting From $192.60

Viewing:

Overview

Low offset voltage: 1 μV
Rail-to-rail input and output swing
5 V single-supply operation

Low supply current: 1.0 mA
Overload recovery time: 50 μs
Very low input bias current

This amplifier has ultralow offset, drift, and bias current. The AD8629S is a wide bandwidth auto-zero amplifier featuring rail-to-rail input and output swing and low noise. Operation is fully specified from 2.7 V to 5 V single supply (±1.35 V to ±2.5 V dual supply). The AD8629S provide benefits previously found only in expensive auto-zeroing or chopper-stabilized amplifiers. Using Analog Devices, Inc., topology, these zero-drift amplifiers combines high accuracy and low noise. No external capacitor is required. In addition, the AD8629S greatly reduce the digital switching noise found in most chopper-stabilized amplifiers. The AD8629S is suited for applications where error sources cannot be tolerated. Position and pressure sensors, and strain gage amplifiers benefit greatly from nearly zero drift over their operating temperature range. Many systems can take advantage of the rail-to-rail input and output swings provided by the AD8629S to reduce input biasing complexity and maximize SNR. The AD8629S is specified for the extended industrial temperature range (−55°C to +125°C). The AD8629 is available in a 10-lead cerpack package.

Part Models: 2
1ku List Price: Starting From $192.60

Documentation

Data Sheet 1

AD8629S: Zero-Drift, Single-Supply Rail-to-Rail Input/Output Operational Amplifier Aerospace Data Sheet (Rev.E) 06/02/2010

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

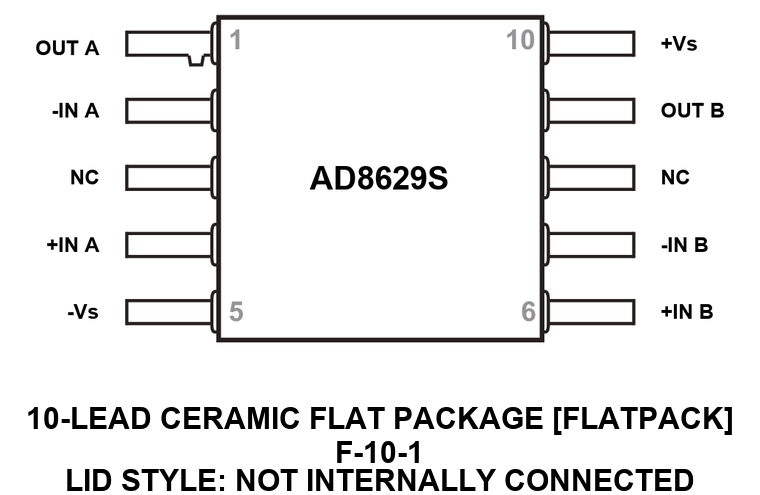

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD8629AL-EMX	10-Lead FlatPack	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8629D703L	10-Lead FlatPack	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Jul 30, 2018 - 16_0026 Qualify TeamQuest Technology, Inc. for Burn-in and Life Test of Military and Aerospace Devices
		PCN16_0026_Form Material_Report Qualification Results Summary
AD8629AL-EMX	PRODUCTION
AD8629D703L	PRODUCTION
Oct 29, 2017 - 17_0079 Qualification of TeamQuest Technology Inc., Philippines as an Alternate Test Site for TC-Vos Testing
		PCN17_0079_Form Material_Report Test Correlation Report
AD8629AL-EMX	PRODUCTION
AD8629D703L	PRODUCTION
Nov 18, 2015 - 15_0219 Laser Marking Standardization for Aerospace Packages
		PCN15_0219_Form Material_Report Qualification Results Summary
AD8629AL-EMX	PRODUCTION
AD8629D703L	PRODUCTION
Oct 2, 2013 - 13_0163 Qualify TSSI Cavite, Phils for Burn-in and Life Test of MIL-PRF-38535 QMLV Aerospace Devices
		PCN13_0163_Form Material_Report Qualification Plan Summary
AD8629AL-EMX	PRODUCTION
AD8629D703L	PRODUCTION
Nov 7, 2012 - 12_0199 Qualification of New Conductive Silver-Filled Glass Die Attach Adhesive for Cerdip and Ceramic Flatpack (Cerpack) Packages.
		PCN12_0199_Form Material_Report Qualification Report Summary Datasheet Specification Comparison
AD8629AL-EMX	PRODUCTION
AD8629D703L	PRODUCTION
Nov 9, 2011 - 11_0050 Transfer of ADI Hermetics Assembly location from Paranaque, Manila to General Trias, Cavite Philippines
		PCN11_0050_Form Material_Report
AD8629AL-EMX	PRODUCTION
AD8629D703L	PRODUCTION
Nov 9, 2011 - 11_0182 Test Site Transfer from Analog Devices Philippines Inc in Paranaque to Analog Devices General Trias in Cavite, Philippines
		PCN11_0182_Form Material_Report
AD8629AL-EMX	PRODUCTION
AD8629D703L	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

AD8629

SPICE Model 1

AD8629 SPICE Macro Model

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
