AD8602

DigiTrim™ R/R Input and Output Dual Op Amp with Very Low Offset Voltage

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.I)
Documentation View All Documentation
SPICE Model AD8602 SPICE Macro Model Download 2.46 KB LTspice AD8602 - Operational Amplifiers (Op Amps) Download 1.36 KB
Part Models 11
1ku List Price Starting From $0.51
Features
  • Low Offset Voltage: 500 µV Max
  • Single-Supply Operation: 2.7 V to 5.5 V
  • Low Supply Current: 750 µA/Amplifier
  • Wide Bandwidth: 8 MHz
  • Slew Rate: 5 V/µs
  • Low Distortion
  • No Phase Reversal
  • Low Input Currents
  • Unity Gain Stable
Additional Details
show more Icon
The AD8601, AD8602, and AD8604 are single, dual, and quad rail-to-rail, input and output, single-supply amplifiers featuring very low offset voltage and wide signal bandwidth. These amplifiers use a new, patented trimming technique that achieves superior performance without laser trimming. All are fully specified to operate on a 3 V to 5 V single supply.

The combination of low offsets, very low input bias currents, and high speed make these amplifiers useful in a wide variety of applications. Filters, integrators, diode amplifiers, shunt current sensors, and high impedance sensors all benefit from the combination of performance features. Audio and other ac applications benefit from the wide bandwidth and low distortion. For the most cost-sensitive applications, the D grades offer this ac performance with lower dc precision at a lower price point.

Applications for these amplifiers include audio amplification for portable devices, portable phone headsets, bar code scanners, portable instruments, cellular PA controls, and multipole filters.

The ability to swing rail-to-rail at both the input and output enables designers to buffer CMOS ADCs, DACs, ASICs, and other wide output swing devices in single-supply systems.

The AD8601, AD8602, and AD8604 are specified over the extended industrial (−40°C to +125°C) temperature range. The AD8601, single, is available in a tiny, 5-lead SOT-23 package. The AD8602, dual, is available in 8-lead MSOP and 8-lead, narrow SOIC surface-mount packages. The AD8604, quad, is available in 14-lead TSSOP, 14-lead SOIC, and 16-lead QSOP packages.

Show More Arrow image
file View Data Sheet (Rev.I)
Documentation View All Documentation
SPICE Model AD8602 SPICE Macro Model Download 2.46 KB LTspice AD8602 - Operational Amplifiers (Op Amps) Download 1.36 KB
Part Models 11
1ku List Price Starting From $0.51
modal bookmark icon

{{modalTitle}}

modal close icon

{{modalDescription}}

{{dropdownTitle}}

input down arrow
  • {{defaultSelectedText}}
    • {{#each projectNames}}
  • {{name}}
    • {{/each}} {{#if newProjectText}}
  • plus icon {{newProjectText}}
    • {{/if}}
{{#if toggleButtonDescription}}
{{toggleButtonDescription}}
{{/if}} {{#if newProjectTitle}}

{{newProjectTitle}}

{{projectNameErrorText}}

{{/if}}

AD8602

Documentation

5
overlayclose

Filters

1 Applied

mobileoverlaydownarrow
  • All
    TickIcon
  • Data Sheet
  • Technical Articles
  • Application Note
  • All
    TickIcon
  • English
  • Japanese
resetfilter

Reset Filters

Data Sheet

2

PDF Vector

PDF

UPDATED 10/30/2020
English

AD8601/AD8602/AD8604: Precision CMOS, Single-Supply, Rail-to-Rail, Input/Output Wideband Operational Amplifiers Data Sheet (Rev.I)

Open PDF File

redirect
389.36 K
download

Download PDF

PDF Vector

pdf

UPDATED 09/10/2008
Japanese

AD8601/AD8602/AD8604: オペアンプ、高精度、CMOS、単電源、入／出力レールtoレール、広帯域 (Rev.A)

Open PDF File

redirect
145 kB
download

Download PDF

Technical Articles

1

PDF Vector

HTML

UPDATED 11/01/2016
English
pH Sensor Reference Design Enabled for RF Wireless Transmission redirect icon

Application Note

2

PDF Vector

HTML

UPDATED 09/14/2023
English
AN-581: Biasing and Decoupling Op Amps in Single Supply Applications redirect icon

PDF Vector

HTML

UPDATED 09/14/2023
Japanese
AN-581: 単電源アプリケーションでのオペアンプのバイアスとデカップリング redirect icon

There are no results matching this criteria. Try resetting your filters or searching for a different term

close icon

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD8602ARMZ 8-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
AD8602ARMZ-REEL 8-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
AD8602ARZ 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
AD8602ARZ-REEL 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
AD8602ARZ-REEL7 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
AD8602DRMZ-REEL 8-Lead MSOP external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
AD8602DRZ 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
AD8602DRZ-REEL 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
AD8602DRZ-REEL7 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
AD8602WARZ-R7 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link
AD8602WARZ-RL 8-Lead SOIC external-link
  • HTML
  • Material Declaration external-link
  • HTML
  • Reliablity Data external-link

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 22, 2021

- 21_0001

Addition of Amkor Philippines as an Alternate Site for Singulated MSOP and MSOP_EP

AD8602ARMZ

PRODUCTION

AD8602ARMZ-REEL

PRODUCTION

AD8602DRMZ-REEL

PRODUCTION

pdf

PCN21_0001_Form

external-icon

xls

Material_Report

Download

pdf

Other

external-icon

pdf

Qualification Results Summary

external-icon

Jan 5, 2015

- 14_0246

Qualification of ASE Chungli, as an Alternate Assembly Site for Select MSOP Devices

AD8602ARMZ

PRODUCTION

AD8602ARMZ-REEL

PRODUCTION

AD8602DRMZ-REEL

PRODUCTION

pdf

PCN14_0246_Form

external-icon

xls

Material_Report

Download

Detailed Change Description

pdf

Qualification Results Summary

external-icon

May 15, 2012

- 10_0006

Halogen Free Material Change for mini SOIC Products

AD8602ARMZ

PRODUCTION

AD8602ARMZ-REEL

PRODUCTION

AD8602DRMZ-REEL

PRODUCTION

pdf

PCN10_0006_Form

external-icon

xls

Material_Report

Download

Qualification Report Summary

Qualification Report Summary

Aug 19, 2009

- 07_0024

Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad

AD8602ARMZ

PRODUCTION

AD8602ARMZ-REEL

PRODUCTION

AD8602DRMZ-REEL

PRODUCTION

Material_Report.csv

xls

Material_Report

Download

pdf

Parts List

external-icon

pdf

PCN07_0024_Form

external-icon

pdf

Qual Data

external-icon

Feb 8, 2010

- 04_0080

Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.

AD8602ARMZ-REEL

PRODUCTION

AD8602ARZ

PRODUCTION

AD8602ARZ-REEL

PRODUCTION

AD8602ARZ-REEL7

PRODUCTION

AD8602DRMZ-REEL

PRODUCTION

AD8602DRZ

PRODUCTION

AD8602DRZ-REEL

PRODUCTION

AD8602DRZ-REEL7

PRODUCTION

pdf

PCN04_0080_Form

external-icon

xls

Material_Report

Download

pdf

Reliability Report

external-icon

pdf

Reliability Report

external-icon

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Mar 22, 2021

- 21_0001

arrow down

Addition of Amkor Philippines as an Alternate Site for Singulated MSOP and MSOP_EP

AD8602ARMZ

PRODUCTION

AD8602ARMZ-REEL

PRODUCTION

AD8602DRMZ-REEL

PRODUCTION

pdf

PCN21_0001_Form

external-icon

xls

Material_Report

Download

pdf

Other

external-icon

pdf

Qualification Results Summary

external-icon
Jan 5, 2015

- 14_0246

arrow down

Qualification of ASE Chungli, as an Alternate Assembly Site for Select MSOP Devices

AD8602ARMZ

PRODUCTION

AD8602ARMZ-REEL

PRODUCTION

AD8602DRMZ-REEL

PRODUCTION

pdf

PCN14_0246_Form

external-icon

xls

Material_Report

Download
Detailed Change Description

pdf

Qualification Results Summary

external-icon
May 15, 2012

- 10_0006

arrow down

Halogen Free Material Change for mini SOIC Products

AD8602ARMZ

PRODUCTION

AD8602ARMZ-REEL

PRODUCTION

AD8602DRMZ-REEL

PRODUCTION

pdf

PCN10_0006_Form

external-icon

xls

Material_Report

Download
Qualification Report Summary
Qualification Report Summary
Aug 19, 2009

- 07_0024

arrow down

Package Material Changes for SOT23, MiniSO, MQFP, PDIP, PLCC, SOIC (narrow and wide body), SSOP, TSSOP and TSSOP exposed pad

AD8602ARMZ

PRODUCTION

AD8602ARMZ-REEL

PRODUCTION

AD8602DRMZ-REEL

PRODUCTION

Material_Report.csv

xls

Material_Report

Download

pdf

Parts List

external-icon

pdf

PCN07_0024_Form

external-icon

pdf

Qual Data

external-icon
Feb 8, 2010

- 04_0080

arrow down

Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.

AD8602ARMZ-REEL

PRODUCTION

AD8602ARZ

PRODUCTION

AD8602ARZ-REEL

PRODUCTION

AD8602ARZ-REEL7

PRODUCTION

AD8602DRMZ-REEL

PRODUCTION

AD8602DRZ

PRODUCTION

AD8602DRZ-REEL

PRODUCTION

AD8602DRZ-REEL7

PRODUCTION

pdf

PCN04_0080_Form

external-icon

xls

Material_Report

Download

pdf

Reliability Report

external-icon

pdf

Reliability Report

external-icon

Software & Part Ecosystem

Parts Product Life Cycle Description
LTC6087
popup image
Cart

RECOMMENDED FOR NEW DESIGNS

Dual 14MHz, Rail-to-Rail CMOS Amplifiers

AD8616
popup image
Cart

PRODUCTION

Precision 20 MHz CMOS Rail-to-Rail Dual Operational Amplifier

Evaluation Kits 1

reference details image

EVAL-OPAMP-2

EVAL-OPAMP-2 Evaluation Board

zoom

EVAL-OPAMP-2

EVAL-OPAMP-2 Evaluation Board

download icon

Download

 print icon

Print
EVAL-OPAMP-2
EVAL-OPAMP-2 Evaluation Board
Buy Now View Details

Product Detail

The universal precision op amp evaluation boards have been designed and optimized for many circuit configurations allowing the users to best suit their applications. These boards are all RoHs compliant. See references below on what board to order by lead count and package.

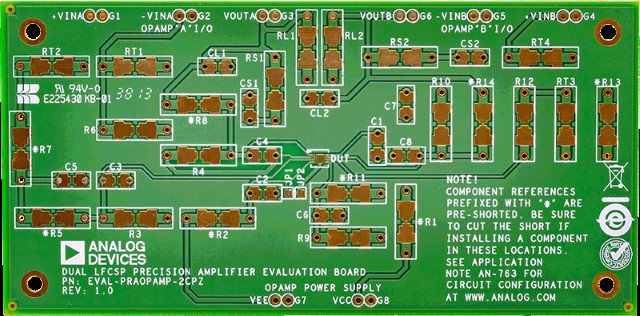

  • EVAL-PRAOPAMP-2CPZ (dual 8-lead LFCSP) CP-8

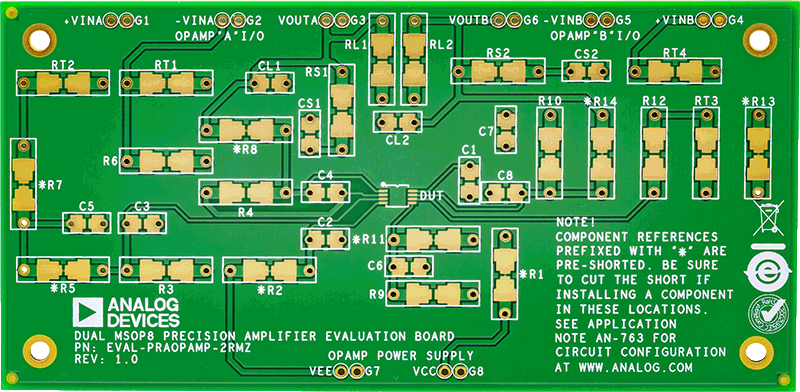

  • EVAL-PRAOPAMP-2RMZ (dual 8-lead MSOP) RM-8

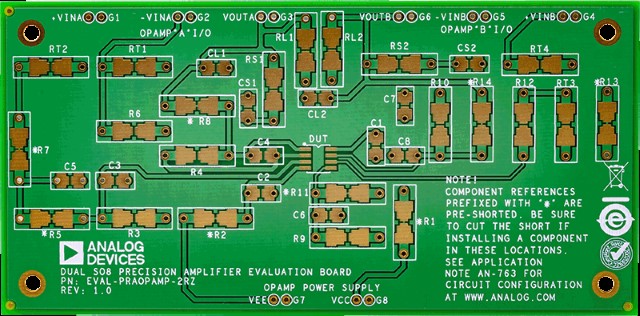

  • EVAL-PRAOPAMP-2RZ (dual 8-lead SOIC) R-8

Evaluation Kits1

evaluation kit item images

EVAL-OPAMP-2

EVAL-OPAMP-2 Evaluation Board

Tools & Simulations 5

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

To launch ready-to-run LTspice demonstration circuits for this part:

Step 1: Download and install LTspice on your computer.

Step 2: Click on the link in the section below to download a demonstration circuit.

Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.

spice tool Lt Spice

AD8602 - Operational Amplifiers (Op Amps) Download

1.36 K
