AD8561S

Aerospace 7nS Single Comparator

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 5
1ku List Price
price unavailable
Features
  • 7 ns Propagation Delay at 5 V
  • Single Supply Operation: 3 V to 10 V
  • Low Power
  • Latch Function

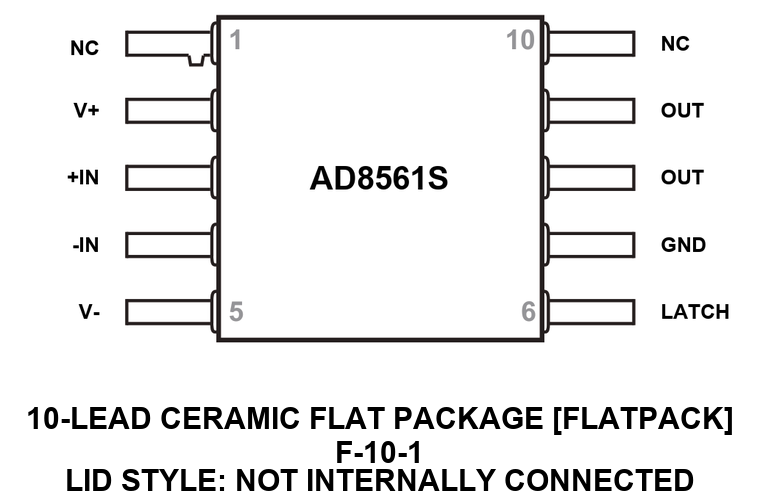

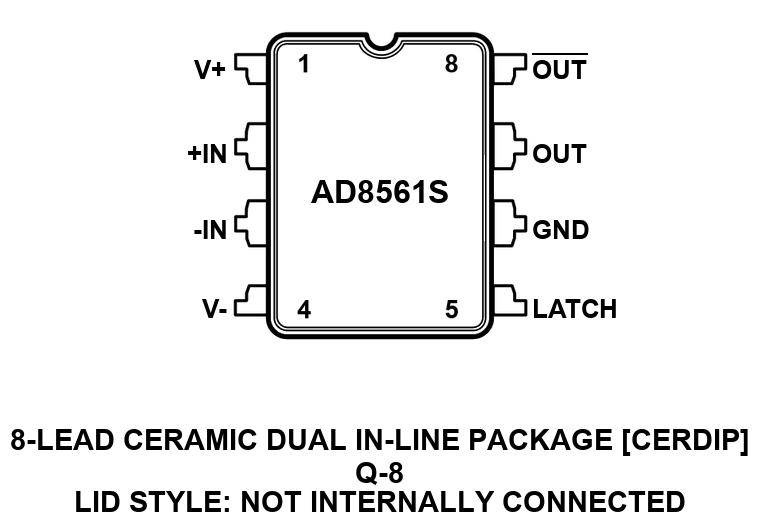

Additional Details
show more Icon
The AD8561 is a single 7 ns comparator with separate input and output sections. Separate supplies enable the input stage to be operated from ±5 V dual supplies and +5 V single supplies.

Fast 7 ns propagation delay makes the AD8561 a good choice for timing circuits and line receivers. Propagation delays for rising and falling signals are closely matched and track over temperature. This matched delay makes the AD8561 a good choice for clock recovery, since the duty cycle of the output will match the duty cycle of the input.

The AD8561 has the same pinout as the LT1016, with lower supply current and a wider common-mode input range, which includes the negative supply rail.

Part Models 5
1ku List Price
price unavailable

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
5962-0051501VPA
  • HTML
  • HTML
5962L0051502VHA
  • HTML
  • HTML
5962R0051501VHA
  • HTML
  • HTML
5962R0051501VPA
  • HTML
  • HTML
AD8561AL-EMX
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 30, 2018

- 16_0026

Qualify TeamQuest Technology, Inc. for Burn-in and Life Test of Military and Aerospace Devices

5962-0051501VPA

5962L0051502VHA

5962R0051501VHA

5962R0051501VPA

Nov 18, 2015

- 15_0219

Laser Marking Standardization for Aerospace Packages

5962-0051501VPA

5962L0051502VHA

5962R0051501VHA

5962R0051501VPA

Oct 2, 2013

- 13_0163

Qualify TSSI Cavite, Phils for Burn-in and Life Test of MIL-PRF-38535 QMLV Aerospace Devices

5962-0051501VPA

5962L0051502VHA

5962R0051501VHA

5962R0051501VPA

Nov 7, 2012

- 12_0199

Qualification of New Conductive Silver-Filled Glass Die Attach Adhesive for Cerdip and Ceramic Flatpack (Cerpack) Packages.

Nov 9, 2011

- 11_0050

Transfer of ADI Hermetics Assembly location from Paranaque, Manila to General Trias, Cavite Philippines

5962-0051501VPA

5962R0051501VHA

5962R0051501VPA

Nov 9, 2011

- 11_0182

Test Site Transfer from Analog Devices Philippines Inc in Paranaque to Analog Devices General Trias in Cavite, Philippines

5962-0051501VPA

5962R0051501VHA

5962R0051501VPA

Feb 9, 2009

- 08_0073

Change of Seal Glass Material for Cerdip & Cerpak Packages

5962-0051501VPA

5962R0051501VHA

5962R0051501VPA

Sep 21, 2009

- 09_0188

Change of Bottom Brand from Ink to Laser for Aerospace Cerpak Packages

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Jul 30, 2018

- 16_0026

arrow down

Qualify TeamQuest Technology, Inc. for Burn-in and Life Test of Military and Aerospace Devices

5962-0051501VPA

5962L0051502VHA

5962R0051501VHA

5962R0051501VPA

Nov 18, 2015

- 15_0219

arrow down

Laser Marking Standardization for Aerospace Packages

5962-0051501VPA

5962L0051502VHA

5962R0051501VHA

5962R0051501VPA

Oct 2, 2013

- 13_0163

arrow down

Qualify TSSI Cavite, Phils for Burn-in and Life Test of MIL-PRF-38535 QMLV Aerospace Devices

5962-0051501VPA

5962L0051502VHA

5962R0051501VHA

5962R0051501VPA

Nov 7, 2012

- 12_0199

arrow down

Qualification of New Conductive Silver-Filled Glass Die Attach Adhesive for Cerdip and Ceramic Flatpack (Cerpack) Packages.

Nov 9, 2011

- 11_0050

arrow down

Transfer of ADI Hermetics Assembly location from Paranaque, Manila to General Trias, Cavite Philippines

5962-0051501VPA

5962R0051501VHA

5962R0051501VPA

Nov 9, 2011

- 11_0182

arrow down

Test Site Transfer from Analog Devices Philippines Inc in Paranaque to Analog Devices General Trias in Cavite, Philippines

5962-0051501VPA

5962R0051501VHA

5962R0051501VPA

Feb 9, 2009

- 08_0073

arrow down

Change of Seal Glass Material for Cerdip & Cerpak Packages

5962-0051501VPA

5962R0051501VHA

5962R0051501VPA

Sep 21, 2009

- 09_0188

arrow down

Change of Bottom Brand from Ink to Laser for Aerospace Cerpak Packages
