AD8506

20 µA Maximum, RRIO, Zero Input Crossover Distortion Dual Op Amp

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Models 4
1ku List Price Starting From $0.73
Features
  • PSRR: 100 dB minimum
  • CMRR: 105 dB typical
  • Very low supply current: 20 μA per amplifier maximum
  • 1.8 V to 5 V single supply or ±0.9 V to ±2.5 V dual supply
  • Rail-to-rail input/output
  • Low noise: 45 nV/√Hz at 1 kHz
  • 2.5 mV offset voltage maximum
  • Very low input bias current: 1 pA typical
Additional Details
show more Icon
The AD8505/AD8506/AD8508 are single, dual, and quad micro-power amplifiers featuring rail-to-rail input/output swings while operating from a single 1.8 V to 5 V power supply or from dual ±0.9 V to ±2.5 V power supplies. Using a new circuit technology, these amplifiers offer zero input crossover distortion (excellent PSRR and CMRR performance) and low bias current while operating with a supply current of less than 20 μA per amplifier. This amplifier family offers the lowest noise in its power class.

This combination of features makes the AD8505/AD8506/AD8508 amplifiers ideal choices for battery-powered applications because they minimize errors due to power supply voltage variations over the lifetime of the battery and maintain high CMRR even for a rail-to-rail input op amp. Remote battery-powered sensors, handheld instrumentation, consumer equipment, hazard detection (for example, smoke, fire, and gas), and patient monitors can benefit from the features of the AD8505/AD8506/AD8508 amplifiers.

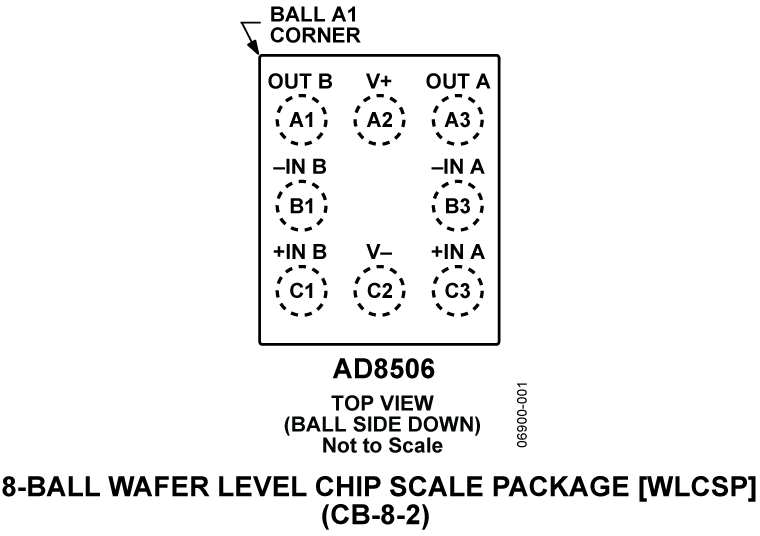

The AD8505/AD8506/AD8508 are specified for both the industrial temperature range of −40°C to +85°C and the extended industrial temperature range of −40°C to +125°C. The AD8505 single ampli-fier is available in a tiny 5-lead SOT-23 package. The AD8506 dual amplifier is available in 8-lead MSOP and 8-ball WLCSP packages. The AD8508 quad amplifier is available in 14-lead TSSOP and 14-ball WLCSP packages. The AD8505/AD8506/AD8508 are members of a growing series of zero crossover distortion op amps offered by Analog Devices, Inc., including the ADA4505-1/ ADA4505-2/ADA4505-4, that operate from a single 1.8 V to 5 V supply or from dual ±0.9 V to ±2.5 V power supplies.

Applications

  • Pressure and position sensors
  • Remote security
  • Bio sensors
  • IR thermometers
  • Battery-powered consumer equipment
  • Hazard detectors
  • Part Models 4
    1ku List Price Starting From $0.73

    close icon

    Documentation

    Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
    AD8506ACBZ-REEL7
    • HTML
    • HTML
    AD8506ARMZ
    • HTML
    • HTML
    AD8506ARMZ-R7
    • HTML
    • HTML
    AD8506ARMZ-REEL
    • HTML
    • HTML

    Filter by Model

    reset

    Reset Filters

    Part Models

    Product Lifecycle

    PCN

    Feb 28, 2012

    - 11_0175

    Shipping Changes for WLCSP Products with 8mm Carrier Tape Width

    Jul 2, 2010

    - 10_0167

    Addition of reel supplier ePAK for WLCSP products at JCAP

    AD8506ACBZ-REEL7

    PRODUCTION

    AD8506ARMZ

    PRODUCTION

    AD8506ARMZ-R7

    PRODUCTION

    AD8506ARMZ-REEL

    PRODUCTION

    Feb 8, 2010

    - 04_0080

    Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.

    AD8506ACBZ-REEL7

    PRODUCTION

    AD8506ARMZ

    PRODUCTION

    AD8506ARMZ-REEL

    PRODUCTION

    Jun 15, 2009

    - 09_0079

    AD8506 Fab transfer to TSMC, Taiwan

    AD8506ACBZ-REEL7

    PRODUCTION

    AD8506ARMZ

    PRODUCTION

    AD8506ARMZ-R7

    PRODUCTION

    AD8506ARMZ-REEL

    PRODUCTION

    Jan 5, 2015

    - 14_0246

    Qualification of ASE Chungli, as an Alternate Assembly Site for Select MSOP Devices

    AD8506ARMZ

    PRODUCTION

    AD8506ARMZ-R7

    PRODUCTION

    AD8506ARMZ-REEL

    PRODUCTION

    May 15, 2012

    - 10_0006

    Halogen Free Material Change for mini SOIC Products

    Filter by Model

    reset

    Reset Filters

    Part Models

    Product Lifecycle

    PCN

    Feb 28, 2012

    - 11_0175

    arrow down

    Shipping Changes for WLCSP Products with 8mm Carrier Tape Width

    Jul 2, 2010

    - 10_0167

    arrow down

    Addition of reel supplier ePAK for WLCSP products at JCAP

    AD8506ACBZ-REEL7

    PRODUCTION

    AD8506ARMZ

    PRODUCTION

    AD8506ARMZ-R7

    PRODUCTION

    AD8506ARMZ-REEL

    PRODUCTION

    Feb 8, 2010

    - 04_0080

    arrow down

    Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.

    AD8506ACBZ-REEL7

    PRODUCTION

    AD8506ARMZ

    PRODUCTION

    AD8506ARMZ-REEL

    PRODUCTION

    Jun 15, 2009

    - 09_0079

    arrow down

    AD8506 Fab transfer to TSMC, Taiwan

    AD8506ACBZ-REEL7

    PRODUCTION

    AD8506ARMZ

    PRODUCTION

    AD8506ARMZ-R7

    PRODUCTION

    AD8506ARMZ-REEL

    PRODUCTION

    Jan 5, 2015

    - 14_0246

    arrow down

    Qualification of ASE Chungli, as an Alternate Assembly Site for Select MSOP Devices

    AD8506ARMZ

    PRODUCTION

    AD8506ARMZ-R7

    PRODUCTION

    AD8506ARMZ-REEL

    PRODUCTION

    May 15, 2012

    - 10_0006

    arrow down

    Halogen Free Material Change for mini SOIC Products

    Software & Part Ecosystem

    Evaluation Kits 1

    reference details image

    EVAL-OPAMP-2

    EVAL-OPAMP-2 Evaluation Board

    zoom

    EVAL-OPAMP-2

    EVAL-OPAMP-2 Evaluation Board

    EVAL-OPAMP-2 Evaluation Board

    Product Detail

    The universal precision op amp evaluation boards have been designed and optimized for many circuit configurations allowing the users to best suit their applications. These boards are all RoHs compliant. See references below on what board to order by lead count and package.

    • EVAL-PRAOPAMP-2CPZ (dual 8-lead LFCSP) CP-8
    • EVAL-PRAOPAMP-2RMZ (dual 8-lead MSOP) RM-8
    • EVAL-PRAOPAMP-2RZ (dual 8-lead SOIC) R-8

    Tools & Simulations 5

    LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

    To launch ready-to-run LTspice demonstration circuits for this part:

    Step 1: Download and install LTspice on your computer.

    Step 2: Click on the link in the section below to download a demonstration circuit.

    Step 3: If LTspice does not automatically open after clicking the link below, you can instead run the simulation by right clicking on the link and selecting “Save Target As.” After saving the file to your computer, start LTspice and open the demonstration circuit by selecting ‘Open’ from the ‘File’ menu.
