Overview

Features and Benefits

  • Wide Bandwidth: 60 MHz at Gain of -1
  • Wide Bandwidth: 33 MHz at Gain of -10
  • Very High Output Slew Rate
  • 20 MHz Full Power Bandwidth typical, 20 V p-p, RL = 500 Ω
  • Fast Settling
  • Differential Gain Error: 0.03% at 4.4 MHz
  • Differential Phase Error: 0.158 at 4.4 MHz
  • Low Quiescent Current: 6.5 mA typical

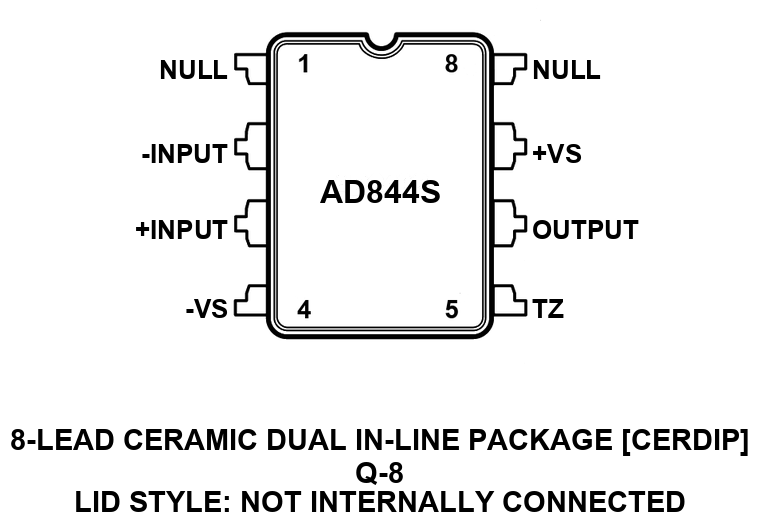

Product Details

The AD844 is a high speed monolithic operational amplifier fabricated using Analog Devices' junction isolated complementary bipolar (CB) process. It combines high bandwidth and very fast large signal response with excellent dc performance. Although optimized for use in current to voltage applications and as an inverting mode amplifier, it is also suitable for use in many non-inverting applications.

The AD844 can be used in place of traditional op amps, but its current feedback architecture results in much better ac performance, high linearity and an exceptionally clean pulse response.

This type of op amp provides a closed-loop bandwidth which is determined primarily by the feedback resistor and is almost independent of the closed-loop gain. The AD844 is free from the slew rate limitations inherent in traditional op amps and other current-feedback op amps. Peak output rate of change can be over 2000 V/µs for a full 20 V output step. Settling time is typically 100 ns to 0.1%, and essentially independent of gain. The AD844 can drive 50 Ohm loads to ±2.5 V with low distortion and is short circuit protected to 80 mA.

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

Tools & Simulations

Design Tools

VRMS/dBm/dBu/dBV calculators

A utility to convert between standard units of power measurement and signal strength.

Design Resources

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well.  "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.

Part Number Material Declaration Reliability Data Pin/Package Drawing CAD Symbols, Footprints & 3D Models
5962L8964402VPA Material Declaration Reliability Data 8 ld CerDIP
5962R8964401VPA Material Declaration Reliability Data 8 ld CerDIP
