AD8398A

PRODUCTION

Single Port VDSL2 Line Driver with Shutdown

Data Sheet (Rev. E) Product Selection Table

Part Models: 2
1ku List Price: Starting From $1.75

Viewing:

Overview

Voltage feedback
Wide output swing
- 18.4 V p-p differential, R_{LOAD, DIFF} = 20 Ω from 12 V supply
High output current
- Linear output current of 450 mA peak
Low distortion
- −65 dBc for Profile 8b at 20.4 dBm
- −55 dBc for Profile 17a at 14.5 dBm
High speed
- 85 MHz bandwidth (A_{V DIFF} = 5)

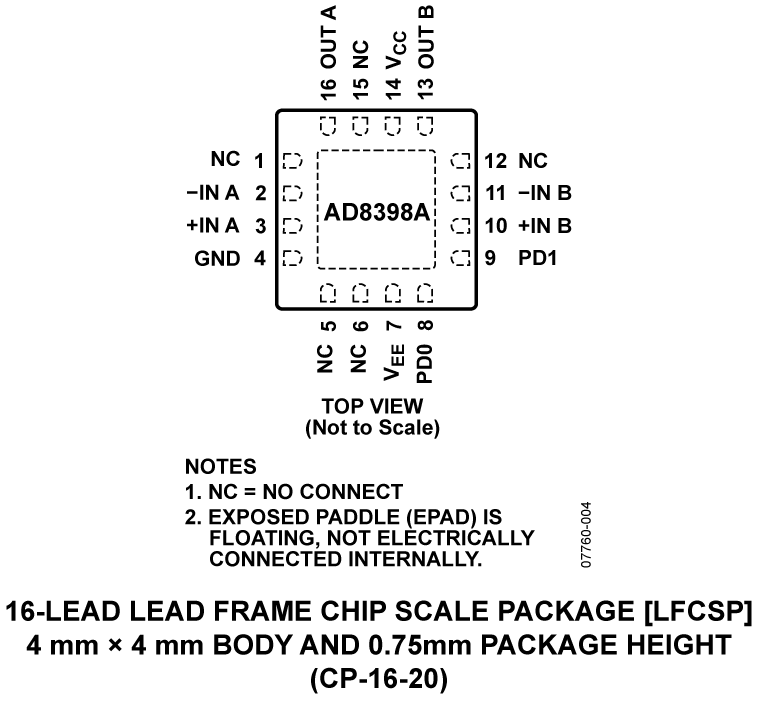

The AD8398A comprises two high speed, voltage feedback operational amplifiers. When configured as a differential line driver, the AD8398A is an ideal choice for ADSL2+, VDSL2, and power line communications (PLC) applications. It has high output current, high bandwidth, and fast slew rate, combined with exceptional multitone power ratio (MTPR) and commonmode stability. The AD8398A is available in a thermally enhanced 4 mm × 4 mm, 16-lead LFCSP.

The AD8398A incorporates power management functionality via two CMOS-compatible control pins, PD0 and PD1. These pins select one of four operating modes: full power, medium power, low power, or complete power-down. In the power-down mode, the quiescent current drops to 0.7 mA.

The AD8398A operates in the industrial temperature range of −40°C to +85°C.

Applications

ADSL2+/VDSL2 CO/CPE line drivers

PLC line drivers

Consumer xDSL modems

Twisted pair line drivers

Part Models: 2
1ku List Price: Starting From $1.75

Documentation

Data Sheet 1

AD8398A: Single Port VDSL2 Line Driver with Shutdown Data Sheet (Rev.E) 03/23/2010

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD8398AACPZ-R7	16-Lead LFCSP (4mm x 4mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8398AACPZ-RL	16-Lead LFCSP (4mm x 4mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.
