AD8321

Obsolete

Gain Programmable CATV Line Driver

Data Sheet (Rev. A) Product Selection Table

Viewing:

Overview

Linear in dB Gain Response Over >53 dB Range
Drives Low Distortion >11 dBm Signal into 75 Ω Load: –53 dBc SFDR at 42 MHz
Very Low Output Noise Level
Maintains Constant 75 Ω Output Impedance
Power-Up and Power-Down Condition
No Line Transformer Required

Upper Bandwidth: 235 MHz (Min Gain)
9 V Single Supply Operation
Power-Down Functionality
Supports SPI Interface
Low Cost

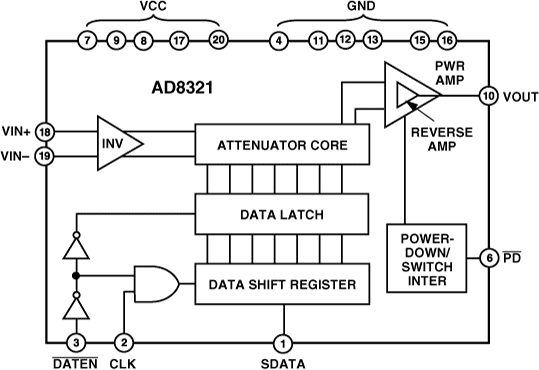

The AD8321 is a low cost digitally controlled variable gain amplifier optimized for coaxial line driving applications such as cable modems that are designed to the DOCSIS* (upstream) standard. An 8-bit serial word determines the desired output gain over a 53.4 dB range, resulting in gain changes of 0.75 dB/LSB.

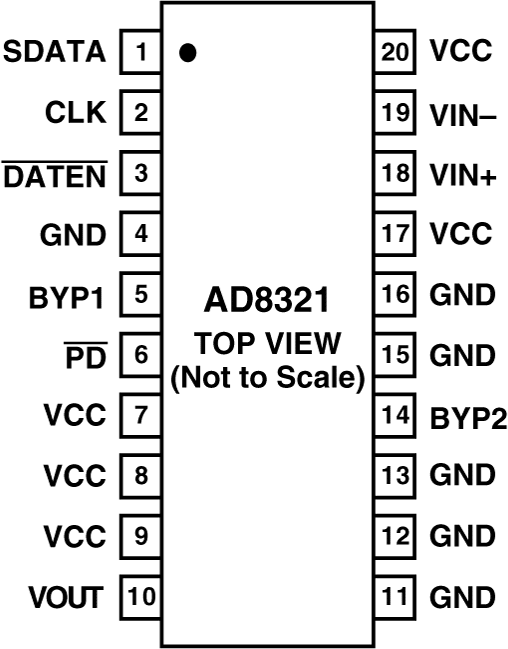

The AD8321 is packaged in a low cost 20-lead SOIC, operates from a single +9 V supply, and has an operational temperature range of -40°C to +85°C.

An evaluation board is available for this product and may be ordered using the following product number: AD8321-EVAL. Schematic and layout for this evaluation board is contained in the product datasheet.
