AD8276

Low Power, Wide Supply Range, Low Cost Unity-Gain Difference Amplifier

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 13
1ku List Price Starting From $1.12
Features
  • Wide input range beyond supplies
  • Rugged input overvoltage protection
  • Low supply current: 200 μA maximum per channel
  • Low power dissipation: 0.54 mW at VS = 2.7 V
  • Bandwidth: 550 kHz
  • CMRR: 86 dB minimum, dc to 10 kHz
  • System offset voltage: ±2 μV/°C maximum (B Grade)
  • Low gain drift: 1 ppm/°C maximum (B Grade)
  • Enhanced slew rate: 1.1 V/μs
  • Wide power supply range
    • Single supply: 2.0 V to 36 V
    • Dual supplies: ±2 V to ±18 V
Additional Details
show more Icon

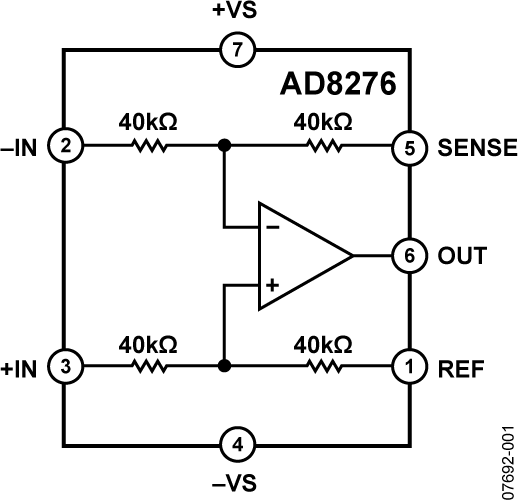

The AD8276/AD8277 are general-purpose, unity-gain difference amplifiers intended for precision signal conditioning in power critical applications that require both high performance and low power. They provide exceptional 86 dB common-mode rejection ratio (CMRR) and high bandwidth while amplifying signals well beyond the supply rails. The on-chip resistors are laser trimmed for gain drift of 1 ppm/°C and high CMRR. The AD8276/AD8277 also have extremely low gain drift vs. temperature.

The common-mode range of the amplifiers extends to almost double the supply voltage, making these amplifiers ideal for single-supply applications that require a high common-mode voltage range. The internal resistors and electrostatic discharge (ESD) circuitry at the inputs also provide overvoltage protection to the op amps.

The AD8276/AD8277 are unity-gain stable. Although they are optimized for use as difference amplifiers, they can also be connected in high precision, single-ended configurations with G = −1, +1, or +2. The AD8276/AD8277 provide an integrated precision solution that has smaller size, lower cost, and improved performance than a discrete alternative.

The AD8276/AD8277 operate on single supplies (2.0 V to 36 V) or dual supplies (±2 V to ±18 V). The maximum quiescent supply current is 200 μA per channel, which is ideal for battery-operated and portable systems.

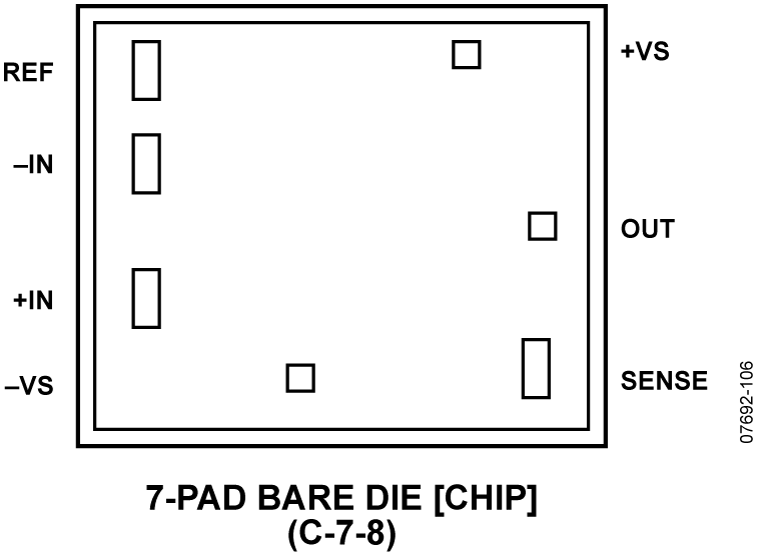

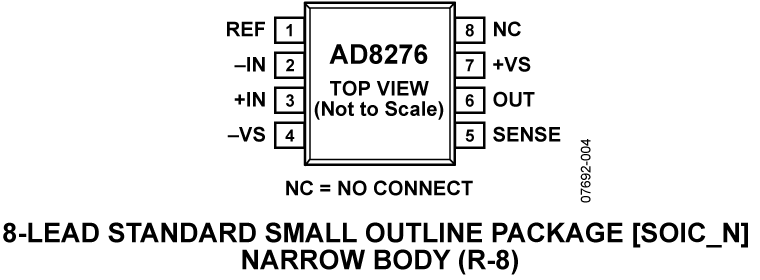

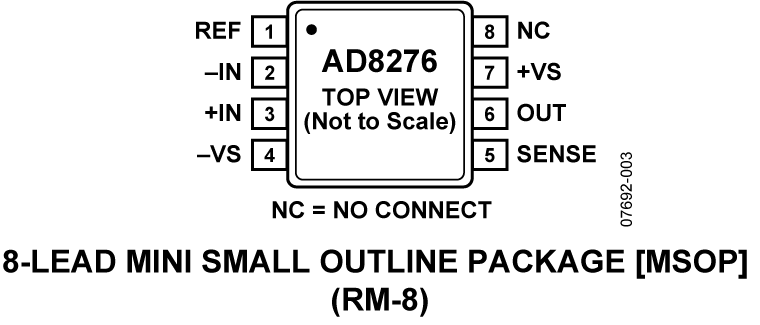

The AD8276 is available in the space-saving 8-lead mini small outline package (MSOP) and the standard small outline (SOIC) package, as well as in die form, and the AD8277 is offered in a 14-lead SOIC package. Both are specified for performance over the industrial temperature range of −40°C to +85°C and are fully RoHS compliant.

Applications

  • Voltage measurement and monitoring
  • Current measurement and monitoring
  • Differential output instrumentation amplifier
  • Portable, battery-powered equipment
  • Test and measurement
Part Models 13
1ku List Price Starting From $1.12

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD8276-CHIPS-WP
  • HTML
  • HTML
AD8276ARMZ
  • HTML
  • HTML
AD8276ARMZ-R7
  • HTML
  • HTML
AD8276ARMZ-RL
  • HTML
  • HTML
AD8276ARZ
  • HTML
  • HTML
AD8276ARZ-R7
  • HTML
  • HTML
AD8276ARZ-RL
  • HTML
  • HTML
AD8276BRMZ
  • HTML
  • HTML
AD8276BRMZ-R7
  • HTML
  • HTML
AD8276BRMZ-RL
  • HTML
  • HTML
AD8276BRZ
  • HTML
  • HTML
AD8276BRZ-R7
  • HTML
  • HTML
AD8276BRZ-RL
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 4, 2023

- 22_0142

Qualification of an Alternate Wafer Fab for High Voltage Bipolar Products (HVBIP) to Analog Devices, Inc. Wilmington MA

AD8276-CHIPS-WP

PRODUCTION

AD8276ARMZ

PRODUCTION

AD8276ARMZ-R7

PRODUCTION

AD8276ARMZ-RL

PRODUCTION

AD8276ARZ

PRODUCTION

AD8276ARZ-R7

PRODUCTION

AD8276ARZ-RL

PRODUCTION

AD8276BRMZ

PRODUCTION

AD8276BRMZ-R7

PRODUCTION

AD8276BRMZ-RL

PRODUCTION

AD8276BRZ

PRODUCTION

AD8276BRZ-R7

PRODUCTION

AD8276BRZ-RL

PRODUCTION

Mar 22, 2021

- 21_0001

Addition of Amkor Philippines as an Alternate Site for Singulated MSOP and MSOP_EP

AD8276ARMZ

PRODUCTION

AD8276ARMZ-R7

PRODUCTION

AD8276ARMZ-RL

PRODUCTION

AD8276BRMZ

PRODUCTION

AD8276BRMZ-R7

PRODUCTION

AD8276BRMZ-RL

PRODUCTION

Jan 5, 2015

- 14_0246

Qualification of ASE Chungli, as an Alternate Assembly Site for Select MSOP Devices

AD8276ARMZ

PRODUCTION

AD8276ARMZ-R7

PRODUCTION

AD8276ARMZ-RL

PRODUCTION

AD8276BRMZ

PRODUCTION

AD8276BRMZ-R7

PRODUCTION

AD8276BRMZ-RL

PRODUCTION

May 15, 2012

- 10_0006

Halogen Free Material Change for mini SOIC Products

AD8276ARMZ

PRODUCTION

AD8276ARMZ-R7

PRODUCTION

AD8276ARMZ-RL

PRODUCTION

AD8276BRMZ

PRODUCTION

AD8276BRMZ-R7

PRODUCTION

AD8276BRMZ-RL

PRODUCTION

Nov 23, 2010

- 10_0004

Halogen Free Material Change for SOIC Narrow Body Products Assembled at Amkor

AD8276ARZ

PRODUCTION

AD8276ARZ-R7

PRODUCTION

AD8276ARZ-RL

PRODUCTION

AD8276BRZ

PRODUCTION

AD8276BRZ-R7

PRODUCTION

AD8276BRZ-RL

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

Apr 4, 2023

- 22_0142

arrow down

Qualification of an Alternate Wafer Fab for High Voltage Bipolar Products (HVBIP) to Analog Devices, Inc. Wilmington MA

AD8276-CHIPS-WP

PRODUCTION

AD8276ARMZ

PRODUCTION

AD8276ARMZ-R7

PRODUCTION

AD8276ARMZ-RL

PRODUCTION

AD8276ARZ

PRODUCTION

AD8276ARZ-R7

PRODUCTION

AD8276ARZ-RL

PRODUCTION

AD8276BRMZ

PRODUCTION

AD8276BRMZ-R7

PRODUCTION

AD8276BRMZ-RL

PRODUCTION

AD8276BRZ

PRODUCTION

AD8276BRZ-R7

PRODUCTION

AD8276BRZ-RL

PRODUCTION

Mar 22, 2021

- 21_0001

arrow down

Addition of Amkor Philippines as an Alternate Site for Singulated MSOP and MSOP_EP

AD8276ARMZ

PRODUCTION

AD8276ARMZ-R7

PRODUCTION

AD8276ARMZ-RL

PRODUCTION

AD8276BRMZ

PRODUCTION

AD8276BRMZ-R7

PRODUCTION

AD8276BRMZ-RL

PRODUCTION

Jan 5, 2015

- 14_0246

arrow down

Qualification of ASE Chungli, as an Alternate Assembly Site for Select MSOP Devices

AD8276ARMZ

PRODUCTION

AD8276ARMZ-R7

PRODUCTION

AD8276ARMZ-RL

PRODUCTION

AD8276BRMZ

PRODUCTION

AD8276BRMZ-R7

PRODUCTION

AD8276BRMZ-RL

PRODUCTION

May 15, 2012

- 10_0006

arrow down

Halogen Free Material Change for mini SOIC Products

AD8276ARMZ

PRODUCTION

AD8276ARMZ-R7

PRODUCTION

AD8276ARMZ-RL

PRODUCTION

AD8276BRMZ

PRODUCTION

AD8276BRMZ-R7

PRODUCTION

AD8276BRMZ-RL

PRODUCTION

Nov 23, 2010

- 10_0004

arrow down

Halogen Free Material Change for SOIC Narrow Body Products Assembled at Amkor

AD8276ARZ

PRODUCTION

AD8276ARZ-R7

PRODUCTION

AD8276ARZ-RL

PRODUCTION

AD8276BRZ

PRODUCTION

AD8276BRZ-R7

PRODUCTION

AD8276BRZ-RL

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Reference Designs

Reference Designs 1

EVAL-CN0352-EB1Z_IO, Li-ion Battery Charging and Discharging Controlling Circuit

Cost Effective, Multichannel Lithium Ion Battery Testing System

zoomopens a dialog

CN0352

Cost Effective, Multichannel Lithium Ion Battery Testing System

CN0352

Circuits from the lab

tooltip Info:Circuits from the lab
Cost Effective, Multichannel Lithium Ion Battery Testing System

Features and Benefits

  • Expandable 8-Channel Lithium Ion Battery Tester
  • Integrated Fast Charging/Discharging Battery Management
  • Precision Analog Microcontroller for Data Acquisition and Control
View Detailed Reference Design external link
