Overview
Features and Benefits
- High Speed
- 50 MHz Unity Gain Stable Operation
- 300 V/ms Slew Rate
- 120 ns Settling Time
- Drives Unlimited Capacitive Loads
- Excellent Video Performance
- 0.04% Differential Gain @ 4.4 MHz
- 0.198% Differential Phase @ 4.4 MHz
- Good DC Performance
- 2 mV max Input Offset Voltage
- 15 mV/°C Input Offset Voltage Drift
- Available in Tape and Reel in Accordance with
- EIA-481A Standard
- Low Power
- Only 10 mA Total Supply Current for Both Amplifiers
- 5 V to 15 V Supplies
Product Details
The AD827 is a dual version of Analog Device's industry-standard AD847 op amp. Like the AD847, it provides high speed, low power performance at low cost. The AD827 achieves a 300 V/µs slew rate and 50 MHz unity-gain bandwidth while consuming only 100 mW when operating from ±5 volt power supplies. Performance is specified for operation using ±5 V to ±15 V power supplies.
The AD827 offers an open-loop gain of 3,500 V/V into 500 Ohm loads. It also features a low input voltage noise of 15 nV/(root)Hz, and a low input offset voltage of 2 mV maximum. Common-mode rejection ratio is a minimum of 80 dB. Power supply rejection ratio is maintained at better than 20 dB with input frequencies as high as 1 MHz, thus minimizing noise feedthrough from switching power supplies.
The AD827 is also ideal for use in demanding video applications, driving coaxial cables with less than 0.04% differential gain and 0.19° differential phase errors for 643 mV p-p into a 75 Ohm reverse terminated cable.
The AD827 is also useful in multichannel, high speed data conversion systems where its fast (120 ns to 0.1%) settling time is of importance. In such applications, the AD827 serves as an input buffer for 8-bit to 10-bit A/D converters and as an output amplifier for high speed D/A converters.
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
-
MT-053: Op Amp Distortion: HD, THD, THD + N, IMD, SFDR, MTPR2/14/2015
-
MT-052: Op Amp Noise Figure: Don't Be Misled2/14/2015
-
MT-050: Op Amp Total Output Noise Calculations for Second-Order System2/14/2015
-
MT-049: Op Amp Total Output Noise Calculations for Single-Pole System2/14/2015
-
MT-048: Op Amp Noise Relationships: 1/f Noise, RMS Noise, and Equivalent Noise Bandwidth2/14/2015
-
MT-047: Op Amp Noise2/14/2015
-
MT-060: Choosing Between Voltage Feedback and Current Feedback Op Amps2/14/2015
-
MT-058: Effects of Feedback Capacitance on VFB and CFB Op Amps2/14/2015
-
MT-056: High Speed Voltage Feedback Op Amps2/3/2009
-
MT-032: Ideal Voltage Feedback (VFB) Op Amp12/11/2008
-
High Speed Amplifiers Selection Table2/27/2008
Tools & Simulations
SPICE Model
AD827 SPICE Macro Model
Design Tool
Analog Filter Wizard
Use the Analog Filter Wizard to design low-pass, high-pass, or band-pass filters with actual op amps in minutes. As you progress through the design process, you can observe the characteristics of your filter design from ideal specifications to real world circuit behavior. Quickly evaluate the tradeoffs in op amp specifications - including gain-bandwidth, noise, and supply current – to determine the best filter design for your requirements.
Analog Photodiode Wizard
Use Photodiode Wizard to design a transimpedance amplifier circuit to interface with a photodiode. Select a photodiode from the library included in the tool, or enter custom photodiode specifications. Quickly observe tradeoffs between Bandwidth, Peaking (Q), and ENOB/SNR. Modify circuit parameters, and immediately see results in plots for pulse response, frequency response, and noise gain.
VRMS/dBm/dBu/dBV calculators
A utility to convert between standard units of power measurement and signal strength.
Power Dissipation vs Die Temp
This tool estimates die temperature and power dissipation based on the supply voltages, ambient temperature, load characteristics, and package thermal data.
Design Resources
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal.View our quality and reliability program and certifications for more information.
| Part Number | Material Declaration | Reliability Data | Pin/Package Drawing | CAD Symbols, Footprints & 3D Models |
|---|---|---|---|---|

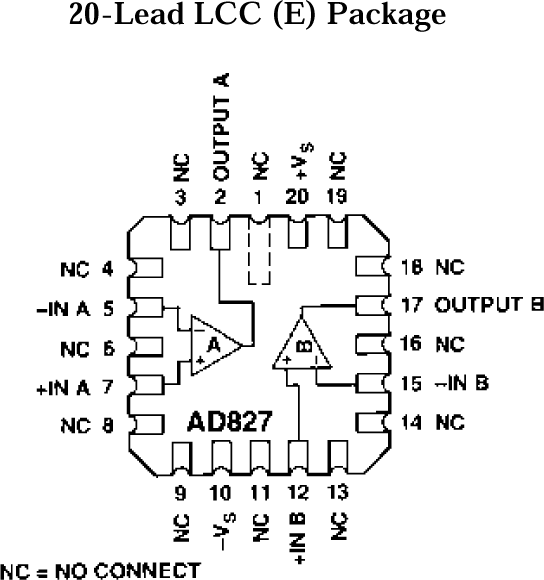

| 5962-9211701M2A | Material Declaration | Reliability Data | 20 ld LCC | |
| 5962-9211701MPA | Material Declaration | Reliability Data | 8-Lead CerDIP | |
| AD827AQ | Material Declaration | Reliability Data | 8-Lead CerDIP | |
| AD827JCHIPS | Material Declaration | Reliability Data | none available | |

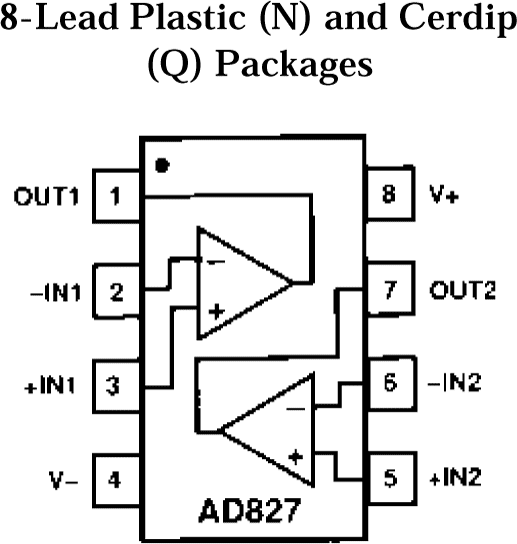

| AD827JNZ | Material Declaration | Reliability Data | 8-Lead PDIP | |

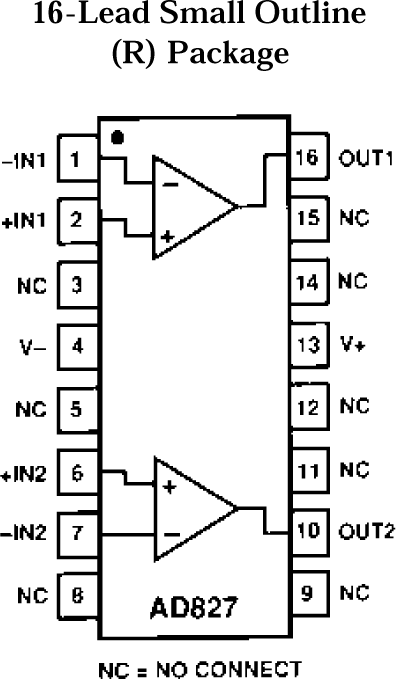

| AD827JRZ-16 | Material Declaration | Reliability Data | 16-Lead SOIC Wide | |
| AD827JRZ-16-REEL | Material Declaration | Reliability Data | 16-Lead SOIC Wide | |
| AD827JRZ-16-REEL7 | Material Declaration | Reliability Data | 16-Lead SOIC Wide | |
| AD827SCHIPS | Material Declaration | Reliability Data | none available | |
| AD827SE/883B | Material Declaration | Reliability Data | 20 ld LCC | |
| AD827SQ | Material Declaration | Reliability Data | 8-Lead CerDIP | |
| AD827SQ/883B | Material Declaration | Reliability Data | 8-Lead CerDIP | |
| Wafer Fabrication Data |
