AD8130

PRODUCTION

Low Cost 270 MHz Differential Receiver Amplifier

Data Sheet (Rev. C) Product Selection Table

Part Models: 7
1ku List Price: Starting From $1.85

Viewing:

Overview

High Speed
AD8130: 270 MHz, 1090 V/µs @ G = +1
AD8129: 200 MHz, 1060 V/µs @ G = +10
High CMRR
94 dB min, dc to 100 kHz
80 dB min @ 2 MHz
70 dB @ 10 MHz
Low noise
AD8130: 12.5 nV/√Hz
AD8129: 4.5 nV/√Hz

High input impedance: 1 MΩ differential
Input common-mode range ±10.5 V
Low distortion, 1 V p-p @ 5 MHz:
AD8130, -79 dBc worst harmonic @ 5 MHz
AD8129, -74 dBc worst harmonic @ 5 MHz
User-adjustable gain
No external components for G = +1
Power supply range +4.5 V to ±12.6 V
Power-down

The AD8129/AD8130 are designed as receivers for the transmission of high speed signals over twisted-pair cables to work with the AD8131 or AD8132 drivers. Either can be used for analog or digital video signals and for high speed data transmission.

The AD8129/AD8130 are differential-to-single-ended amplifiers with extremely high CMRR at high frequency. Therefore, they can also be effectively used as high speed instrumentation amps or for converting differential signals to single-ended signals.

The AD8129 is a low noise, high gain (10 or greater) version intended for applications over very long cables, where signal attenuation is significant. The AD8130 is stable at a gain of 1 and can be used for applications where lower gains are required. Both have user-adjustable gain to help compensate for losses in the transmission line. The gain is set by the ratio of two resistor values. The AD8129/AD8130 have very high input impedance on both inputs, regardless of the gain setting.

The AD8129/AD8130 have excellent common-mode rejection (70 dB @ 10 MHz), allowing the use of low cost, unshielded twisted-pair cables without fear of corruption by external noise sources or crosstalk. The AD8129/AD8130 have a wide power supply range from single +5 V to ±12 V, allowing wide common-mode and differential-mode voltage ranges while maintaining signal integrity. The wide common-mode voltage range enables the driver-receiver pair to operate without isolation transformers in many systems where the ground potential difference between drive and receive locations is many volts. The AD8129/AD8130 have considerable cost and performance improvements over op amps and other multiamplifier receiving solutions.

Applications

High speed differential line receivers
Differential-to-single-ended converters
High speed instrumentation amps
Level shifting

Part Models: 7
1ku List Price: Starting From $1.85

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models

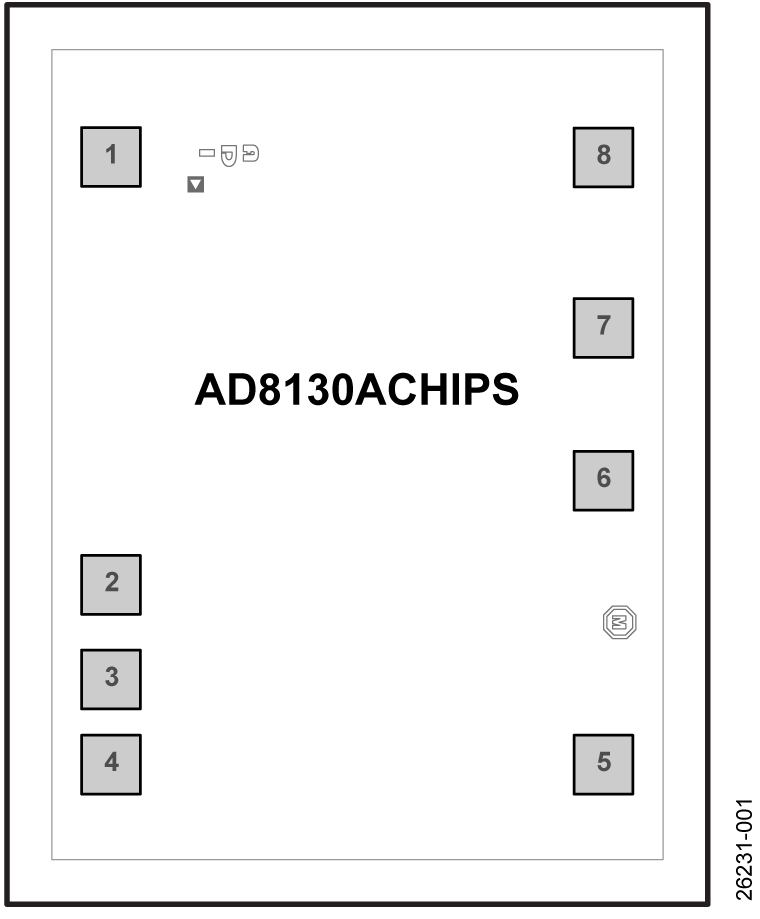

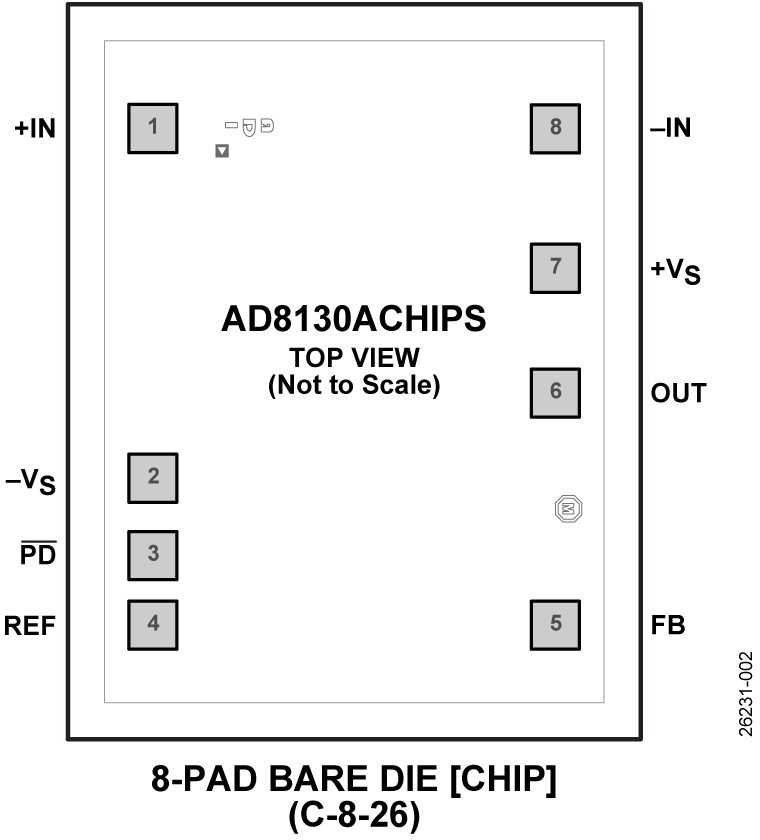

AD8130ACHIPS	CHIPS OR DIE	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8130ARMZ	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8130ARMZ-REEL	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8130ARMZ-REEL7	8-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8130ARZ	8-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8130ARZ-REEL	8-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD8130ARZ-REEL7	8-Lead SOIC	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

May 15, 2012 - 10_0006 Halogen Free Material Change for mini SOIC Products
		PCN10_0006_Form Material_Report Qualification Report Summary Qualification Report Summary
AD8130ARMZ	PRODUCTION
AD8130ARMZ-REEL	PRODUCTION
AD8130ARMZ-REEL7	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

SPICE Model 1

AD8130 SPICE Macro Model

Evaluation Kits

AD8130 Evaluation Boards

Buy Now View Details

Product Details

These evaluation boards are designed to help users evaluate the AD8130. The evaluation board is a bare board; there are no components or amplifiers soldered to the board. These parts must be obtained separately from the table below or on the product page. Free samples may also be requested. The unpopulated board enables users to quickly customize and prototype a variety of op amp circuits, which minimizes risk and reduces time to market.

The User Guide contains all the required documentation to build the board, including schematics, assembly drawing, and Bill of Materials.

Resources

UG-133: Differential Receiver Evaluation Boards for Amplifiers AD8129 and AD8130 Offered in 8-Lead SOIC and MSOP Packages
4/20/2010
