Features and Benefits
- Multiple pins/software programmable input ranges:
5 V, 10 V, ±5 V, ±10 V
- Pins or serial SPI® compatible input ranges/mode selection
- iCMOS® process technology
- 14-bit resolution with no missing codes
- INL: ±0.3 LSB typ, ±1 LSB max (±61 ppm of FSR)
- SNR: 85 dB @ 2 kHz
- See data sheet for additional features

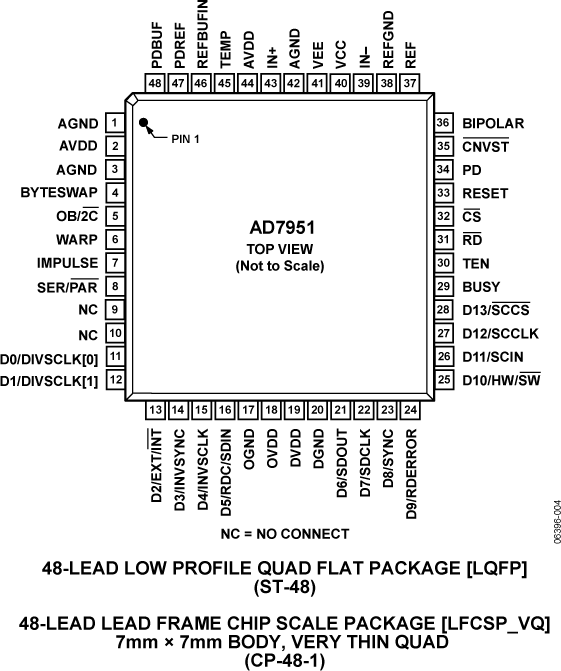

The AD7951 is a 14-bit, charge redistribution, successive approximation register (SAR) architecture analog-to-digital converter (ADC) fabricated on Analog Devices, Inc.'s iCMOS high voltage process. The device is configured through hardware or via a dedicated write only serial configuration port for input range and operating mode. The AD7951 contains a high speed 14-bit sampling ADC, an internal conversion clock, an internal reference (and buffer), error correction circuits, and both serial and parallel system interface ports. A falling edge on CNVST samples the analog input on IN+ with respect to a ground sense, IN−. The AD7951 features four different analog input ranges and three different sampling modes: warp mode for the fastest throughput, normal mode for the fastest asynchronous throughput, and impulse mode where power is scaled with throughput. Operation is specified from −40°C to +85°C.
- Process control
- Medical instruments
- High speed data acquisition
- Digital signal processing
- Spectrum analysis
Markets and Technologies
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)
The EVAL-AD7951EDZ is a fully featured evaluation Kit for the AD7951. This board operates in stand alone mode or in conjunction with the Converter Evaluation and Development board, EVAL-CED1Z . When operated with the Converter Evaluation and Development board, software is provided enabling the user to perform detailed analysis of the ADC's performance. This software includes the technical note describing the operation and set up of the evaluation board in standalone operation or when operated with the Converter Evaluation and Development board.
AD7951 Companion Parts
Recommended Driver Amplifiers
- For low noise, low frequency, ultralow distortion and +/-18V supplies: AD8597, ADA4627-1.
- For low noise, high frequency and +/ 12V supplies: AD8021, ADA4898-1.
- For low noise, low frequency, low distortion and 12V supplies: ADA4841-1.
- For low bias current, low frequency and +/-13V supplies: AD8610.
Recommended External Voltage References
