Features and Benefits
- 16-channel, dual, simultaneously sampled inputs
- Independently selectable channel input ranges
- True bipolar: ±10 V, ±5 V, ±2.5 V
- Single 5 V analog supply and 2.3 V to 3.6 V VDRIVE supply
- Fully integrated data acquisition solution
- Analog input clamp protection
- Input buffer with 1 MΩ analog input impedance
- First-order antialiasing analog filter
- On-chip accurate reference and reference buffer
- Dual 14-bit SAR ADC
- Throughput rate: 2× 1 MSPS per channel pair
- Oversampling capability with digital filter
- Flexible sequencer with burst mode
- Flexible parallel/serial interface
- SPI/QSPI/MICROWIRE/DSP compatible
- Optional CRC error checking
- Hardware/software configuration
- 85.3 dB typical SNR at 500 kSPS (2× oversampling)
- 85 dB typical SNR at 1 MSPS
- −103 dB typical THD at ±10 V range
- ±0.3 LSB INL (typical), ±0.99 LSB DNL (maximum)
- 8 kV ESD analog input pins only
- On-chip self detect function
- 80-lead LQFP package
The AD7617 is a 14-bit, DAS that supports dual simultaneous sampling of 16 channels. The AD7617 operates from a single +5 V supply and can accommodate ±10 V, ±5 V, and ±2.5 V true bipolar input signals while sampling at throughput rates up to 1 MSPS per channel pair with 85 dB signal-to-noise ratio (SNR). Higher SNR performance can be achieved with the on-chip oversampling mode (85.3 dB for an oversampling ratio (OSR) of 2).
The input clamp protection circuitry can tolerate voltages up to ±21 V. The AD7617 has 1 MΩ analog input impedance, regardless of sampling frequency. The single-supply operation, on-chip filtering, and high input impedance eliminate the need for driver op amps and external bipolar supplies.
The device contains analog input clamp protection, a dual, 14-bit charge redistribution successive approximation register (SAR) analog-to-digital converter (ADC), a flexible digital filter, a 2.5 V reference and reference buffer, and high speed serial and parallel interfaces. The AD7617 is serial peripheral interface (SPI)/QSPI™/DSP/MICROWIRE compatible.
- Power line monitoring
- Protective relays
- Multiphase motor control
- Instrumentation and control systems
- Data acquisition systems (DASs)
Product Lifecycle Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Evaluation Kits (1)

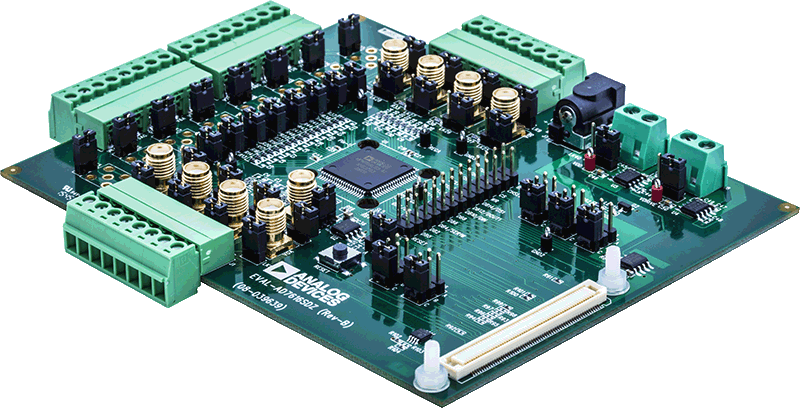

The EVAL-AD7616SDZ/EVAL-AD7616-PSDZ is a single, full featured evaluation board designed to easily evaluate all features of both the AD7616 and AD7616-P analog-to-digital converters (ADCs). The evaluation board can be controlled by the EVALSDP-CB1Z via the 120-way high speed system demonstration platform (SDP-B) connector (J10). The EVAL-SDP-CB1Z SDP-B board controls the evaluation board through a USB port of a PC using the evaluation board software, which is available for download from the AD7616 and AD7616-P product pages.
Complete specifications for the AD7616 and AD7616-P devices are provided in the AD7616 and AD7616-P data sheets and should be consulted in conjunction with this user guide when using the evaluation boards. Full details on the EVAL-SDP-CB1Z are available on the SDP-B product page.
