AD7414

±0.5°C Accurate, 10-Bit Digital Temperature Sensors in SOT-23

Show More showmore-icon

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 7
1ku List Price Starting From $1.26
Features
  • 10-bit temperature-to-digital converter
  • Temperature range: −40°C to +125°C
  • Typical accuracy of ±0.5°C at +40°C
  • SMBus/I2C®-compatible serial interface
  • 3 μA power-down current
  • Temperature conversion time: 29 μs typ

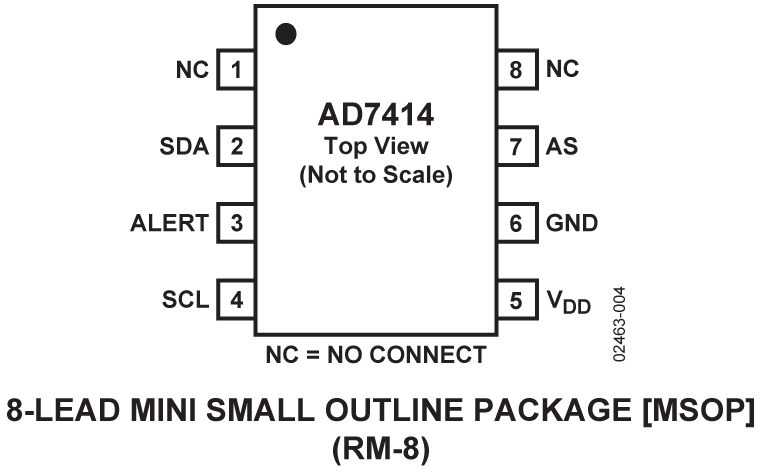

  • Space-saving 6-lead (AD7414) and 5-lead (AD7415)
  • SOT-23 packages
  • Pin selectable addressing via AS
  • Overtemperature indicator (AD7414 Only)
  • SMBus alert function (AD7414 only)
  • 4 versions allow 8 I2C addresses (AD7414)
  • 2 versions allow 6 I2C addresses (AD7415)
Additional Details
show more Icon

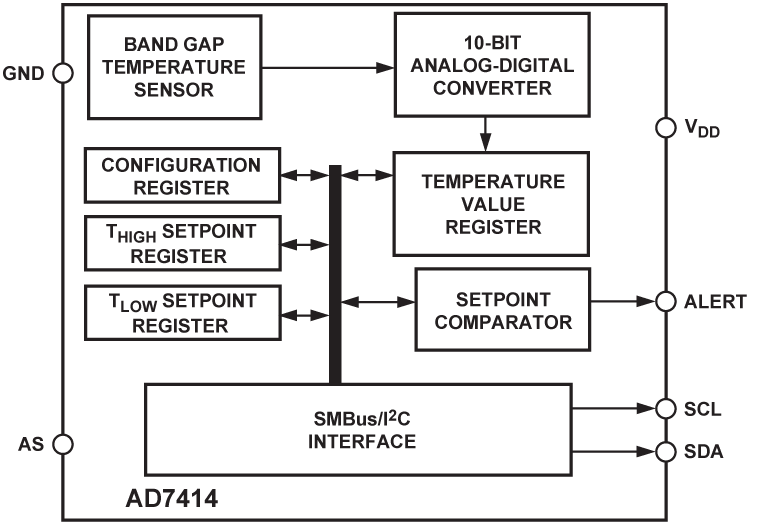

The AD7414/AD7415 are complete temperature monitoring systems in 6-lead and 5-lead SOT-23 packages. They contain a band gap temperature sensor and a 10-bit ADC to monitor and digitize the temperature reading to a resolution of 0.25°C.

The AD7414/AD7415 provide a 2-wire serial interface that is compatible with SMBus and I2C interfaces. The parts come in three versions: the AD7414/AD7415-0, AD7414/AD7415-1, and AD7414-3. The AD7414/AD7415-0 and AD7414/AD7415-1 versions provide a choice of three different SMBus addresses for each version. All four AD7414 versions give the possibility of eight different I2C addresses while the two AD7415 versions allow up to six I2C addresses to be used.

The AD7414/AD7415’s 2.7 V supply voltage, low supply current, serial interface, and small package size make them ideal for a variety of applications, including personal computers, office equipment, cellular phones, and domestic appliances.

In the AD7414, on-chip registers can be programmed with high and low temperature limits, and an open-drain overtemperature indicator output (ALERT) becomes active when a programmed limit is exceeded. A configuration register allows programming of the state of the ALERT output (active high or active low). This output can be used as an interrupt or as an SMBus alert.

APPLICATIONS

  • Hard disk drives and personal computers
  • Electronic test equipment and office equipment
  • Domestic appliances and cellular phones
  • Process control
Part Models 7
1ku List Price Starting From $1.26

close icon
Documentation

Documentation

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
AD7414ARMZ-0
  • HTML
  • HTML
AD7414ARMZ-0REEL7
  • HTML
  • HTML
AD7414ARTZ-0500RL7
  • HTML
  • HTML
AD7414ARTZ-0REEL7
  • HTML
  • HTML
AD7414ARTZ-1500RL7
  • HTML
  • HTML
AD7414ARTZ-1REEL7
  • HTML
  • HTML
AD7414ARTZ-3REEL7
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

May 15, 2012

- 10_0006

Halogen Free Material Change for mini SOIC Products

Oct 18, 2010

- 10_0301

Addition of t7 specification to AD7414/AD7415 datasheet

AD7414ARMZ-0REEL7

PRODUCTION

AD7414ARTZ-0500RL7

PRODUCTION

AD7414ARTZ-0REEL7

PRODUCTION

AD7414ARTZ-1500RL7

PRODUCTION

AD7414ARTZ-1REEL7

PRODUCTION

AD7414ARTZ-3REEL7

PRODUCTION

Aug 16, 2017

- 16_0291

CANCELLED: Addition of Amkor Philippines as Alternate Assembly Site for 5L, 6L and 8L SOT23 Chip-On-Lead Packages

AD7414ARTZ-0500RL7

PRODUCTION

AD7414ARTZ-0REEL7

PRODUCTION

AD7414ARTZ-1500RL7

PRODUCTION

AD7414ARTZ-1REEL7

PRODUCTION

AD7414ARTZ-3REEL7

PRODUCTION

Feb 8, 2010

- 04_0080

Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.

Feb 4, 2010

- 10_0009

Halogen Free Material Change for SOT_23 Products

AD7414ARTZ-0500RL7

PRODUCTION

AD7414ARTZ-0REEL7

PRODUCTION

AD7414ARTZ-1500RL7

PRODUCTION

AD7414ARTZ-1REEL7

PRODUCTION

AD7414ARTZ-3REEL7

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

May 15, 2012

- 10_0006

arrow down

Halogen Free Material Change for mini SOIC Products

Oct 18, 2010

- 10_0301

arrow down

Addition of t7 specification to AD7414/AD7415 datasheet

AD7414ARMZ-0REEL7

PRODUCTION

AD7414ARTZ-0500RL7

PRODUCTION

AD7414ARTZ-0REEL7

PRODUCTION

AD7414ARTZ-1500RL7

PRODUCTION

AD7414ARTZ-1REEL7

PRODUCTION

AD7414ARTZ-3REEL7

PRODUCTION

Aug 16, 2017

- 16_0291

arrow down

CANCELLED: Addition of Amkor Philippines as Alternate Assembly Site for 5L, 6L and 8L SOT23 Chip-On-Lead Packages

AD7414ARTZ-0500RL7

PRODUCTION

AD7414ARTZ-0REEL7

PRODUCTION

AD7414ARTZ-1500RL7

PRODUCTION

AD7414ARTZ-1REEL7

PRODUCTION

AD7414ARTZ-3REEL7

PRODUCTION

Feb 8, 2010

- 04_0080

arrow down

Qualification of the 8" C6 and Q Wafer Fab Processes at Analog Devices, Limerick, Ireland.

Feb 4, 2010

- 10_0009

arrow down

Halogen Free Material Change for SOT_23 Products

AD7414ARTZ-0500RL7

PRODUCTION

AD7414ARTZ-0REEL7

PRODUCTION

AD7414ARTZ-1500RL7

PRODUCTION

AD7414ARTZ-1REEL7

PRODUCTION

AD7414ARTZ-3REEL7

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Can't find the software or driver you need?

Request a Driver/Software
Evaluation Kit

Evaluation Kits 1

EVAL-AD7414

AD7414 Evaluation Board

zoom

EVAL-AD7414

AD7414 Evaluation Board

AD7414 Evaluation Board

Product Detail

The AD7414/AD7415 evaluation board allows the AD7414/AD7415 digital temperature sensor to be quickly and easily evaluated using a PC. Using the evaluation board and its accompanying software, the AD7414/AD7415 evaluation board can be interfaced to a PC through its USB connection. The drivers will work on 32-bit Windows 7 machines.


Please note: This Evaluation software does not run on Windows 8 or Windows 10 (USB driver is non-compliant with OS >Windows 7).
