AD712

Precision, Low Cost, High Speed, BiFET Dual Op Amp

Show More showmore-icon

warning : NOT RECOMMENDED FOR NEW DESIGNS tooltip
warning : NOT RECOMMENDED FOR NEW DESIGNS tooltip
Viewing: Part Details
arrow-icon

Not the part you were looking for?

viewall Go to Product Selection Table
file View Data Sheet (Rev.I)
Documentation View All Documentation
SPICE Model AD712 SPICE Macro Model Rev. B, 4/92 Download 2.89 K SPICE Model AD712A SPICE Macro Model Rev. B, 4/92 Download 3.05 K SPICE Model AD712B SPICE Macro Model Rev. B, 4/92 Download 3.05 K SPICE Model AD712C SPICE Macro Model Rev. B, 4/92 Download 3.05 K SPICE Model AD712J SPICE Macro Model Rev. B, 4/92 Download 3.06 K LTspice AD712 - Operational Amplifiers (Op Amps) Download 1.27 KB
Part Models 12
1ku List Price Starting From $2.09
Features
  • Enhanced replacement for LF412 and TL082
  • AC performance
    • Settles to ±0.01% in 1.0 μs
    • 16 V/μs minimum slew rate (AD712J)
    • 3 MHz minimum unity-gain bandwidth (AD712J)
  • DC performance
    • 200 V/mV minimum open-loop gain (AD712K)
    • Surface mount available in tape and reel in accordance with the EIA-481A standard
    • MIL-STD-883B parts available
    • Single version available: AD711
    • Quad version: AD713
    • Available in PDIP, SOIC_N, and CERDIP packages
AD712-EP supports defense and aerospace applications (AQEC standard)
  • Download AD712-EP Data Sheet (pdf)
  • Military temperature range  (−55°C to +125°C)
  • Controlled manufacturing baseline
  • One assembly/test site
  • One fabrication site
  • Enhanced product change notification
  • Qualification data available on request
  • V62/11603 DSCC Drawing Number
Additional Details
show more Icon
The AD712 is a high speed, precision monolithic operational amplifier offering high performance at very modest prices. Its very low offset voltage and offset voltage drift are the results of advanced laser wafer trimming technology. These performance benefits allow the user to easily upgrade existing designs that use older precision BiFETs and, in many cases, bipolar op amps.

The superior ac and dc performance of this op amp makes it suitable for active filter applications. With a slew rate of 16 V/µs and a settling time of 1 µs to ±0.01%, the AD712 is ideal as a buffer for 12-bit D/A and A/D Converters and as a high-speed integrator. The settling time is unmatched by any similar IC amplifier.

The combination of excellent noise performance and low input current also make the AD712 useful for photo diode preamps. Common-mode rejection of 88 dB and open loop gain of 400 V/mV ensure 12-bit performance even in high-speed unity gain buffer circuits.

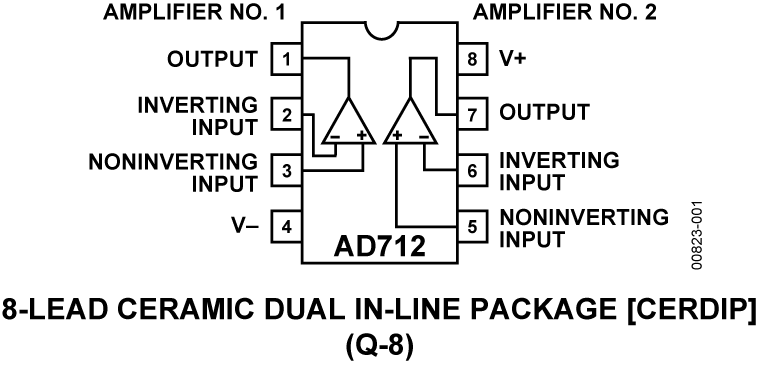

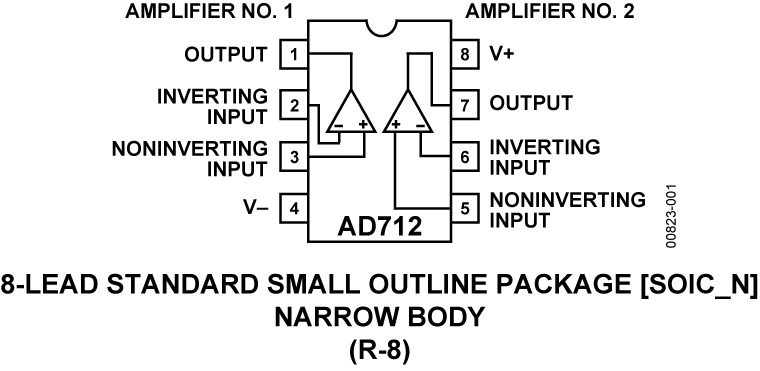

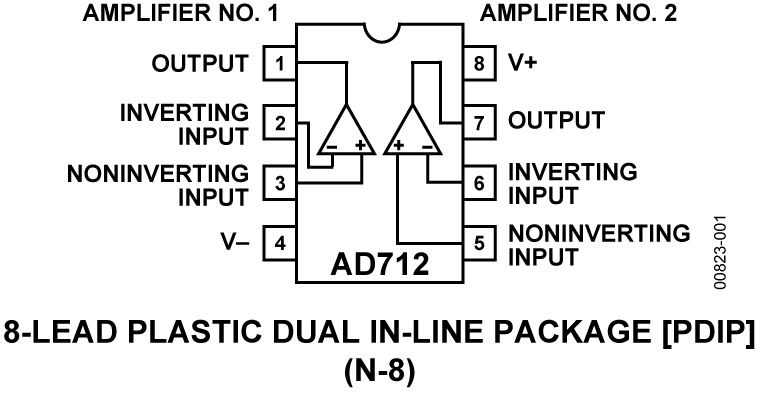

The AD712 is pinned out in a standard op amp configuration and is available in seven performance grades. The AD712J and AD712K are rated over the commercial temperature range of 0°C to +70°C. The AD712A, AD712B and AD712C are rated over the industrial temperature range of -40°C to +85°C. The AD712S and AD712T are rated over the military temperature range of -55°C to +125°C and are available processed to MIL-STD- 883B, Rev. C. Extended reliability PLUS screening is available, specified over the commercial and industrial temperature ranges. PLUS screening includes 168-hour burn-in, as well as other environmental and physical tests.

The AD712 is available in an 8-pin plastic mini-DIP, SOIC, cerdip, TO-99 metal can, or in chip form.

AD712-EP Supports defense and aerospace applications (AQEC standard)

Show More Arrow image
file View Data Sheet (Rev.I)
Documentation View All Documentation
SPICE Model AD712 SPICE Macro Model Rev. B, 4/92 Download 2.89 K SPICE Model AD712A SPICE Macro Model Rev. B, 4/92 Download 3.05 K SPICE Model AD712B SPICE Macro Model Rev. B, 4/92 Download 3.05 K SPICE Model AD712C SPICE Macro Model Rev. B, 4/92 Download 3.05 K SPICE Model AD712J SPICE Macro Model Rev. B, 4/92 Download 3.06 K LTspice AD712 - Operational Amplifiers (Op Amps) Download 1.27 KB
Part Models 12
1ku List Price Starting From $2.09
