Overview
Features and Benefits
- +2.5 V to +5.5 V Supply Operation
- 50 MHz Serial Interface
- 10 MHz Multiplying Bandwidth
- 2.5 MSPS update rate
- ±10 V reference input
- Low glitch energy < 2 nV-s
- Pin Compatible 8- (AD5426), 10- (AD5432) Current Output DACs
- Guaranteed Monotonic
- Four Quadrant Multiplication
- Power On reset with brownout detection
- Daisy Chain Mode
- Readback Function
- 0.4 μA typical power consumption
- Pin Compatible 12-Bit (AD5443) Current Output DACs
Product Details
The AD5426 / AD5432 / AD5443 are CMOS 8-, 10-, and 12-bit current output digital-to-analog converters (DACs), respectively. These devices operate from a 2.5 V to 5.5 V power supply, making them suitable for battery-powered applications and many other applications.

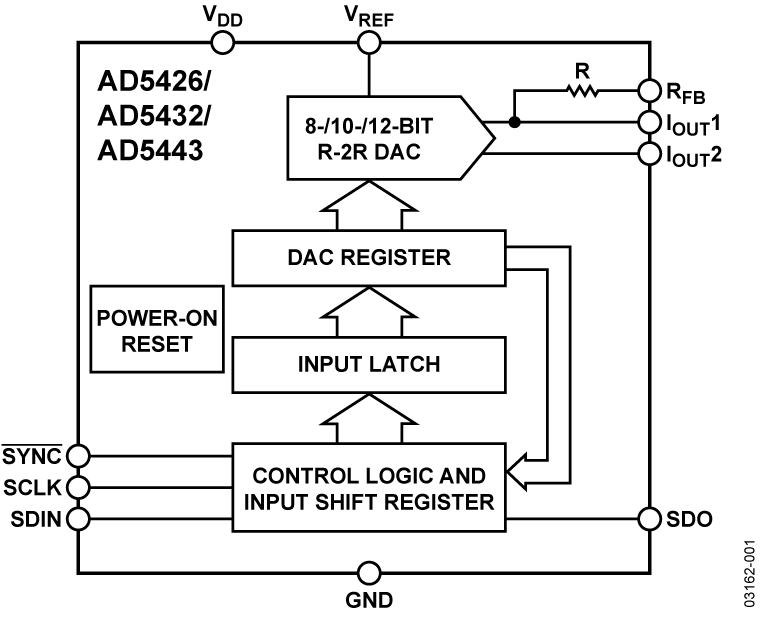

These DACs use a double buffered, 3-wire serial interface that is compatible with SPI, QSPI™, MICROWIRE™, and most DSP interface standards. In addition, a serial data out pin (SDO) allows for daisy-chaining when multiple packages are used. Data readback allows the user to read the contents of the DAC register via the SDO pin. On power-up, the internal shift register and latches are filled with 0s and the DAC outputs are at zero scale.
As a result of manufacturing on a CMOS submicron process, the parts offer excellent 4-quadrant multiplication characteristics with large signal multiplying bandwidths of 10 MHz. The applied external reference input voltage, VREF, determines the full-scale output current. An integrated feedback resistor, RFB, provides temperature tracking and full-scale voltage output when combined with an external current to voltage precision amplifier.
The AD5426 / AD5432 / AD5443 DACs are available in small, 10-lead MSOP packages.
The EVAL-AD5443SDZ / EVAL-AD5446SDZ / EVAL-AD5453SDZ evaluation board is available for evaluating DAC performance. For more information, see the UG-327 evaluation board user guide.
APPLICATIONS
- Portable battery-powered applications
- Waveform generators
- Instrumentation
- Programmable amplifiers and attenuators
- Digitally controlled calibration
- Programmable filters and oscillators
- Composite video
- Ultrasound
- Gain, offset, and voltage trimming
Product Categories
Markets and Technologies
Product Lifecycle
Production
At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.
Documentation & Resources
-
AN-1496: Unipolar, Precision, DC Digital-to-Analog Conversion Using the AD5426/AD5432/AD5443 8-Bit to12-Bit DACs (Rev. B)11/29/2017PDF86 K
-
AN-1498: Programmable Gain Element Using the AD5426/AD5432/AD5443 Current Output DACs (Rev. B)11/17/2017PDF88 K
-
AN-1497: Precision, Bipolar Configuration for the AD5426/AD5432/AD5443 8-Bit to 12-Bit DACs (Rev. B)11/17/2017PDF93 K
-
AN-1231: AC Signal Processing Using the AD5426/AD5432/AD5443 Current Output DACs (Rev. B)5/8/2013PDF87 kB
-
Multiplying DACs Flexible Building Blocks11/30/2015PDF2 M
Software & Systems Requirements
Tools & Simulations
Precision DAC Error Budget Tool
The Precision DAC Error Budget Tool is a web application that calculates the DC Accuracy of precision DAC signal chains. It shows how the static errors accumulate throughout your signal chain to quickly evaluate the design tradeoffs. Calculations include the DC errors introduced by Voltage References, Operation Amplifiers and Precision DACs.
