- High relative accuracy (INL): ±0.5 LSB maximum
- Low drift 2.5 V reference: 2 ppm/°C typical
- Selectable span output: 2.5 V or 5 V
- Total unadjusted error (TUE): 0.06% of FSR maximum
Offset error: ±1.5 mV maximum
Gain error: ±0.05 % of FSR maximum
- Low glitch: 0.1 nV-sec
- High drive capability: 20 mA
- Low power: 1.2 mW at 3.3 V
- Independent logic supply: 1.8 V to 5.5 V
- Wide operating temperature range: −40°C to +105°C
- Robust 4 kV ESD protection
The AD5310R / AD5311R, members of the nanoDAC™ family, are low power, single-channel, 10-bit buffered voltage-out DACs. The devices include a 2.5 V, 2 ppm/°C internal reference. The output span can be programmed to be 0 V to VREF or 0 V to 2 × VREF. All devices operate from a single 2.7 V to 5.5 V supply and are guaranteed monotonic by design. The devices are available in 10-lead MSOP packages.
The AD5310R / AD5311R also incorporate a power-on reset circuit that ensures that the DAC output powers up to zeroscale and remains there until a valid write takes place. The device contains a power-down feature that reduces the current consumption of the device to 2 μA at 5 V while in power-down mode.
The AD5310R / AD5311R use a versatile SPI or I2C interface, including an asynchronous RESET pin and a VLOGIC pin, allowing 1.8 V compatibility.
PRODUCT HIGHLIGHTS
- High Relative Accuracy (INL): ±0.5 LSB maximum.
- Low Drift 2.5 V On-Chip Reference: 5 ppm/°C maximum temperature coefficient.
APPLICATIONS
- Process controls
- Data acquisition systems
- Digital gain and offset adjustment
- Programmable voltage sources
- Optical modules
Ask a Question
Submit your question below and we will return the best answer from ADI’s knowledge database:
Other places you can find help
Support
Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.
Visit the ADI Support Page{{modalTitle}}
{{modalDescription}}
{{dropdownTitle}}
- {{defaultSelectedText}} {{#each projectNames}}
- {{name}} {{/each}} {{#if newProjectText}}
- {{newProjectText}} {{/if}}
{{newProjectTitle}}
{{projectNameErrorText}}
AD5311R
Documentation
Filters
1 Applied
Data Sheet
2
User Guide
1
Documentation
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
---|---|---|---|
AD5311RBRMZ | 10-Lead MSOP |
|
|
AD5311RBRMZ-RL7 | 10-Lead MSOP |
|
- AD5311RBRMZ
- Pin/Package Drawing
- 10-Lead MSOP
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
- AD5311RBRMZ-RL7
- Pin/Package Drawing
- 10-Lead MSOP
- Documentation
- HTML Material Declaration
- HTML Reliablity Data
- CAD Symbols, Footprints, and 3D Models
- Ultra Librarian
- SamacSys
Filter by Model
Part Models
Product Lifecycle
PCN
Jan 26, 2016
- 15_0176
Assembly Transfer of Select 8/10L MSOP Products to Amkor Philippines
AD5311RBRMZ
PRODUCTION
AD5311RBRMZ-RL7
PRODUCTION
Filter by Model
Part Models
Product Lifecycle
PCN
Jan 26, 2016
- 15_0176
Assembly Transfer of Select 8/10L MSOP Products to Amkor Philippines
AD5311RBRMZ
PRODUCTION
AD5311RBRMZ-RL7
PRODUCTION
Software & Part Ecosystem
Device Drivers
Looking for Evaluation Software? You can find it here
Can't find the software or driver you need?
Request a Driver/SoftwareEvaluation Kits 1
EVAL-AD5311R
AD5311R Evaluation Board
Product Detail

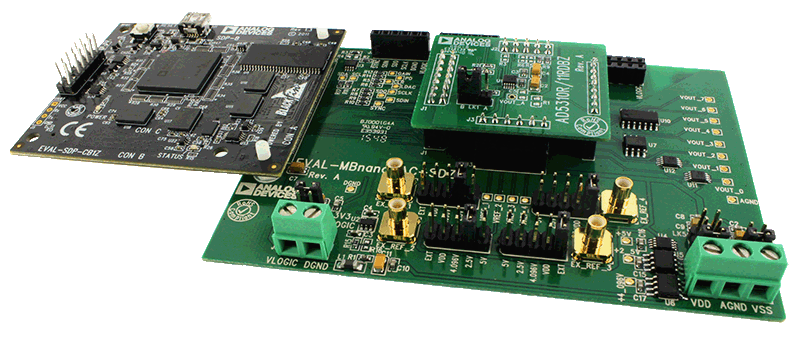

The EVAL-AD5311RDBZ evaluation board is designed to quickly prototype AD5311R circuits and reduce design time. The evaluation board interfaces with the USB port of a PC via the SDP-B controller board. The AD5311R operates from a single 2.7 V to 5.5 V supply. Software can be downloaded via the EVAL-AD5311RDBZ product page that allows users to program the AD5311R.
This evaluation board requires the SDP-B controller board, which is available for order on the Analog Devices, Inc. website.
Full data on the AD5311R can be found in the AD5311R data sheet available from Analog Devices and should be consulted in conjunction with user guide UG-964 when using the evaluation board.
