Features and Benefits
- High relative accuracy (INL): ±0.5 LSB maximum
- Low drift 2.5 V reference: 2 ppm/°C typical
- Selectable span output: 2.5 V or 5 V
- Total unadjusted error (TUE): 0.06% of FSR maximum
Offset error: ±1.5 mV maximum
Gain error: ±0.05 % of FSR maximum
- Low glitch: 0.1 nV-sec
- High drive capability: 20 mA
- Low power: 1.2 mW at 3.3 V
- Independent logic supply: 1.8 V to 5.5 V
- Wide operating temperature range: −40°C to +105°C
- Robust 4 kV ESD protection
The AD5310R / AD5311R, members of the nanoDAC™ family, are low power, single-channel, 10-bit buffered voltage-out DACs. The devices include a 2.5 V, 2 ppm/°C internal reference. The output span can be programmed to be 0 V to VREF or 0 V to 2 × VREF. All devices operate from a single 2.7 V to 5.5 V supply and are guaranteed monotonic by design. The devices are available in 10-lead MSOP packages.
The AD5310R / AD5311R also incorporate a power-on reset circuit that ensures that the DAC output powers up to zeroscale and remains there until a valid write takes place. The device contains a power-down feature that reduces the current consumption of the device to 2 μA at 5 V while in power-down mode.
The AD5310R / AD5311R use a versatile SPI or I2C interface, including an asynchronous RESET pin and a VLOGIC pin, allowing 1.8 V compatibility.
- High Relative Accuracy (INL).
±0.5 LSB maximum.
- Low Drift 2.5 V On-Chip Reference.
5 ppm/°C maximum temperature coefficient.
- Process controls
- Data acquisition systems
- Digital gain and offset adjustment
- Programmable voltage sources
- Optical modules
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
Evaluation Kits (1)

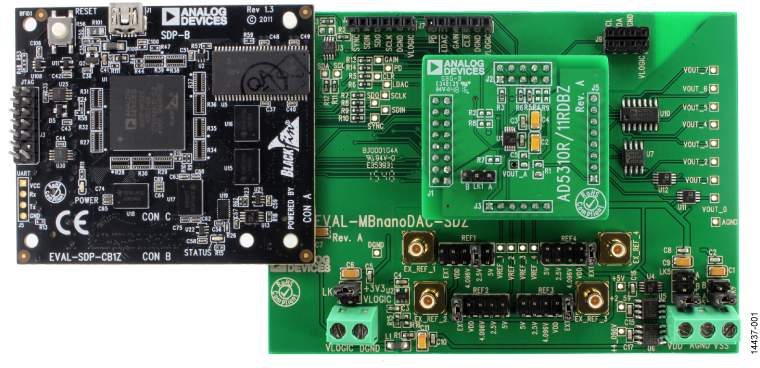

The EVAL-AD5310RDBZ evaluation board is designed to help users quickly prototype AD5310R circuits and reduce design time. The AD5310R operates from a single 2.7 V to 5.5 V supply.
For full data, see the AD5310R data sheet, which must be used in conjunction with the user guide UG-962 when using the evaluation board.
The evaluation board interfaces to the USB port of a PC via the SDP board. Software is available for download from the EVAL- AD5310RDBZ evaluation board page to allow the user to program the AD5310R.
This evaluation board requires the EVAL-SDP-CB1Z board (SDP-B controller board) or the EVAL-SDP-CS1Z board (SDP-S controller board), which are available for order on the Analog Devices website.
Software & Systems Requirements
Tools & Simulations
Precision DAC Error Budget Tool
The Precision DAC Error Budget Tool is a web application that calculates the DC Accuracy of precision DAC signal chains. It shows how the static errors accumulate throughout your signal chain to quickly evaluate the design tradeoffs. Calculations include the DC errors introduced by Voltage References, Operation Amplifiers and Precision DACs.
