AD5282

PRODUCTION

Single/Dual, +15 V/±5 V, 256-Position, I²C-Compatible Digital Potentiometer

Data Sheet (Rev. C) Product Selection Table

Part Models: 6
1ku List Price: Starting From $2.68

Viewing:

Overview

AD5280: 1 channel
AD5282: 2 channels
256 positions
+10 V to +15 V single supply;
±5.5 V dual-supply operation
20 kΩ, 50 kΩ, 200 kΩ fixed terminal resistance

Low temperature coefficient: 30 ppm/°C
Power-on midscale preset¹
Programmable reset
Operating temperature: −40°C to +85°C
I²C-compatible interface

The AD5280 / AD5282 are single-channel and dual-channel, 256-position, digitally controlled variable resistors (VRs). The devices perform the same electronic adjustment function as a potentiometer, trimmer, or variable resistor. Each VR offers a completely programmable value of resistance between the A terminal and the wiper or the B terminal and the wiper. The fixed A-to-B terminal resistance of 20 kΩ, 50 kΩ, or 200 kΩ has a 1% channel-to-channel matching tolerance. The nominal temperature coefficient of both parts is 30 parts per million/ degrees centigrade (ppm/°C). Another key feature is that the parts can operate up to +15 V or ±5 V.

Wiper position programming defaults to midscale at system power-on. When powered, the VR wiper position is programmed by an I²C-compatible, 2-wire serial data interface. The AD5280 / AD5282 feature sleep mode programmability. This allows any level of preset in power-up and is an alternative to a costly EEPROM solution. Both parts have additional programmable logic outputs that enable users to drive digital loads, logic gates, LED drivers, and analog switches in their system.

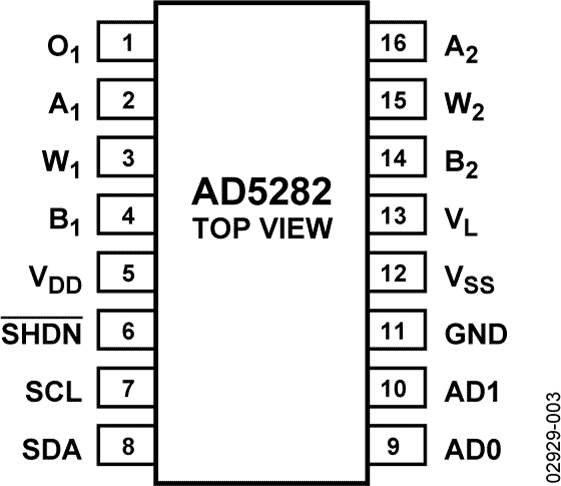

The AD5280/AD5282 are available in thin, surface-mounted 14-lead TSSOP and 16-lead TSSOP. All parts are guaranteed to operate over the extended industrial temperature range of −40°C to +85°C. For 3-wire SPI-compatible interface applications, see the AD5260 / AD5262 product information on www.analog.com

APPLICATIONS

Multimedia, video, and audio
Communications
Mechanical potentiometer replacement
Instrumentation: gain, offset adjustment
Programmable voltage source
Programmable current source
Line impedance matching

Part Models: 6
1ku List Price: Starting From $2.68

Documentation

Frequently Asked Question 1

FAQ 09/08/2025

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
AD5282BRUZ20	16-Lead TSSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD5282BRUZ20-REEL7	16-Lead TSSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD5282BRUZ200	16-Lead TSSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD5282BRUZ200-R7	16-Lead TSSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD5282BRUZ50	16-Lead TSSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
AD5282BRUZ50-REEL7	16-Lead TSSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 11, 2011 - 10_0005 Halogen Free Material Change for TSSOP Products Assembled at Amkor
		PCN10_0005_Form Material_Report Reliability Report
AD5282BRUZ20	PRODUCTION
AD5282BRUZ20-REEL7	PRODUCTION
AD5282BRUZ200	PRODUCTION
AD5282BRUZ200-R7	PRODUCTION
AD5282BRUZ50	PRODUCTION
AD5282BRUZ50-REEL7	PRODUCTION
