Overview

Features and Benefits

A2B BUS FEATURES
  • Line topology
    • Single master, multiple slave
    • Up to 15 m between nodes and up to 40m overall cable length
  • Communication over distance
    • Synchronous data
      • Multichannel I2S/TDM to I2S/TDM
      • Synchronous clock, phase aligned in all nodes
      • Low latency slave to slave communication
    • Control and status information I2C to I2C
    • GPIO and interrupt
  • Bus power or local power slave nodes
  • Configurable with SigmaStudio graphical software tool
  • AEC-Q100 qualified for automotive applications
A2B TRANSCEIVER FEATURES
  • Configurable A2B bus master or slave operation
  • I2C interface
  • 8-bit to 32-bit multichannel I2S/TDM interface
    • Programmable I2S/TDM data rate
    • Up to 32 upstream and 32 downstream channels
  • PDM interface
    • Programmable PDM clock rate
    • Up to 4 high dynamic range microphone inputs
  • Simultaneous reception of I2S data with up to 4 PDM microphones
  • Unique ID register for each transceiver
  • Crossover or straight-through cabling
  • Programmable settings to optimize EMC performance

Product Details

The Automotive Audio Bus (A2B®) provides a multichannel, I2S/TDM link over distances of up to 15 m between nodes. It embeds bidirectional synchronous pulse-code modulation (PCM) data (for example, digital audio), clock, and synchronization signals onto a single differential wire pair. A2B supports a direct point to point connection and allows multiple, daisy-chained nodes at different locations to contribute and/or consume time division multiplexed (TDM) channel content.

A2B is a single-master, multiple-slave system where the transceiver at the host controller is the master. The master generates clock, synchronization, and framing for all slave nodes. The master A2B transceiver is programmable over a control port (I2C) for configuration and read back. An extension of this control port is embedded in the A2B data stream, which grants direct access of registers and status information on slave transceivers as well as I2C to I2C communication over distance.

The transceiver can connect directly to general-purpose digital signal processors (DSPs), field-programmable gate arrays (FPGAs), application specific integrated circuits (ASICs), microphones, analog-to-digital converters (ADCs), digital-to-analog converters (DACs), and codecs through a multichannel I2S/TDM interface. It also provides a pulse density modulation (PDM) interface for direct connection of up to four PDM digital microphones.

Finally, the transceiver also supports an A2B bus powering feature, where the master node supplies voltage and current to the slave nodes over the same daisy-chained, twisted pair wire cable as used for the communication link.

Table 1. Product Comparison Guide
Feature AD2420/
AD2420W
AD2426/
AD2426W
AD2427/
AD2427W
AD2428/
AD2428W
AD2429/
AD2429W
Master capable No No No Yes Yes
Number of slaves discoverable1 N/A N/A N/A Up to 10 Up to 2
Functional TRX blocks A only A only A + B A + B B only
I2S/TDM support No No No Yes Yes
PDM microphone inputs 2 mics2 4 mics 4 mics 4 mics 4 mics
Max node to node cable length 5 m 15 m 15 m 15 m 5 m

1 N/A means not applicable.
2 PDM microphones must be connected to the DRX0/IO5 pin.

Applications

  • Audio communication link
  • Microphone arrays
    • Beamforming
    • Hands free and in car communication
  • Active and road noise cancellation
  • Audio/video conferencing systems

Please contact your local ADI sales office or authorized ADI product distributor to receive additional product information and technical support.

Comparable Parts Click to see all in Parametric Search

Part#
Vsupply (min)
Vsupply (max)
US Price 1000-4999
Status
Product Description
Number of Nodes
Master/ Slave
Interface Protocol
Iout Isolated Supply (max
ESD Protection
Data Rate (max)
# of Channels
3.7V
9V
$2.72
Production
A2B last-in-line slave 4xPDM XCVR
11
Slave
A2B, I2C, PDM
-
2.5kV
50Mbps
32
3.7V
9V
$3.93
Production
A2B master/slave 4xPDM XCVR w I2S/TDM
11
Master, Slave
A2B, I2C, I2S, PDM
300mA
2.5kV
50Mbps
32
3.7V
9V
$2.97
Production
A2B mid-line slave 4xPDM XCVR
11
Slave
A2B, I2C, PDM
300mA
2.5kV
50Mbps
32
3.7V
9V
$2.88
Production
A2B master 4xPDM XCVR w I2S/TDM
3
Master
A2B, I2C, I2S, PDM
100mA
2.5kV
50Mbps
32

Product Lifecycle icon-recommended Production

At least one model within this product family is in production and available for purchase. The product is appropriate for new designs but newer alternatives may exist.

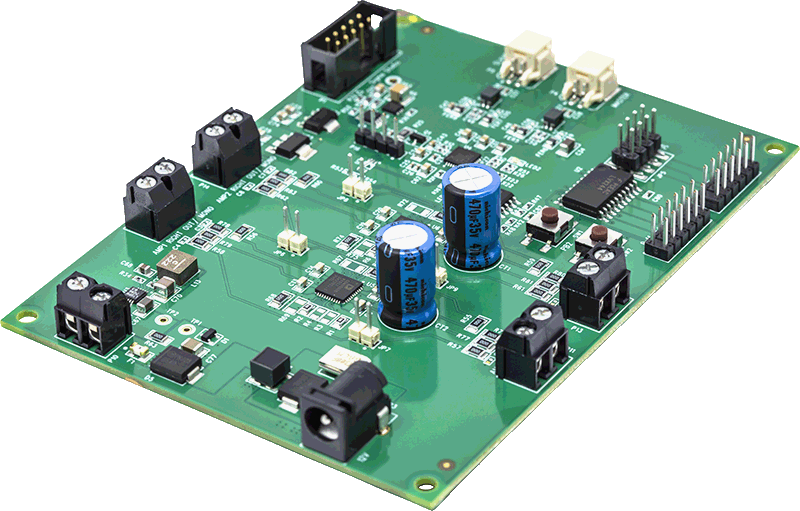

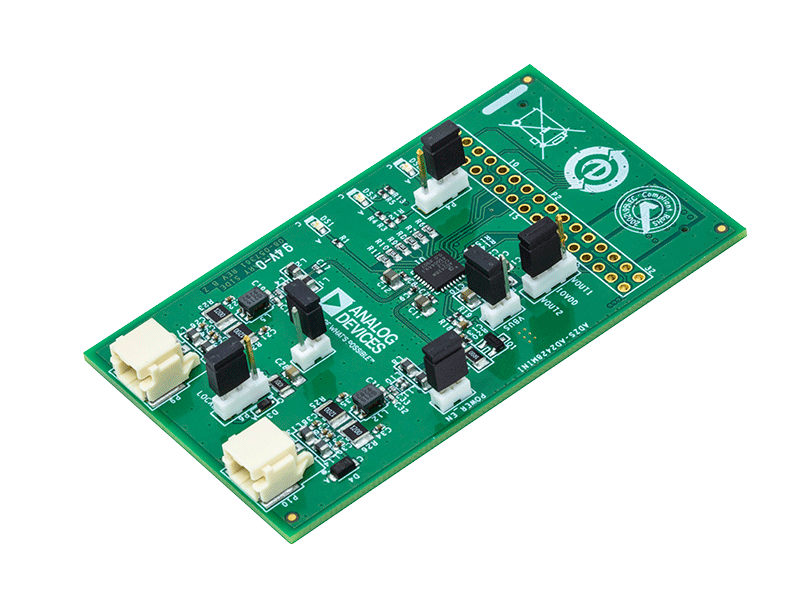

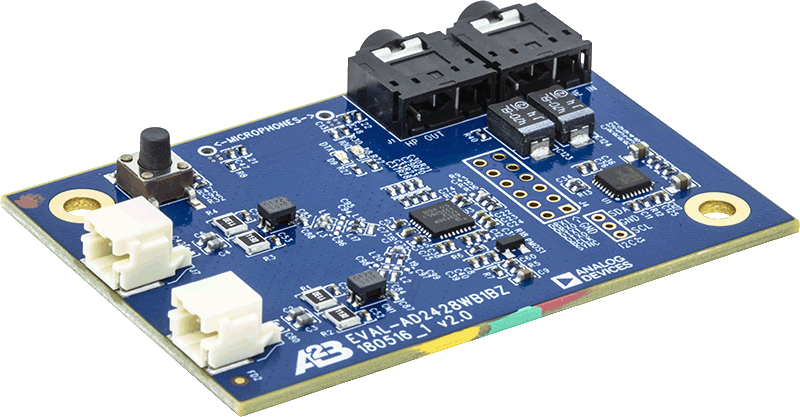

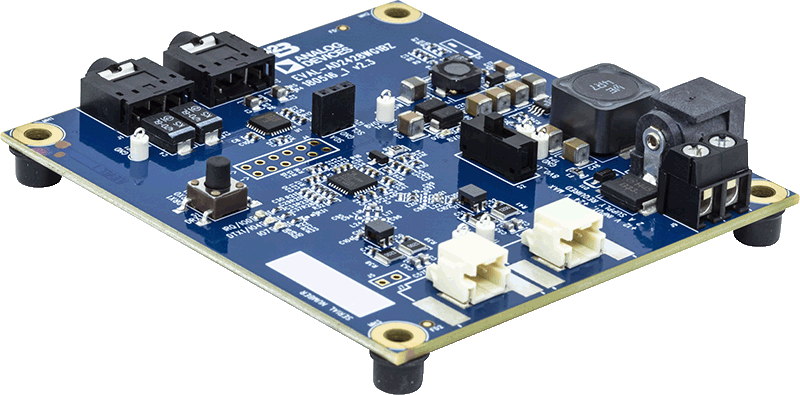

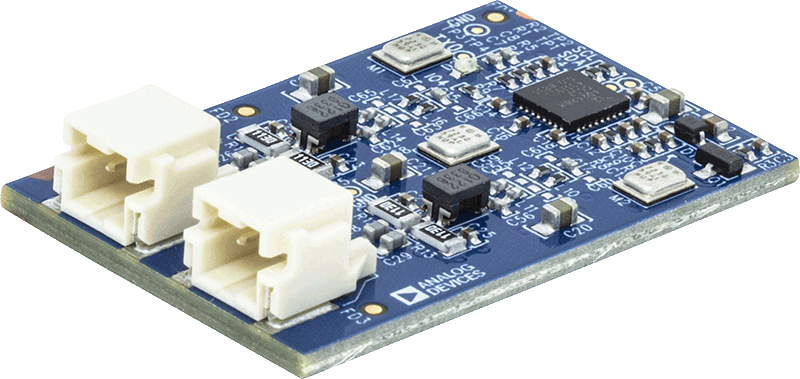

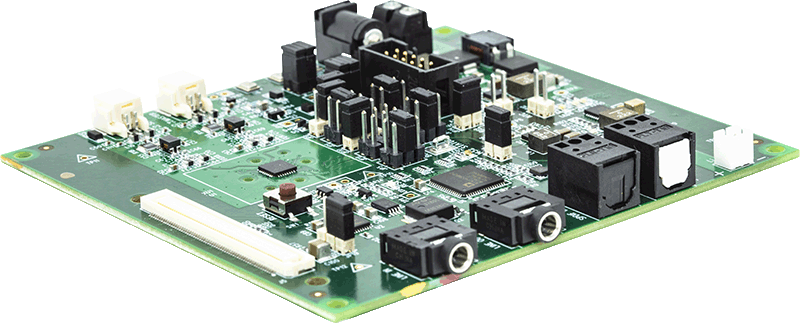

Evaluation Kits (5)
