TMC2224

RECOMMENDED FOR NEW DESIGNS

Silent stepper motor driver 5 to 36V, up to 1.4A with S/D and UART Interface, 256 µSteps, SpreadCycle and Stealthchop

Data Sheet (Rev. 1.14) Product Selection Table

Part Models: 2
1ku List Price: price unavailable

Viewing:

Overview

2-phase stepper motors up to 2A coil current (peak)
STEP/DIR Interface with 2, 4, 8, 16 or 32 microstep pin setting
Smooth Running 256 microsteps by MicroPlyer™ interpolation
StealthChop2™ silent motor operation
SpreadCycle™ highly dynamic motor control chopper
Low RDSon LS 280mΩ & HS 290mΩ (typ. at 25°C)

Voltage Range 4.75 to 36V DC
Automatic Standby current reduction (option)
Internal Sense Resistor option (no sense resistors required)
Passive Braking and Freewheeling
Single Wire UART & OTP for advanced configuration options
Integrated Pulse Generator for standalone motion
Full Protection & Diagnostics
Choice of QFN and wettable QFN packages for best fit

The TMC2224 provides an integrated motor driver solution for 3D-Printing, Cameras, Scanners and other automated equipment applications. The device has an integrated microstepping indexer, the completely noiseless current control mode StealthChop2™ and is intended to drive a bipolar stepper motor. The output driver block consists of low RDSon N-Channel power MOSFETs configured as full H-bridges to drive the motor windings. The TMC2224 is capable of driving up to 2A of current from each output (with proper heatsinking). TMC2224 is designed for a supply voltage of 5 to 36V. The device has a step and direction interface and can be configured with digital pins.

Applications

Compatible Design Upgrade

3D Printers

Printers, POS

Office and home automation

Textile, Sewing Machines

CCTV, Security

ATM, Cash recycler

HVAC

Part Models: 2
1ku List Price: price unavailable

Documentation

Data Sheet 2

TMC2202 TMC2208 TMC2224 Data Sheet (Rev.1.13) 08/11/2023

TMC2202 TMC2208 TMC2224 Data Sheet (Rev.1.14) 03/15/2023

Application Note 2

AN-001: Parameterization of spreadCycle™ 11/21/2016

AN-047: How to replace DRV8824 by TMC2224 08/09/2023

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
TMC2224-LA	28-LFCSP-5X5X0.9	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
TMC2224-LA-T	28-LFCSP-5X5X0.9	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

Design Tool 1

TMC220x TMC222x Calculations

Evaluation Kits

Evaluation Board for TMC2224

Buy Now View Details

Features and Benefits

SpreadCycle™
StealthChop2™
MicroPlyer™
1 to 256 Microsteps
1.35ARMS, 36V

Product Details

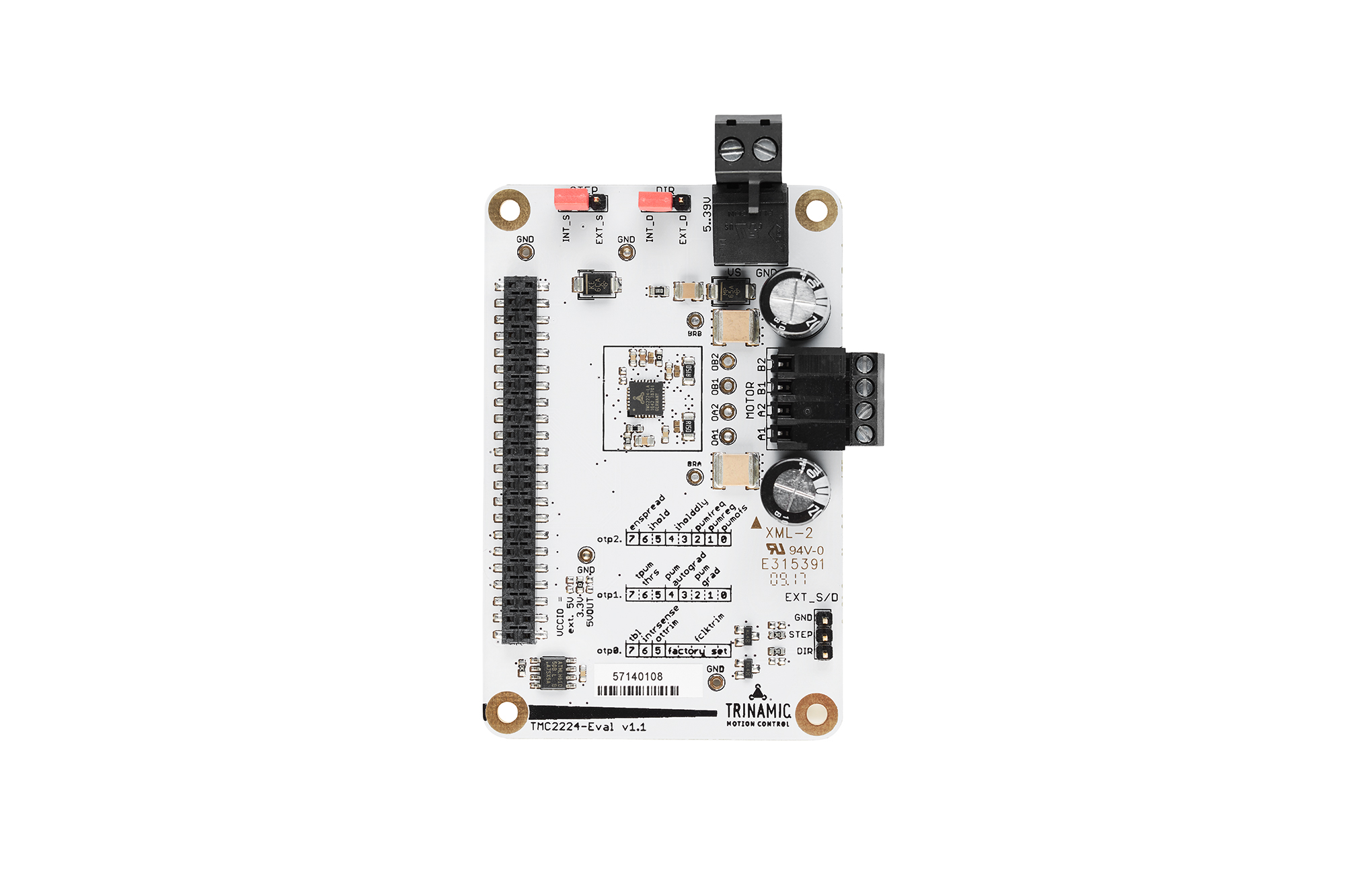

The TMC2224-EVAL allows you to explore all functions of the TMC2224-LA.
