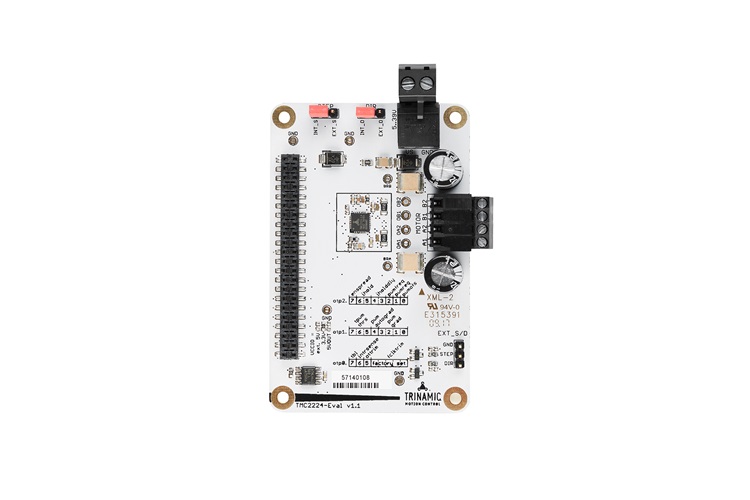

TMC2224-EVAL
Overview
Features and Benefits
- SpreadCycle™
- StealthChop2™
- MicroPlyer™
- 1 to 256 Microsteps
- 1.35ARMS, 36V
Product Details
The TMC2224-EVAL allows you to explore all functions of the TMC2224-LA.
The TMC2224-EVAL-KIT is a set of one MCU board Landungsbruecke, a TMC22xx bridge board and one TMC2224-EVAL driver board. It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.
For diagnosis, all signals between MCU and TMC2224 are accessible with probes on the bridge board. TMC2224-EVAL can be used with or without the Landungsbruecke MCU board.
All you need to get started is a power supply and ADI Trinamic's free and easy to use TMCL-IDE. This graphical user interface allows quick setup and supports the use of commands in direct mode, monitors real-time behavior visualized in graphs, and logs and stores data. All settings can simply be exported for your own firmware project.
Applicable Parts
Documentation & Resources
-
Tmc22xx Bridge 01 Schematic - Schematic (Rev. 11)12/6/2017PDF51K
-
TMC2202 TMC2208 TMC2224 Data Sheet (Rev. 1.13)8/11/2023PDF1M
-
TMC2202 TMC2208 TMC2224 Data Sheet (Rev. 1.14)3/15/2023PDF1M
-
Tmc2224 Eval Cad Files - Design Files (Rev. 1.1)5/28/2019ZIP84K
-
TMC2224 Eval Layout - Design Files12/6/2017ZIP540K
-
Tmc2208 Bridge Eagle Files - Design Files (Rev. 11)12/6/2017ZIP84K
