MAX77827

5.5V Input, 1.8A/3.1A Switch Buck-Boost Converter with 6μA IQ

Show More showmore-icon

High Efficiency, Low IQ Buck-Boost Converter

Info: : PRODUCTION tooltip
Info: : PRODUCTION tooltip
Part Details
Part Models 16
1ku List Price Starting From $0.68
Features
  • 1.8V to 5.5V Input Voltage Range
  • 2.3V to 5.3V Single Resistor Adjustable Output Voltage
  • 1.6A Maximum Output Current (3.1A ILIM Option, Buck Mode)
  • 900mA Maximum Output Current (1.8A ILIM Option, Boost Mode 3.0VIN, 3.3VOUT)
  • 96% Peak Efficiency (3.3VIN, 3.3VOUT)
  • SKIP Mode for Higher Light-Load Efficiency
  • 6μA Ultra-Low Typical Quiescent Current (At TJ = +25°C)
  • 2.5MHz Nominal Switching Frequency
  • Enable Pin
  • GPIO Pins for System Design Convenience
    • FPWM (Forced PWM) Mode Selection Pin
    • POK Indicator Pin
  • UVLO, Soft-Start, Active-Output Discharge, Overcurrent, and Thermal Shutdown Protections
  • 1.61mm x 2.01mm, 12-Bump WLP
  • 2.5mm x 2.5mm, 14-Lead FC2QFN
Additional Details
show more Icon

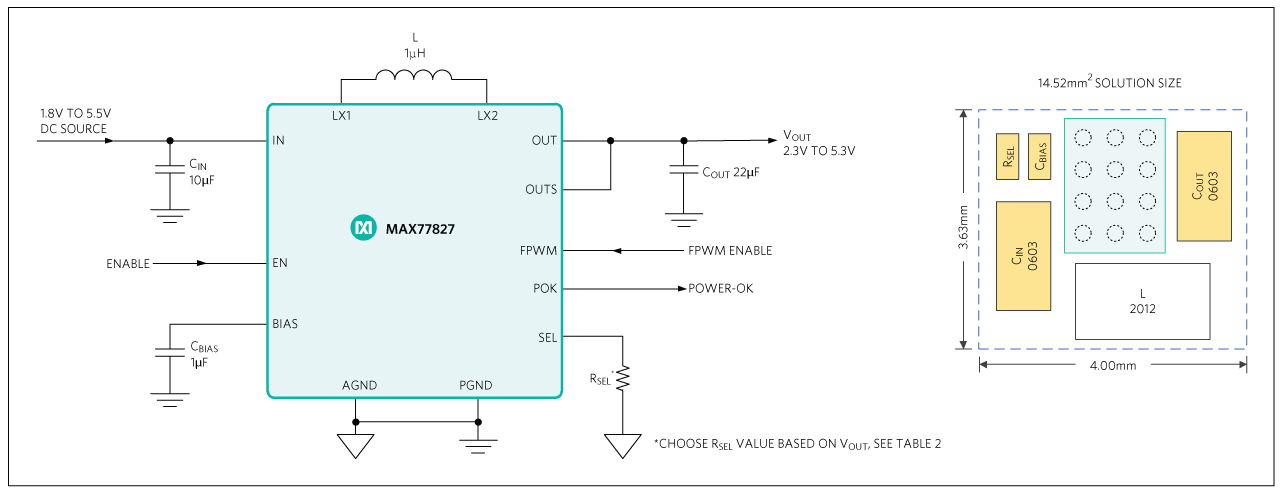

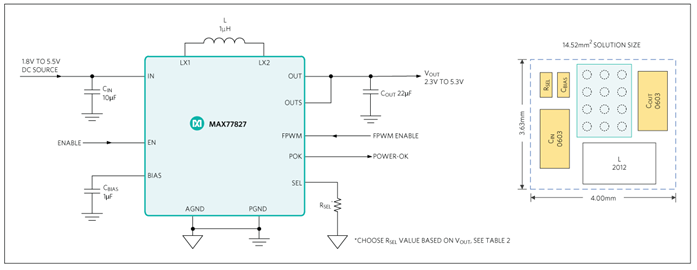

The MAX77827 is a high-efficiency buck-boost regulator targeted for one-cell Li-ion powered applications with the lowest typical quiescent current in the industry of 6μA. It supports input voltages of 1.8V to 5.5V and an output voltage range of 2.3V to 5.3V. The IC provides two different switching current levels (1.8A and 3.1A) to optimize external component sizing based on given load current requirements. With the 1.8A switching current-limit option, the IC can support up to 1.0A load current in buck mode and 900mA in boost mode (VIN = 3.0V, VOUT = 3.3V).

The peak efficiency of 96% makes the IC one of the best solutions as a DC/DC converter to supply a rail for battery-powered portable applications.

The IC features an adjustable output voltage, which can be programmed from 2.3V to 5.3V through a single resistor. Two GPIO pins are available to support force PWM enable function and power-OK (POK) indicator. A unique control algorithm allows high-efficiency, outstanding line/load transient response, and seamless transition between buck and boost modes. These options provide design flexibility that allow the IC to cover a wide range of applications and use cases while minimizing board space.

The MAX77827 is available in a 1.61mm x 2.01mm, 12-bump wafer-level package (WLP), and a 2.5mm x 2.5mm, 14-lead FC2QFN package.

Mobile App

Applications

  • 1-Cell Li+ Battery Powered Equipment
  • Smartphones/Portable/Wearables
  • Internet of Things (IoT) Devices
  • LPWAN (LTE/NB-IoT, LTE/Cat-M1)
Part Models 16
1ku List Price Starting From $0.68

close icon
Documentation

Documentation

Video

Part Model Pin/Package Drawing Documentation CAD Symbols, Footprints, and 3D Models
MAX77827AEFD+
  • HTML
  • HTML
MAX77827AEFD+T
  • HTML
  • HTML
MAX77827AEWC+
  • HTML
  • HTML
MAX77827AEWC+T
  • HTML
  • HTML
MAX77827BEFD+
  • HTML
  • HTML
MAX77827BEFD+T
  • HTML
  • HTML
MAX77827BEWC+
  • HTML
  • HTML
MAX77827BEWC+T
  • HTML
  • HTML
MAX77827CEFD+
  • HTML
  • HTML
MAX77827CEFD+T
  • HTML
  • HTML
MAX77827CEWC+
  • HTML
  • HTML
MAX77827CEWC+T
  • HTML
  • HTML
MAX77827DEFD+
  • HTML
  • HTML
MAX77827DEFD+T
  • HTML
  • HTML
MAX77827DEWC+
  • HTML
  • HTML
MAX77827DEWC+T
  • HTML
  • HTML

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

May 19, 2021

- 2027A

ASSEMBLY

MAX77827AEFD+

PRODUCTION

MAX77827AEFD+T

PRODUCTION

MAX77827BEFD+

PRODUCTION

MAX77827BEFD+T

PRODUCTION

MAX77827CEFD+

PRODUCTION

MAX77827CEFD+T

PRODUCTION

MAX77827DEFD+

PRODUCTION

MAX77827DEFD+T

PRODUCTION

Dec 7, 2020

- 2109

TEST

MAX77827BEWC+

PRODUCTION

MAX77827BEWC+T

PRODUCTION

MAX77827CEWC+T

PRODUCTION

Filter by Model

reset

Reset Filters

Part Models

Product Lifecycle

PCN

May 19, 2021

- 2027A

arrow down

ASSEMBLY

MAX77827AEFD+

PRODUCTION

MAX77827AEFD+T

PRODUCTION

MAX77827BEFD+

PRODUCTION

MAX77827BEFD+T

PRODUCTION

MAX77827CEFD+

PRODUCTION

MAX77827CEFD+T

PRODUCTION

MAX77827DEFD+

PRODUCTION

MAX77827DEFD+T

PRODUCTION

Dec 7, 2020

- 2109

arrow down

TEST

MAX77827BEWC+

PRODUCTION

MAX77827BEWC+T

PRODUCTION

MAX77827CEWC+T

PRODUCTION

Software & Part Ecosystem

Software & Part Ecosystem

Evaluation Kit

Evaluation Kits 2

reference details image

MAX77827EVKIT

Evaluation Kit for the MAX77827

zoom

MAX77827EVKIT

Evaluation Kit for the MAX77827

Evaluation Kit for the MAX77827

Features and Benefits

  • Sense Points for High-Accuracy Measurements
  • Accessible Test Points for EN, POK, and OUTS
  • Output Voltage Adjustable Through SEL
  • FPWM and Skip Mode Configurable (Skip Mode Default)
  • UVLO Rising = 2.6V, UVLO Falling = 1.9V (MAX77827CEWC+)

Product Detail

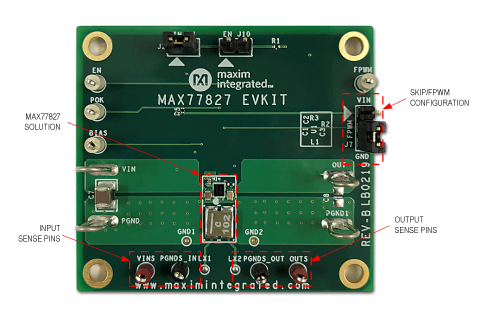

The MAX77827 evaluation kit (EV kit) provides a proven design to evaluate the MAX77827, a 1.6A buck-boost converter. The IC is capable of 1.8V to 5.5V input and is output voltage adjustable between 2.3 to 5.3V (through SEL pin). The factory default output voltage of this EV kit is set at 3.3V. Output voltage can be adjusted by changing the SEL resistor value (R3). Two GPIO pins are available to support Force PWM and EN functions. The EV kit is compatible with any version of the MAX77827 WLP IC (MAX77827CEWC+ is the default).

Applications

  • 1-Cell Li+ Battery Powered Equipment
  • Internet of Things (IoT) Devices
  • NB-IoT Devices
  • Smartphones/Portable/Wearables

MAXESSENTIAL02EP

Essential Analog Efficient Power Toolkit for the MAXM38643 / MAX38640 / MAX77839 / MAXM17225 / MAX17227A / MAX38889 / MAX38902C / MAX38913 / MAX77827

zoom

MAXESSENTIAL02EP

Essential Analog Efficient Power Toolkit for the MAXM38643 / MAX38640 / MAX77839 / MAXM17225 / MAX17227A / MAX38889 / MAX38902C / MAX38913 / MAX77827

Essential Analog Efficient Power Toolkit for the MAXM38643 / MAX38640 / MAX77839 / MAXM17225 / MAX17227A / MAX38889 / MAX38902C / MAX38913 / MAX77827

Features and Benefits

  • Enables Immediate Testing of Nine Different Power Solutions
  • Includes nanoPower Buck and Boost Converters and Modules, Buck/Boost Converter, LDOs, and Continua Supercapacitor Backup Power Controller
  • Boards Designed to Accept 0.100” (2.54mm) Header Pin Strips for Mounting on Breadboards
  • Through Holes Accept Test Points for Connecting to Benchtop Equipment

Product Detail

The MAXESSENTIAL02EP Essential Analog Efficient Power toolkit delivers products on ready-to-use boards for immediate testing and prototyping. The Essential Analog Efficient Power toolkit features products from the Buck, Boost, Buck-Boost, LDO, and Continua™ product categories. The selection also features nanoPower switching converter and module options.
