MAX17335

RECOMMENDED FOR NEW DESIGNS

AccuCharge + ModelGauge m5 EZ 1-Cell Charger, Fuel Gauge, and Protector

Viewing:

Overview

  • Non-Volatile Programmable Stand-Alone Charger
    • 1% Charge Current, 256 Current Settings
    • 0.25% Charge Voltage, 2.42V to 4.8V, Configurable
    • Optional Manual Charge Control
    • FET Temperature Limit and Heat Regulation
    • Prequal, SmartFull, and Step-Charging Options
    • JEITA—9 Temperature Regions
  • Battery Health + Programmable Safety/Protection
    • Overvoltage/Overcharge Current
      • Temperature Region Dependent
    • Overcharge/Discharge/Short-Circuit Current
    • Over/Under Temperature
    • Zero-Volt or >1.8V Charging Option
    • Undervoltage + SmartEmpty
  • Pushbutton Wakeup/Factory Ship Mode (0.5μA)
  • ModelGauge m5 EZ Algorithm
    • Percent, Capacity,Time-to-Empty/Full, Age
    • Cycle+™ Age Forecast + Age-Scheduled Charging
  • Dynamic Power—Estimates Power Capability
  • SHA-256 Authentication to Prevent Cloning
  • Precision Measurement Without Calibration
    • Current, Voltage, Power, Time, Cycles
    • Die Temperature and two Thermistors
  • History Logging, User Data
  • Low Quiescent Current
    • FETs Enabled: 35μA Active, 21μA Hibernate
    • FETs Disabled: 8μA Ship, 0.5μA Shutdown
  • 2-Wire (I2C) and 1-Wire®
  • 1.9 mm x 2.5 mm 15-Bump 0.5mm Pitch Wafer-Level Package (WLP)

The MAX17335 is a 35μA IQ stand-alone charger, fuel gauge, protector, and battery internal self-discharge detection IC for 1-cell lithium-ion/polymer batteries. When a voltage source is present, the IC regulates charging by modulating the charge N-FET, using AccuCharge™charger technology. The IC regulates charge voltage, current, and FET temperature. Stand-alone charging is supported by flexible configuration in nonvolatile memory. The IC supports the following applications:

  • Low-Power Charging
    • 1mA to 500mA directly from universal 5V USB
    • No USB identification/coordination needed
  • High-Power Parallel Packs (>1000mA)
    • Independently charges parallel packs
    • Prevents cross-charging for parallel batteries
    • Coordinates external DC-DC with alerts
    • Minimizes dropout and heat
  • Protection and Charging Control—pack or host side

The IC ideal diode circuit supports a quick response to system transients and adapter removal with low voltage drop across the CHG FET.

The IC uses the ModelGauge™ m5 EZ algorithm that combines the short-term accuracy and linearity of a coulomb counter with the long-term stability of a voltage-based fuel gauge to provide industry-leading accuracy. The IC automatically compensates for cell aging, temperature, and discharge rate while providing accurate state-of-charge (SOC) in milliampere-hours (mAh) or percentage (%) over a wide range of operating conditions.

The IC monitors the voltage, current, temperature, and state of the battery to provide protection against over/undervoltage, overcurrent, short-circuit, over/undertemperature and overcharge conditions, and internal self-discharge protection using external high-side N-FETs to ensure that the lithium-ion/polymer battery operates under safe conditions which prolongs the life of the battery.

APPLICATIONS

  • USB PPS and Direct Charging
  • Smart Batteries and Hybrid Supercap Batteries
  • Dual Screen Smartphones, Tablets
  • Hearables, Wearables, Smartwatches
  • Medical Devices, Health, Fitness Monitors
  • Handheld Radios, Computers, Accessories
  • Home/Building Automation, Sensors, Cameras
  • Parallel Battery AR/VR Systems

MAX17335
AccuCharge + ModelGauge m5 EZ 1-Cell Charger, Fuel Gauge, and Protector
MAX17335 Simple Block Diagram MAX17335 Pin Configuration
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations


Evaluation Kits

eval board
MAX17335EVKIT

Evaluation kit for MAX17335

Features and Benefits

  • ModelGauge m5 Algorithm
  • Charges, Monitors, and Protects a 1S Battery
  • Full Protection Solution On-Board for Evaluation
  • Battery Voltage (VBATT) Range of +2.16V to +4.9V with Default Hardware
  • Input Voltage up to 5.7V
  • Default Current Range -5A (Discharge) to +2.56A (Charge) with 10mΩ Sense Resistor (Higher Currents can be Supported by Changing to a Smaller Sense Resistor)
  • Two Thermistor Measurements
  • On-Board I2C Communication Interface with Built-In MAXUSB Interface
  • Windows 7 or Newer Compatible Software
  • Proven PCB Layout
  • Fully Assembled and Tested

Product Details

The MAX17335 evaluation kit (EV kit) is a fully assembled and tested surface-mount PCB that evaluates the standalone charger, fuel gauge IC with protector and optional SHA-256 authentication for 1 cell lithium-ion/polymer batteries.

The MAX17335 EV kits include the IC evaluation board with integrated I2C interface and USB micro-B cable. Windows® based graphical user interface (GUI) software is available for use with the EV kit and can be downloaded from https://www.analog.com/en/products/max17335. html product page under the Design Resources tab. Windows 7 or newer Windows operating system is required to use with the EV kit GUI software

MAX17335EVKIT
Evaluation kit for MAX17335

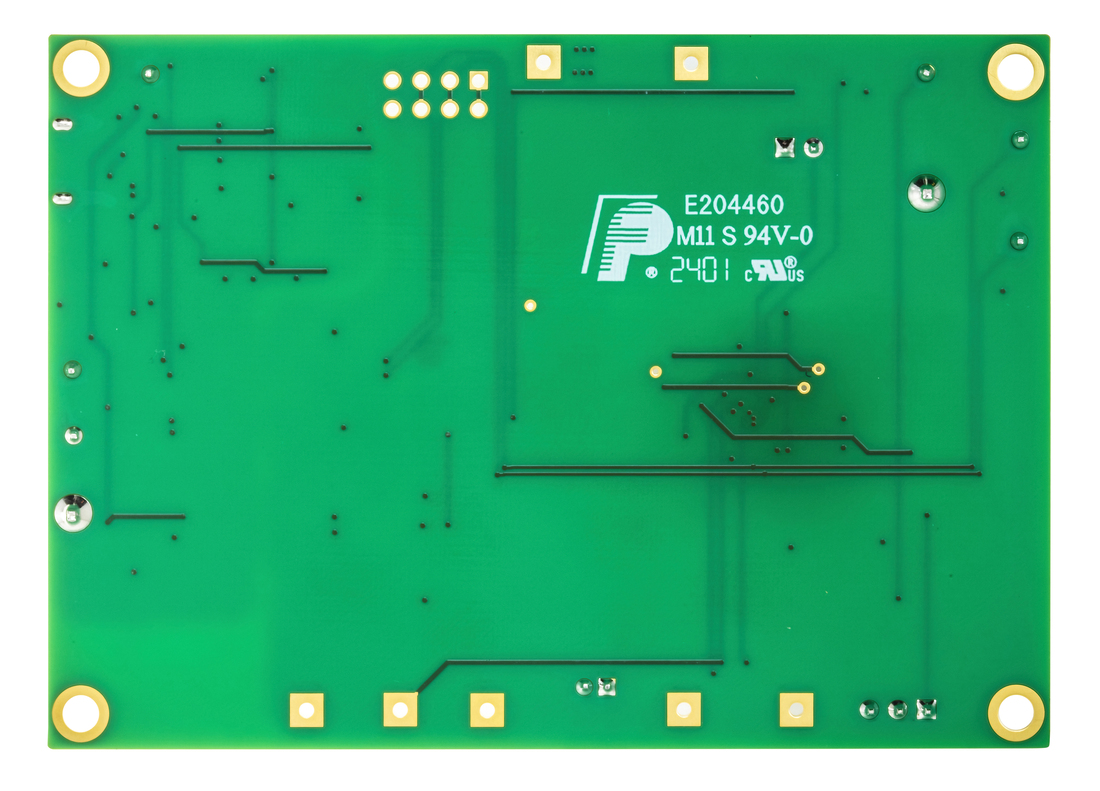

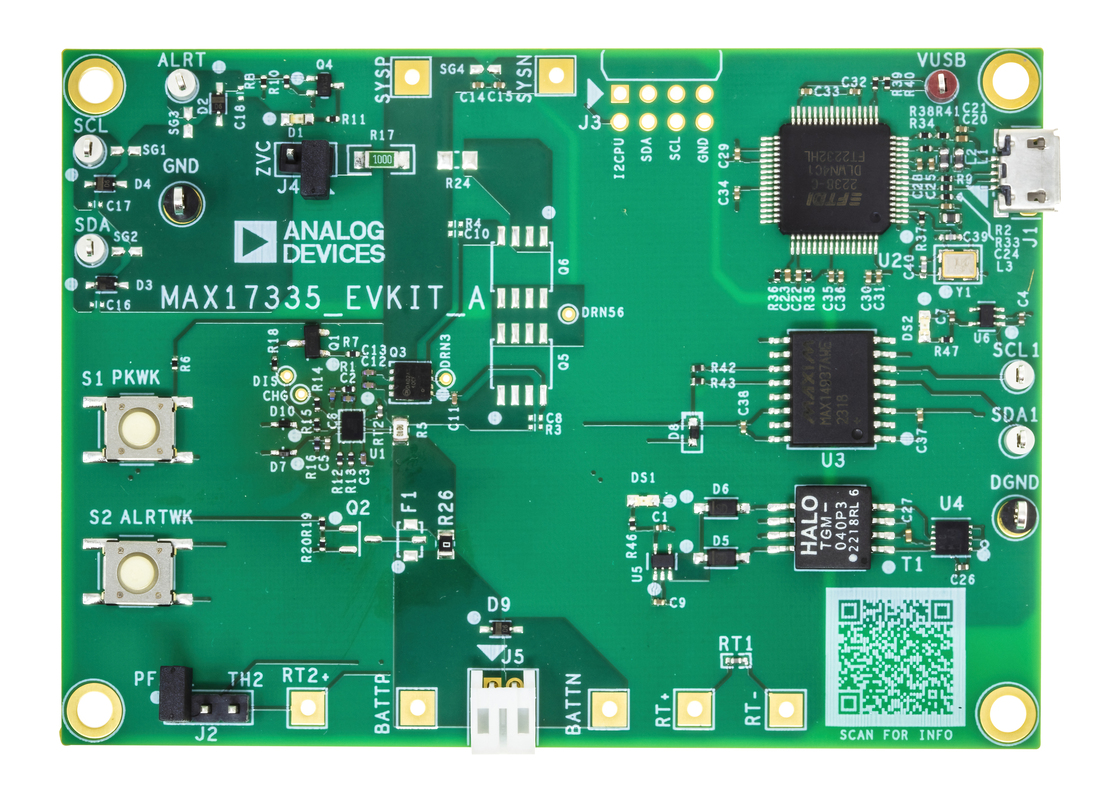

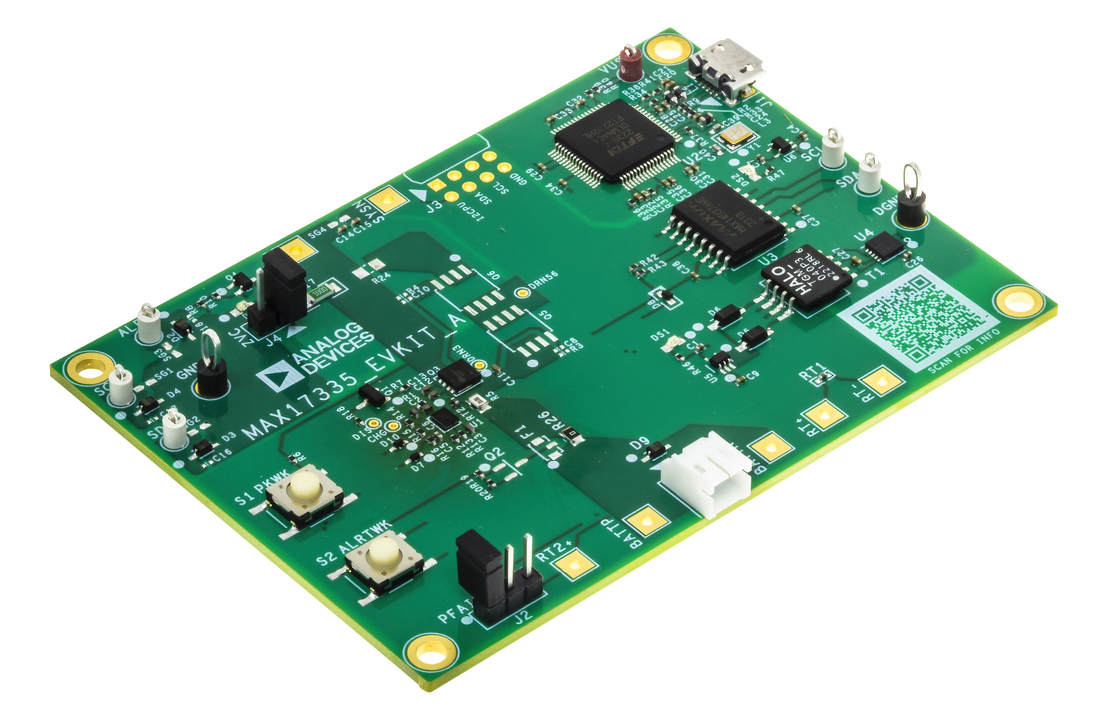

MAX17335EVKIT Angle evaluation board MAX17335EVKIT Top evaluation board MAX17335EVKIT Bottom evaluation board
