LTC4316

PRODUCTION

Single I²C/SMBus Address Translator

Part Models: 8
1ku List Price: Starting From $1.78

Viewing:

Overview

Allows Multiple Slaves with the Same Address to Coexist on the Same Bus
Resistor Configurable Address Translation
No Software Programming Required
Compatible with SMBus, I²C and I²C Fast Mode
Pass-Through Mode Allows General Call Addressing
±4kV HBM ESD Ruggedness

Level Translation for 2.5V, 3.3V and 5V Buses
Stuck Bus Timeout
Prevents SDA and SCL Corruption During Live Board Insertion and Removal
Support Bus Hot Swap^™
10-Lead MSOP and DFN 3mm × 3mm Packages

The LTC4316 enables the hardwired address of one or more I²C or SMBus slave devices to be translated to a different address. This allows slaves with the same hardwired address to coexist on the same bus. Only discrete resistors are needed to select the new address and no software programming is required. Up to 127 different address translations are available.

The LTC4316 incorporates a pass-through mode which disables the address translation and allows general call addressing by the master. The LTC4316 is designed to automatically recover from abnormal bus conditions like bus stuck low or premature STOP bits.


Part Number	Number of Input Channels	Number of Output Channels
LTC4316	1	1
LTC4317	1	2
LTC4318	2	2

Applications

I²C, SMBus Address Expansion
Address Translation
Servers
Telecom

Part Models: 8
1ku List Price: Starting From $1.78

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC4316CDD#PBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4316CDD#TRPBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4316CMS#PBF	10-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4316CMS#TRPBF	10-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4316IDD#PBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4316IDD#TRPBF	10-Lead DFN (3mm x 3mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4316IMS#PBF	10-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC4316IMS#TRPBF	10-Lead MSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 14, 2025 - 25_0017 Bond Wire Change from Gold to Copper
		PCN25_0017_Form Material_Report Qualification Results Summary
LTC4316CDD#PBF	PRODUCTION
LTC4316CDD#TRPBF	PRODUCTION
LTC4316CMS#PBF	PRODUCTION
LTC4316CMS#TRPBF	PRODUCTION
LTC4316IMS#PBF	PRODUCTION
LTC4316IMS#TRPBF	PRODUCTION
Feb 4, 2020 - 20_0130 Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0130_Form Material_Report
LTC4316CMS#PBF	PRODUCTION
LTC4316CMS#TRPBF	PRODUCTION
LTC4316IMS#PBF	PRODUCTION
LTC4316IMS#TRPBF	PRODUCTION
Apr 14, 2025 - 25_0017 Bond Wire Change from Gold to Copper
		PCN25_0017_Form Material_Report Qualification Results Summary
LTC4316IDD#PBF	PRODUCTION
LTC4316IDD#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Hardware Ecosystem

Parts	Product Life Cycle	Description
Level Translators & Buffers 2
LTC4317	PRODUCTION	Dual I²C/SMBus Address Translator
LTC4318	PRODUCTION	Dual I2C/SMBus Address Translator

Tools & Simulations

Linduino 1

LTC4316 - DC2217A.ino

Design Tool 1

Address Translator Tool

Linduino is Analog Devices’ Arduino compatible system for developing and distributing firmware libraries and example code for our integrated circuits. Each Linduino-supported product includes an example main program, defined in the LTSketchbook/Part Number folder and driver code, defined in the LTSketchbook/libraries folder.

Linduino code repository on GitHub and instructions on how to use the code.

Purchase Linduino

Evaluation Kits

LTC4316 Demo Board | EasySMU: I2C Address Translator and Simple Multichannel Source Measurement Unit (Requires DC2026 and 12V power supply)

Buy Now View Details

Product Details

EasySMU is a single-channel ±12V/±40mA programmable-voltage/programmable-current source with accurate voltage/current measurement capability. The LTC4316 I²C address translator enables up to eight independent EasySMUs to be controlled by a single I²C master.

Resources

DC2591A - Design Files
7/28/2017

DC2591A - Schematic
7/28/2017

DC2591A - Demo Manual
7/28/2017

LTC4316 Demo Board | Single I2C/SMBus Address Translator (requires DC590 or DC2026)

Buy Now View Details

Product Details

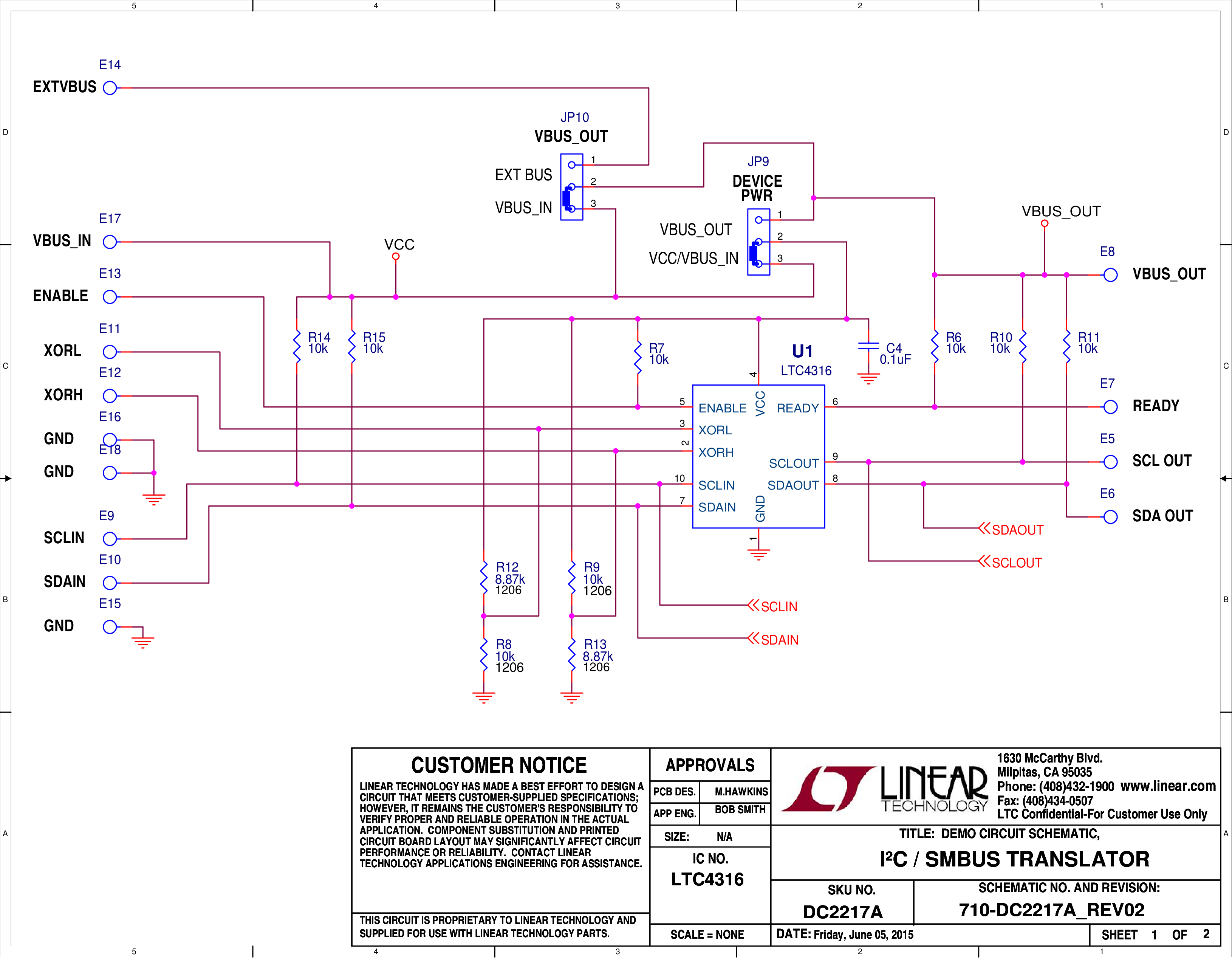

Demonstration circuit 2217A features the LTC4316 single I²C/SMBus address translator. The LTC4316 enables one or more I²C or SMBus slave devices to translate their hardwired address to a different address. This allows slaves with the same address to coexist on the same bus. Only discrete resistors are needed to select the new address and no software programming is required. Up to 127 different translations are available.
