LTC4302
PRODUCTIONAddressable 2-Wire Bus Buffers
- Part Models
- 8
- 1ku List Price
- Starting From $3.82
Overview
- Bidirectional Buffer for SDA and SCL Lines Increases Fanout
- Connect SDA and SCL Lines with 2-Wire Bus Commands
- Prevents SDA and SCL Corruption During Live Board Insertion and Removal from Backplane
- Compatible with I2C™ Standard Mode, I2C Fast Mode and SMBus Standards
- Rise Time Accelerators on SDA, SCL Lines
- 1V Precharge on SDA and SCL Lines
- 32 Unique Addresses from a Single ADDRESS Pin

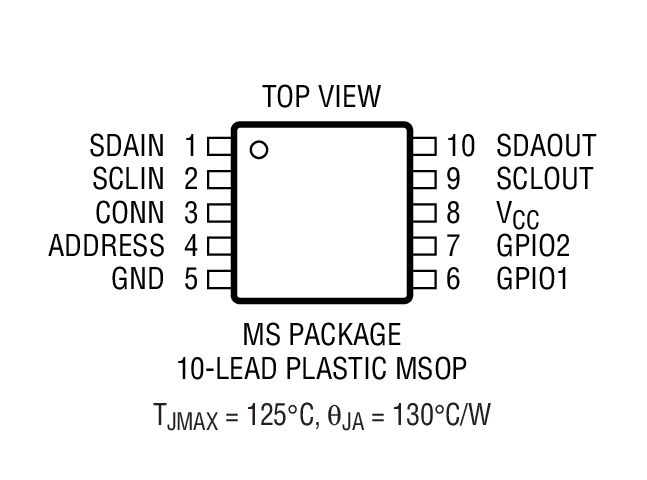

- Two General Purpose Inputs-Outputs (LTC4302-1)

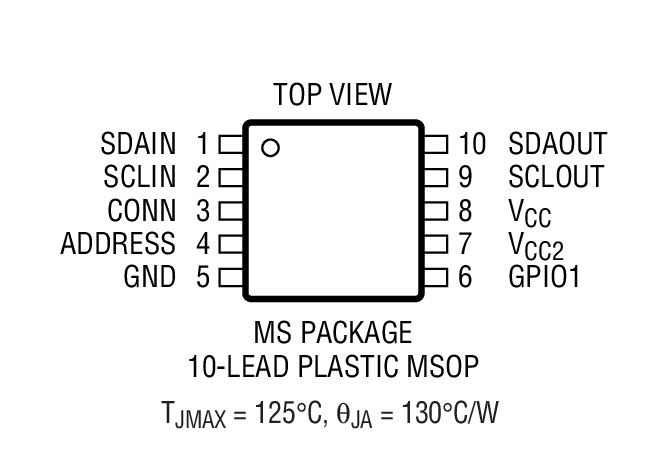

- Translates Between 5V and 3.3V Systems (LTC4302-2)
- Small 10-Pin MSOP Package

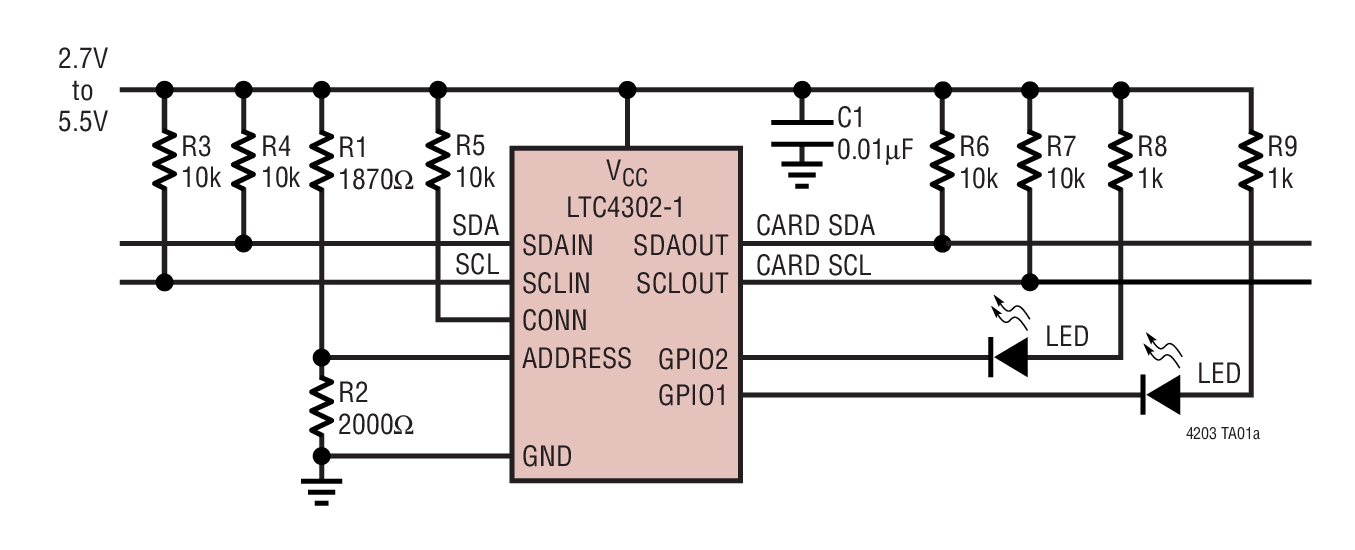

The LTC4302-1/LTC4302-2 addressable I2C bus and SMBus compatible bus buffers allow a peripheral board to be inserted and removed from a live backplane without corruption of the bus. The LTC4302-1/LTC4302-2 maintain electrical isolation between the backplane and peripheral board until their VCC supply is valid and a master device on the backplane side addresses the LTC4302-1/LTC4302-2 and commands them to connect. The LTC4302-1/LTC4302-2’s ADDRESS pin provides 32 possible addresses set by an external resistive divider between VCC and GND. The LTC4302-1/LTC4302-2 work with supply voltages ranging from 2.7V to 5.5V. The SDA and SCL inputs and outputs do not load the bus lines when VCC is low.

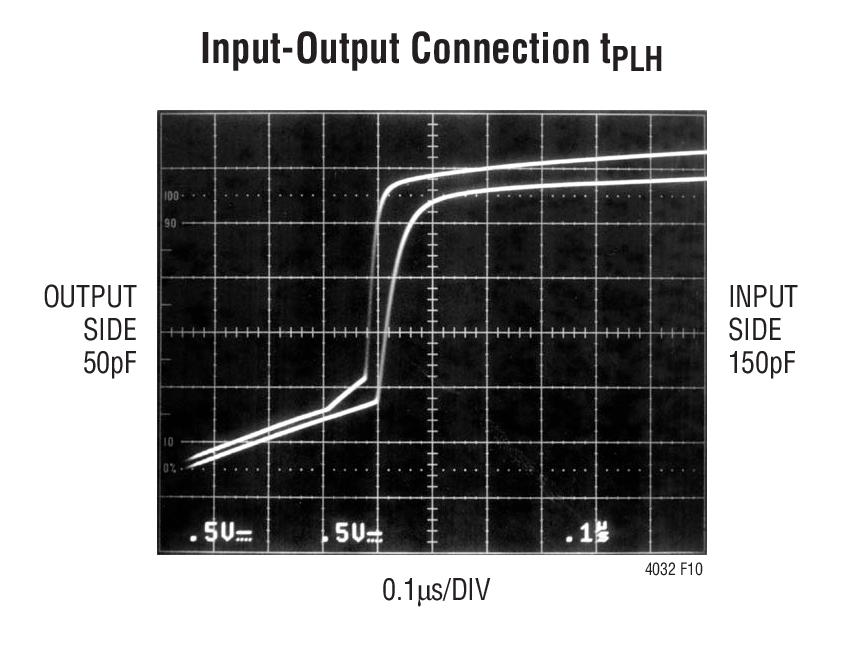

Rise time accelerator circuitry allows for heavier capacitive bus loading while still meeting system timing requirements. During insertion, the SDA and SCL lines are precharged to 1V to minimize bus disturbances. Two general purpose input/output pins (GPIOs) on the LTC4302-1 can be configured as inputs, open-drain outputs or push-pull outputs. The LTC4302-2 option replaces one GPIO pin with a second supply voltage pin VCC2, providing level shifting between systems with different supply voltages. The LTC4302-1/LTC4302-2 are available in a 10-pin MSOP package.
Applications
- Live Board Insertion
- 5V/3.3V Level Translator
- Servers
- Capacitance Buffer/Bus Extender
- Nested Addressing
Documentation
Data Sheet 1
Reliability Data 1
User Guide 1
Design Note 1
Technical Articles 2
Spec Notice 1
Video 2
Product Selector Card 2
ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.
| Part Model | Pin/Package Drawing | Documentation | CAD Symbols, Footprints, and 3D Models |
|---|---|---|---|
| LTC4302CMS-1#PBF | 10-Lead MSOP | ||
| LTC4302CMS-1#TRPBF | 10-Lead MSOP | ||
| LTC4302CMS-2#PBF | 10-Lead MSOP | ||
| LTC4302CMS-2#TRPBF | 10-Lead MSOP | ||
| LTC4302IMS-1#PBF | 10-Lead MSOP | ||
| LTC4302IMS-1#TRPBF | 10-Lead MSOP | ||
| LTC4302IMS-2#PBF | 10-Lead MSOP | ||
| LTC4302IMS-2#TRPBF | 10-Lead MSOP |
| Part Models | Product Lifecycle | PCN |
|---|---|---|
|
Feb 4, 2020 - 20_0130 Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC |
||
| LTC4302CMS-1#PBF | PRODUCTION | |
| LTC4302CMS-1#TRPBF | PRODUCTION | |
| LTC4302CMS-2#PBF | PRODUCTION | |
| LTC4302CMS-2#TRPBF | PRODUCTION | |
| LTC4302IMS-1#PBF | PRODUCTION | |
| LTC4302IMS-1#TRPBF | PRODUCTION | |
| LTC4302IMS-2#PBF | PRODUCTION | |
| LTC4302IMS-2#TRPBF | PRODUCTION | |
This is the most up-to-date revision of the Data Sheet.
