LTC3778

PRODUCTION

Wide Operating Range, No R_SENSE^™ Step-Down Controller

Part Models: 2
1ku List Price: Starting From $4.09

Viewing:

Overview

Wide V_IN Range: 4V to 36V
Sense Resistor Optional
True Current Mode Control
2% to 90% Duty Cycle at 200kHz
t_ON(MIN)≤ 100ns
Stable with Ceramic C_OUT
Dual N-Channel MOSFET Synchronous Drive
Power Good Output Voltage Monitor
±1% 0.6V Reference
Adjustable Current Limit
Adjustable Switching Frequency
Programmable Soft-Start
Output Overvoltage Protection
Optional Short-Circuit Shutdown Timer
Micropower Shutdown: I_Q ≤ 30µA

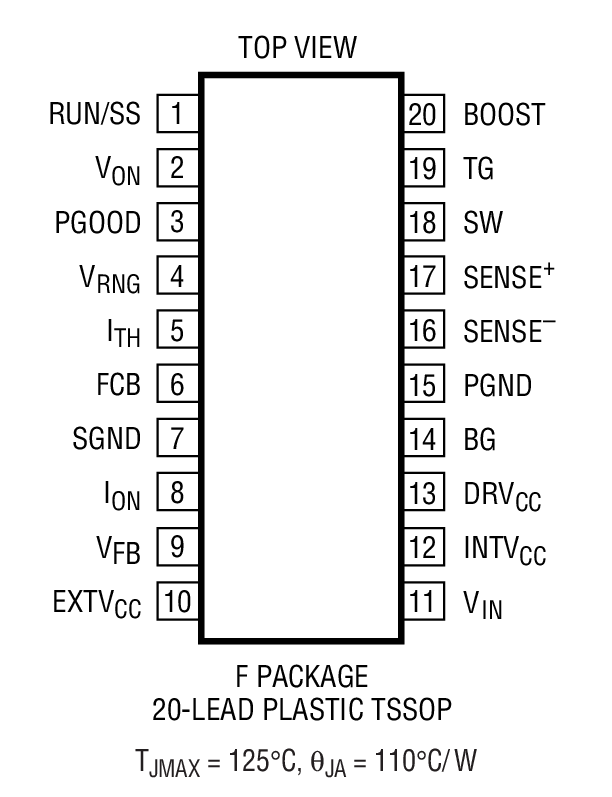

Available in a 1mm 20-Lead TSSOP Package

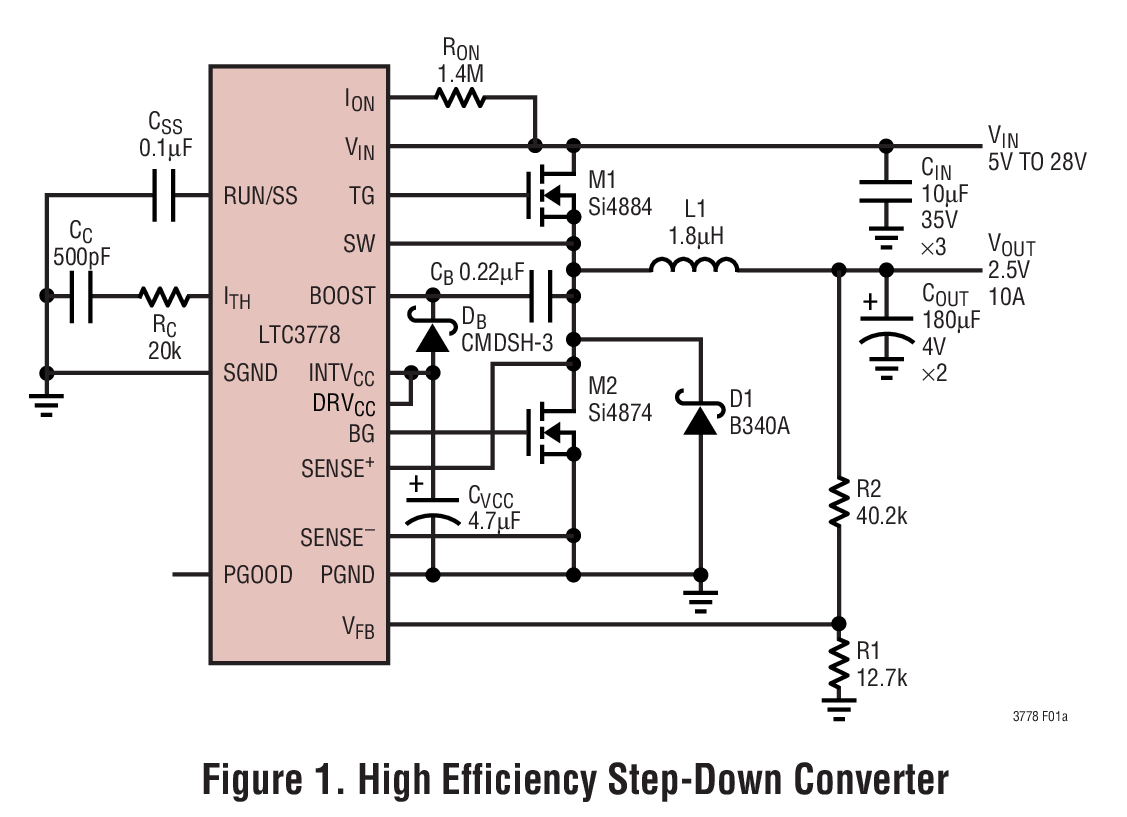

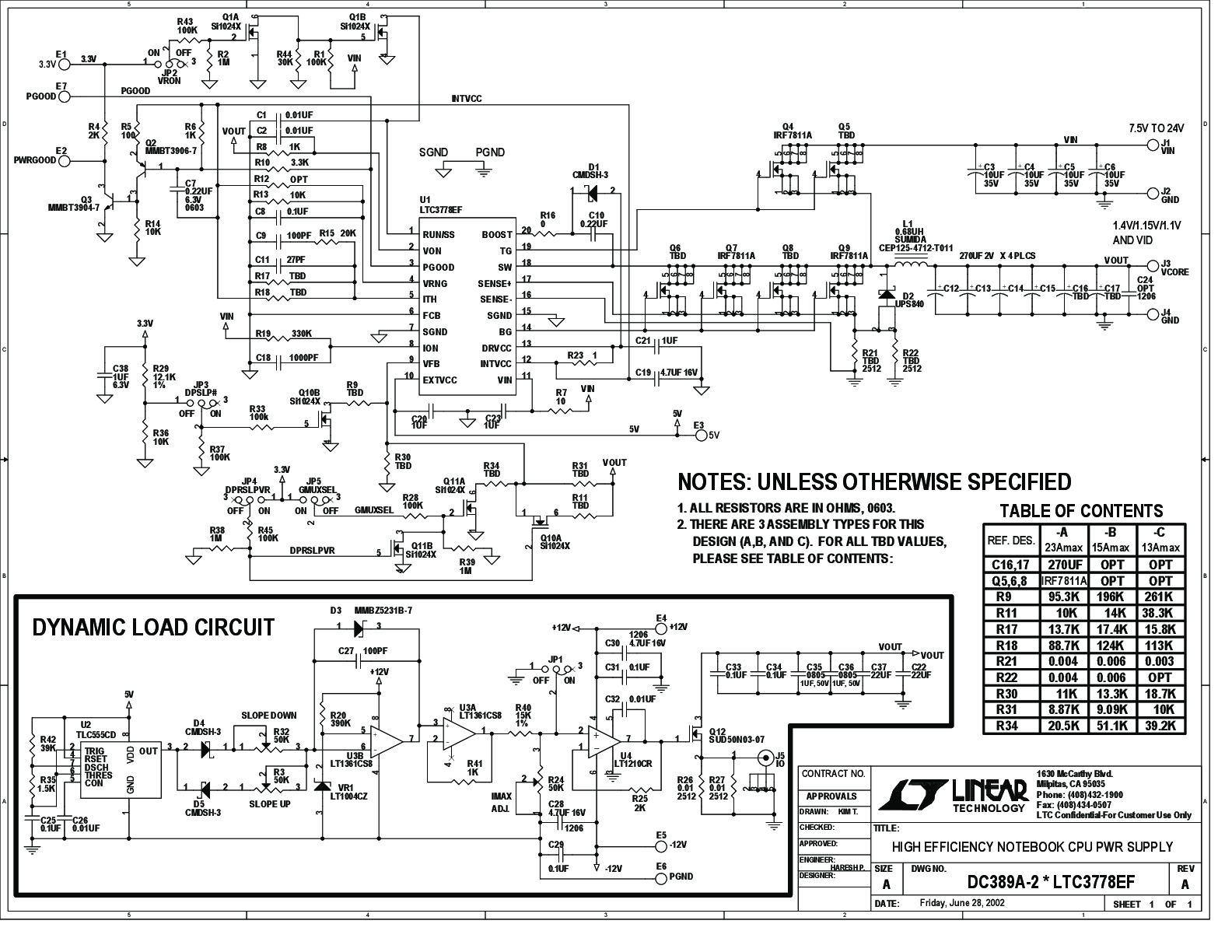

The LTC3778 is a synchronous step-down switching regulator controller for computer memory, automobile and other DC/DC power supplies. The controller uses a valley current control architecture to deliver very low duty cycles without requiring a sense resistor. Operating frequency is selected by an external resistor and is compensated for variations in V_IN and V_OUT.

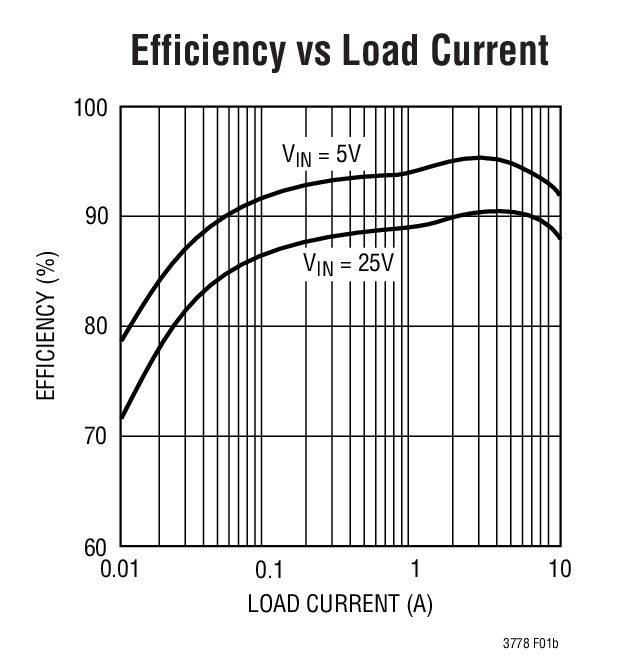

Discontinuous mode operation provides high efficiency operation at light loads. A forced continuous control pin reduces noise and RF interference, and can assist secondary winding regulation when the main output is lightly loaded. SENSE⁺ and SENSE^– pins provide true Kelvin sensing across the optional sense resistor or the sychronous MOSFET.

Fault protection is provided by internal foldback current limiting, an output overvoltage comparator, optional short-circuit shutdown timer and input undervoltage lockout. Soft-start capability for supply sequencing is accomplished using an external timing capacitor. The regulator current limit level is user programmable. Wide supply range allows operation from 4V to 36V at the input and from 0.6V up to (0.9)V_IN at the output.

Applications

Notebook and Palmtop Computers, PDAs
Battery Chargers
Distributed Power Systems
DDR Memory Power Supply
Automobile DC Power Supply

Part Models: 2
1ku List Price: Starting From $4.09

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC3778EF#PBF	20-Lead TSSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC3778EF#TRPBF	20-Lead TSSOP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Apr 6, 2022 - 22_0068 Laser Top Mark for ETSSOP and TSSOP Packages Assembled in ADPG [PNG] and UTL
		PCN22_0068_Form Material_Report Delta Qualification Matrix
LTC3778EF#PBF	PRODUCTION
LTC3778EF#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.
