LTC2492

PRODUCTION

24-Bit 2-/4-Channel ΔΣ ADC with Easy Drive Input Current Cancellation

Part Models: 4
1ku List Price: Starting From $3.54

Viewing:

Overview

Up to 2 Differential or 4 Single-Ended Inputs
Easy Drive^™ Technology Enables Rail-to-Rail Inputs with Zero Differential Input Current
Directly Digitizes High Impedance Sensors with Full Accuracy
600nV_RMS Noise
Integrated High Accuracy Temperature Sensor
GND to V_CC Input/Reference Common Mode Range
Programmable 50Hz, 60Hz, or Simultaneous 50Hz/60Hz Rejection Mode
2ppm INL, No Missing Codes
1ppm Offset and 15ppm Full-Scale Error
2x Speed Mode/Reduced Power Mode (15Hz Using Internal Oscillator and 80μA at 7.5Hz Output)
No Latency: Digital Filter Settles in a Single Cycle, Even After a New Channel is Selected
Single Supply 2.7V to 5.5V Operation (0.8mW)
Internal Oscillator
Tiny DFN 4mm × 3mm Package

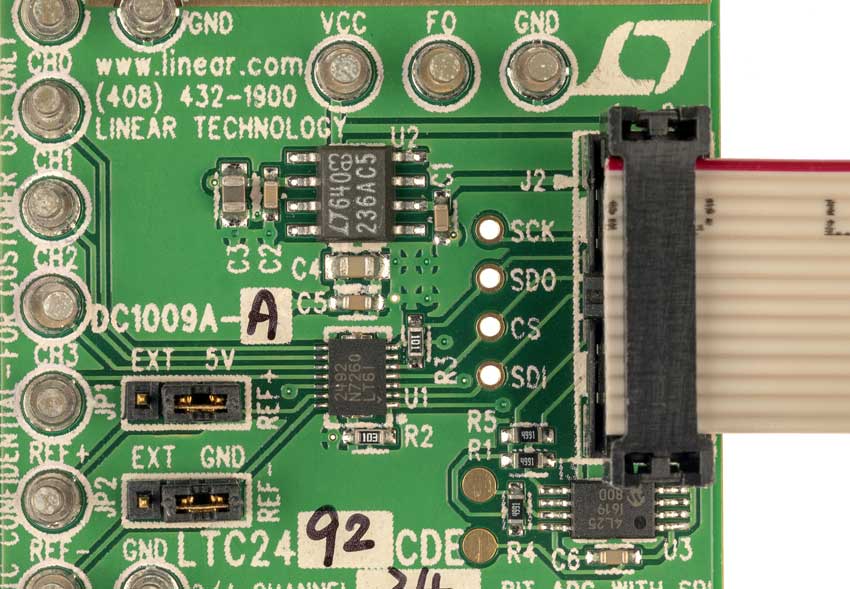

The LTC2492 is a 4-channel (2-channel differential), 24-bit, No Latency ΔΣ^™ ADC with Easy Drive technology. The patented sampling scheme eliminates dynamic input current errors and the shortcomings of on-chip buffering through automatic cancellation of differential input current. This allows large external source impedances and rail-to-rail input signals to be directly digitized while maintaining exceptional DC accuracy.

The LTC2492 includes a high accuracy temperature sensor and an integrated oscillator. This device can be configured to measure an external signal (from combinations of 4 analog input channels operating in single-ended or differential modes) or its internal temperature sensor. It can be programmed to reject line frequencies of 50Hz, 60Hz, or simultaneous 50Hz/60Hz and configured to double its output rate. The integrated temperature sensor offers 1/30th°C resolution and 2°C absolute accuracy.

The LTC2492 allows a wide common mode input range (0V to V_CC), independent of the reference voltage. Any combination of single-ended or differential inputs can be selected and the first conversion after a new channel selection is valid.

Applications

Direct Sensor Digitizer
Direct Temperature Measurement
Instrumentation
Industrial Process Control

Part Models: 4
1ku List Price: Starting From $3.54
