LT3495

PRODUCTION

650mA Micropower Low Noise Boost Converter with Output Disconnect

Part Models: 8
1ku List Price: Starting From $2.12

Viewing:

Overview

Low Quiescent Current
- 60μA in Active Mode
- 0.1μA in Shutdown Mode
Low Noise Control Scheme (Switching Frequency Always Stays Above Audible Range for LT3495/-1)
Integrated Power NPN:
- 650mA Current Limit (LT3495/B)
- 350mA Current Limit (LT3495-1/B-1)
Integrated Output Disconnect
Integrated Output Dimming
Wide input range: 2.5V to 16V
Wide output range: Up to 40V
Integrated feedback resistor
Tiny 10-Lead 3mm × 2mm DFN Package

The LT3495/LT3495B/LT3495-1/LT3495B-1 are low noise boost converters with integrated power switch, feedback resistor and output disconnect circuitry. The parts control power delivery by varying both the peak inductor current and switch off-time. This novel* control scheme results in low output voltage ripple as well as high efficiency over a wide load range. For the LT3495/LT3495-1, the off-time of the switch is not allowed to exceed a ﬁxed level, guaranteeing the switching frequency stays above the audio band for the entire load range. The parts feature a high performance NPN power switch with a 650mA and 350mA current limit for the LT3495/LT3495B and LT3495-1/LT3495B-1 respectively. The quiescent current is a low 60μA, which is further reduced to 0.1μA in shutdown. The internal disconnect circuitry allows the output voltage to be isolated from the input during shutdown. An auxiliary reference input (CTRL pin) overrides the internal 1.235V feedback reference with any lower value allowing full control of the output voltage during operation. The LT3495 series are available in a tiny 10-lead 3mm × 2mm DFN package.

Applications

OLED Power
Low Noise Power
MP3 Player

Part Models: 8
1ku List Price: Starting From $2.12

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT3495BEDDB#TRMPBF	10-Lead DFN (3mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3495BEDDB#TRPBF	10-Lead DFN (3mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3495BEDDB-1#TRMPBF	10-Lead DFN (3mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3495BEDDB-1#TRPBF	10-Lead DFN (3mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3495EDDB#TRMPBF	10-Lead DFN (3mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3495EDDB#TRPBF	10-Lead DFN (3mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3495EDDB-1#TRMPBF	10-Lead DFN (3mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3495EDDB-1#TRPBF	10-Lead DFN (3mm x 2mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Circuit Monitors 1
LTC2960	RECOMMENDED FOR NEW DESIGNS	36V Nano-Current Two-Input Voltage Monitor
Protection Switches & Controllers 1
LTC4365	RECOMMENDED FOR NEW DESIGNS	Overvoltage, Undervoltage and Reverse Supply Protection Controller

Tools & Simulations

LTspice 4

Models for the following parts are available in LTspice:

LT3495
LT3495-1
LT3495B
LT3495B-1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

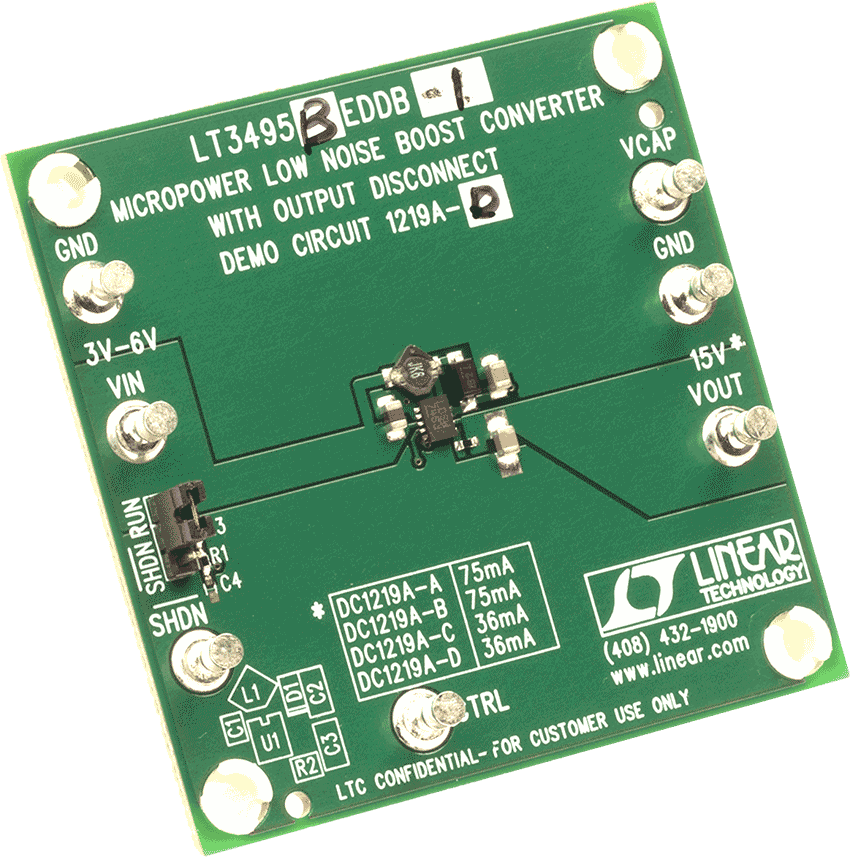

LT3495EDDB-1 Demo Board | Micropower 3-6VIN to 15VOUT at 36mA

Buy Now View Details

Product Details

Demonstration circuit 1219A-A, A-B, A-C and A-D are micropower low noise boost converters with output disconnect featuring the four different LT3495 versions: LT3495 (0.65A switch current, switching frequency above audible range), LT3495B (0.65A switch current), LT3495-1 (0.35 switch current, switching frequency above audible range) and LT3495B-1 (0.35A switch current). All versions convert a 3V-6V source to 15V. The A-A and A-B versions supply 75mA at 3V_IN, while the A-C and A-D supply 36mA.

All versions feature a low noise control scheme, integrated output disconnect function, dimming control and a single output sense resistor.
