LT3014

RECOMMENDED FOR NEW DESIGNS

20mA, 3V to 80V Low Dropout Micropower Linear Regulator

Part Models: 16
1ku List Price: Starting From $1.86

Viewing:

Overview

Wide Input Voltage Range: 3V to 80V
Low Quiescent Current: 7µA
Low Dropout Voltage: 350mV
Output Current: 20mA
LT3014HV Survives 100V Transients (2ms)
No Protection Diodes Needed
Adjustable Output from 1.22V to 60V
1µA Quiescent Current in Shutdown

Stable with 0.47µF Output Capacitor
Stable with Aluminum, Tantalum or Ceramic Capacitors
Reverse-Battery Protection
No Reverse Current Flow from Output
Thermal Limiting
Available in 5-Lead ThinSOT^™ and 8-Lead DFN Packages

The LT3014 is a high voltage, micropower low dropout linear regulator. The device is capable of supplying 20mA of output current with a dropout voltage of 350mV. Designed for use in battery-powered or high voltage systems, the low quiescent current (7µA operating and 1µA in shutdown) makes the LT3014 an ideal choice. Quiescent current is also well controlled in dropout.

Other features of the LT3014 include the ability to operate with very small output capacitors. The regulators are stable with only 0.47µF on the output while most older devices require between 10µF and 100µF for stability. Small ceramic capacitors can be used without the necessary addition of ESR as is common with other regulators. Internal protection circuitry includes reverse-battery protection, current limiting, thermal limiting and reverse current protection.

The device is available as an adjustable device with a 1.22V reference voltage. The LT3014 regulator is available in the 5-lead ThinSOT and 8-lead DFN packages.

Protected by U.S. Patents including 6118263, 6144250.


	Shutdown Pin
LT3014	Yes
LT3014B	No

Applications

Low Current High Voltage Regulators
Regulator for Battery-Powered Systems
Telecom Applications
Automotive Applications

Part Models: 16
1ku List Price: Starting From $1.86

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT3014EDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014EDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014ES5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014ES5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014HVEDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014HVEDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014HVES5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014HVES5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014HVIDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014HVIDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014HVIS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014HVIS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014IDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014IDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014IS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014IS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Protection Switches & Controllers 2
LT4363	RECOMMENDED FOR NEW DESIGNS	High Voltage Surge Stopper with Current Limit
LTC4364	RECOMMENDED FOR NEW DESIGNS	Surge Stopper with Ideal Diode

Parts	Product Life Cycle	Description
LT3010/LT3010-5		50mA, 3V to 80V Low Dropout Micropower Linear Regulator

Tools & Simulations

LTspice 1

LT3014 Demo Circuit - 20mA, 3V to 80V LDO µPower Linear Regulator (24V to 5V @ 20mA)

Models for the following parts are available in LTspice:

LT3014
LT3014B

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

LT3014ES5 Demo Board | Micropower LDO Regulator, 3V ≤ VIN ≤ 80V VOUT = 3.3V/5VOUT @ 20mA

Buy Now View Details

Product Details

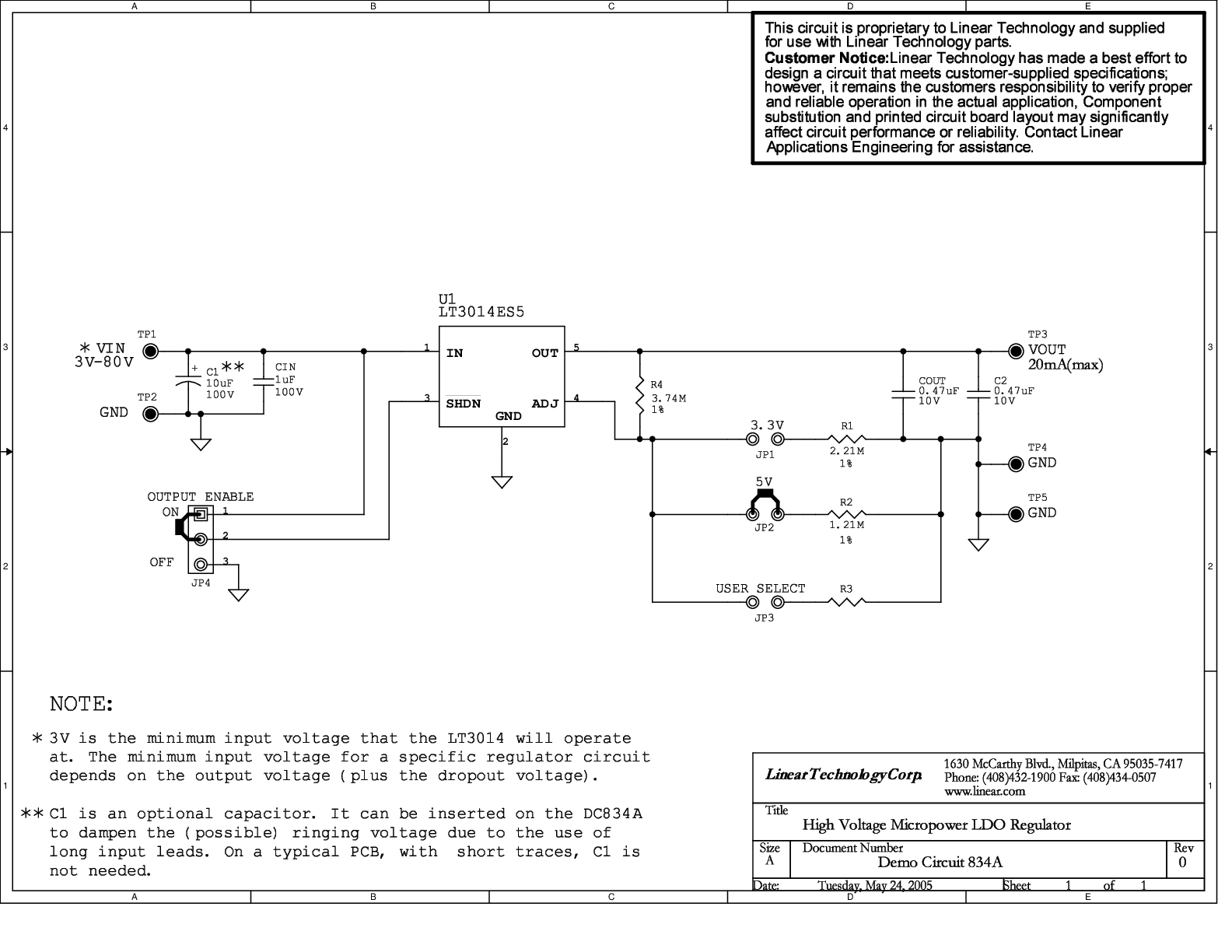

Demonstration circuit DC834 is a high voltage micropower voltage regulator using the LT3014 20mA output low dropout linear regulator, which comes in a tiny SOT-23 package. The DC834 has an input voltage range from 3V to 80V. The demo board's jumper-selectable output voltage can be set to 3.3V, 5V or a user-defined value between 1.22V and 60V. The quiescent is typically only 6uA in operation, and less than 1µA in shutdown.

Resources

DC834A - Demo Manual
9/24/2009

DC834A - Schematic
9/24/2009

DC834A - Design File
9/24/2009
