LT3014B

RECOMMENDED FOR NEW DESIGNS

20mA, 3V to 80V Low Dropout Micropower Linear Regulator

Part Models: 18
1ku List Price: Starting From $1.88

Viewing:

Overview

Wide Input Voltage Range: 3V to 80V
Low Quiescent Current: 7μA

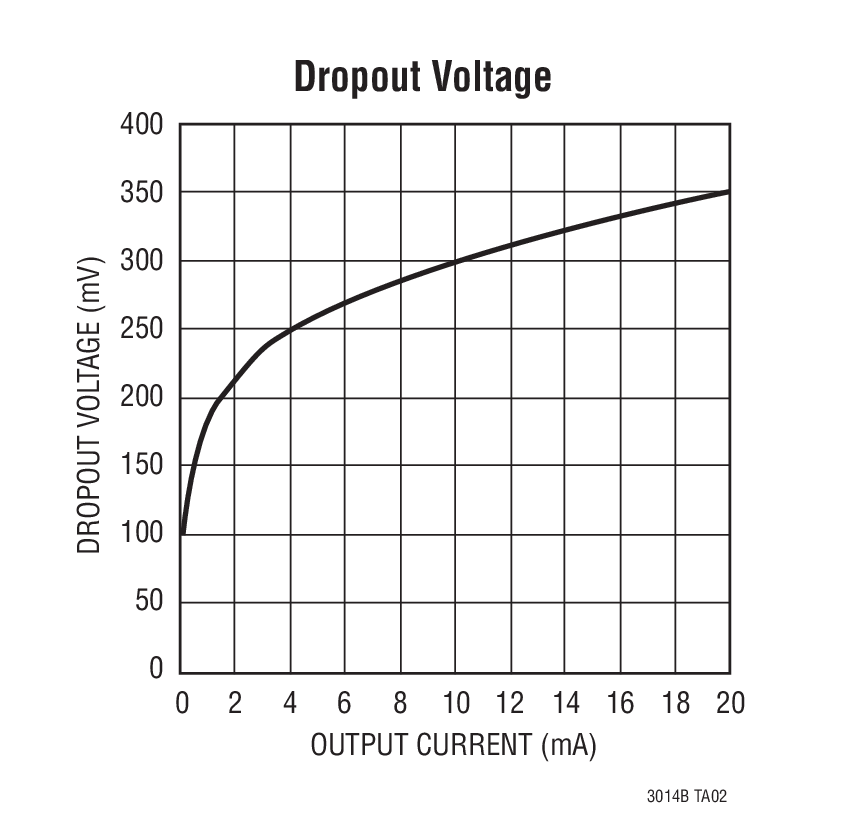

Low Dropout Voltage: 350mV
Output Current: 20mA
LT3014BHV Survives 100V Transients (2ms)
No Protection Diodes Needed
Adjustable Output from 1.22V to 60V

Stable with 0.47μF Output Capacitor
Stable with Aluminum, Tantalum or Ceramic Capacitors
Reverse-Battery Protection
No Reverse Current Flow from Output
Thermal Limiting

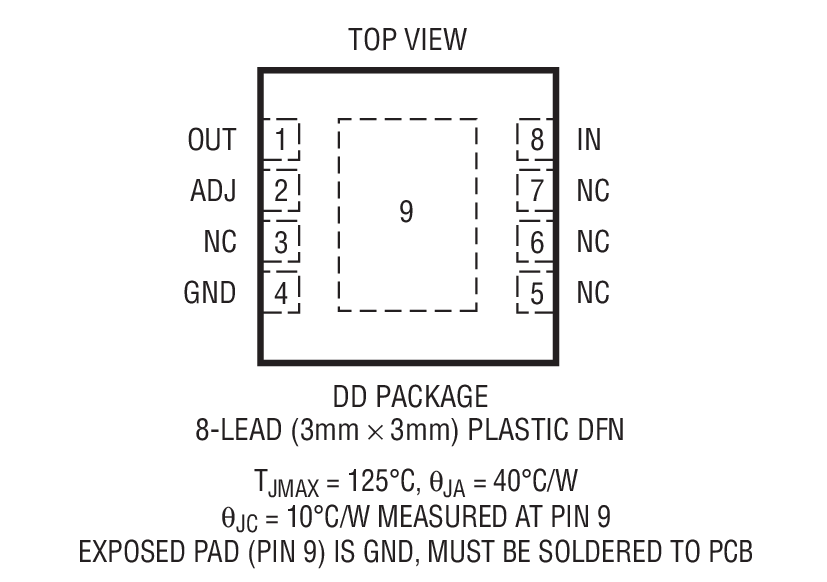

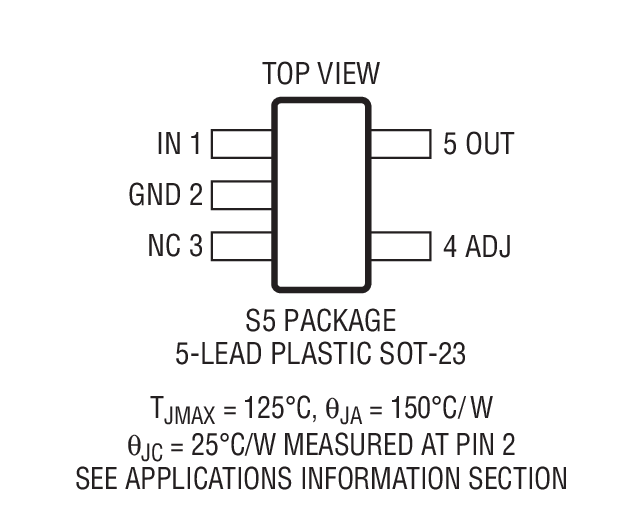

Available in 5-Lead ThinSOT^™ and 8-Lead DFN Packages

The LT3014B is a high voltage, micropower low dropout linear regulator. The device is capable of supplying 20mA of output current with a dropout voltage of 350mV. Designed for use in battery-powered or high voltage systems, the low quiescent current (7μA operating) makes the LT3014B an ideal choice. Quiescent current is also well controlled in dropout.

Other features of the LT3014B include the ability to operate with very small output capacitors. The regulators are stable with only 0.47μF on the output while most older devices require between 10μF and 100μF for stability. Small ceramic capacitors can be used without the necessary addition of ESR as is common with other regulators. Internal protection circuitry includes reverse-battery protection, current limiting, thermal limiting and reverse current protection.

The device is available as an adjustable device with a 1.22V reference voltage. The LT3014B regulator is available in the 5-lead ThinSOT and 8-lead DFN packages.


	Shutdown Pin
LT3014	Yes
LT3014B	No

Applications

Low Current High Voltage Regulators
Regulator for Battery-Powered Systems
Telecom Applications
Automotive Applications

Part Models: 18
1ku List Price: Starting From $1.88

Documentation

Data Sheet 1

LT3014B: 20mA, 3V to 80V Low Dropout Micropower Linear Regulator Data Sheet 11/14/2014

Reliability Data 1

R386 Reliability Data 03/22/2018

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT3014BEDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014BEDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014BES5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014BES5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014BHVEDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014BHVEDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014BHVES5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014BHVES5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014BHVIDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014BHVIDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014BHVIS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014BHVIS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014BIDD#PBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014BIDD#TRPBF	8-Lead DFN (3mm x 3mm x 0.75mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014BIS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014BIS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014BMPS5#TRMPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT3014BMPS5#TRPBF	5-Lead TSOT-23	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Protection Switches & Controllers 2
LTC4364	RECOMMENDED FOR NEW DESIGNS	Surge Stopper with Ideal Diode
LT4363	RECOMMENDED FOR NEW DESIGNS	High Voltage Surge Stopper with Current Limit

Parts	Product Life Cycle	Description
LT3010/LT3010-5		50mA, 3V to 80V Low Dropout Micropower Linear Regulator

Tools & Simulations

LTspice 1

LT3014B Demo Circuit - Automotive 5V Supply (5.4-80V to 5V @ 20mA)

Models for the following parts are available in LTspice:

LT3014
LT3014B

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.
