LT1776

PRODUCTION

Wide Input Range, High Efficiency, Step-Down Switching Regulator

Part Models: 6
1ku List Price: Starting From $3.54

Viewing:

Overview

Wide Input Range: 7.4V to 40V
Tolerates Input Transients to 60V
700mA Peak Switch Rating
Adaptive Switch Drive Maintains Efficiency at High Load Without Pulse Skipping at Light Load
True Current Mode Control
200kHz Fixed Operating Frequency
Synchronizable to 400kHz
Low Supply Current in Shutdown: 30µA

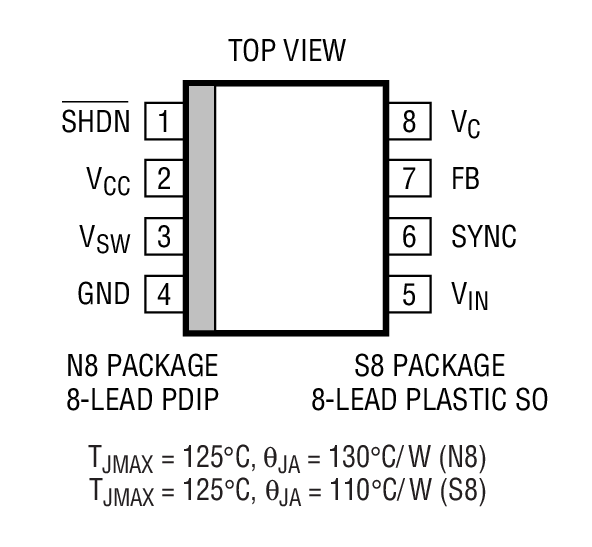

Available in 8-Pin SO and PDIP Packages

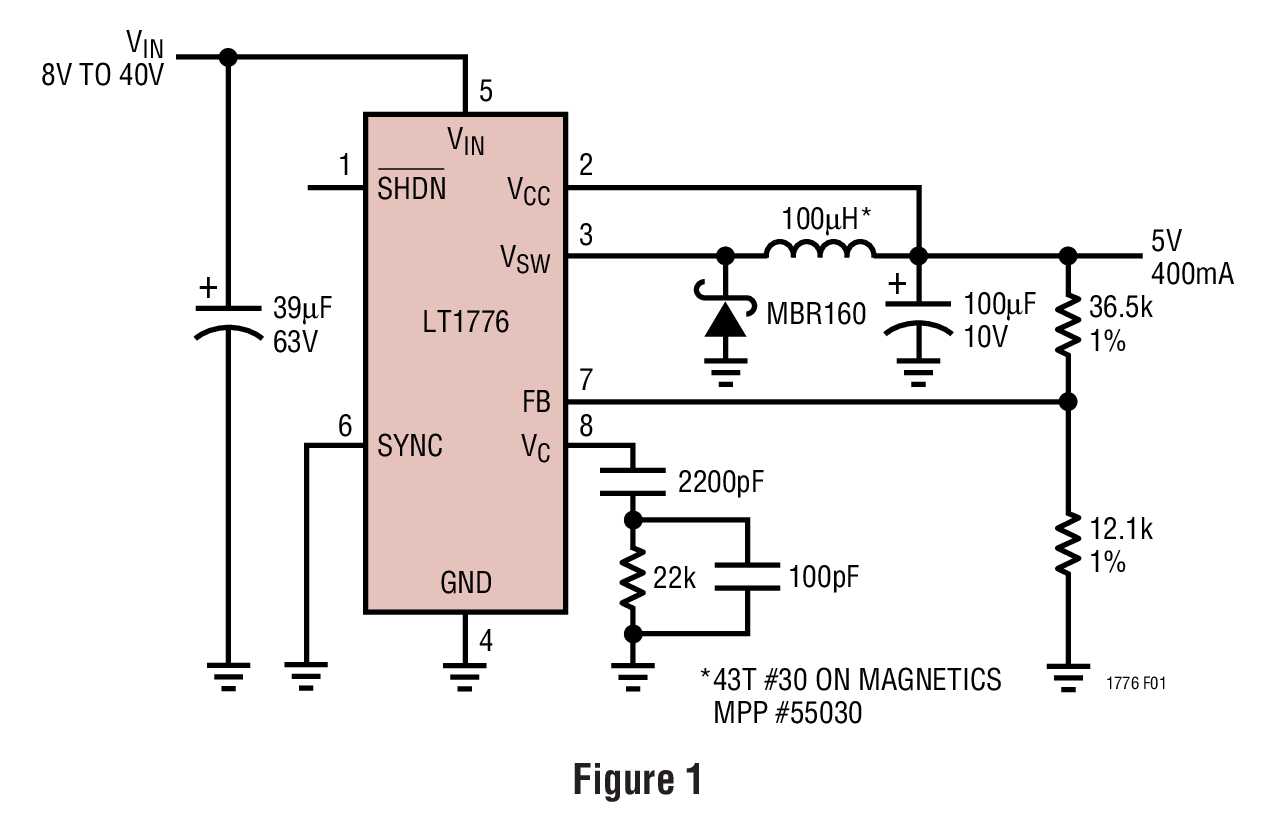

The LT1776 is a wide input range, high efficiency Buck (step-down) switching regulator. The monolithic die includes all oscillator, control and protection circuitry. The part can accept input voltages as high as 60V and contains an output switch rated at 700mA peak current. Current mode control delivers excellent dynamic input supply rejection and short-circuit protection.

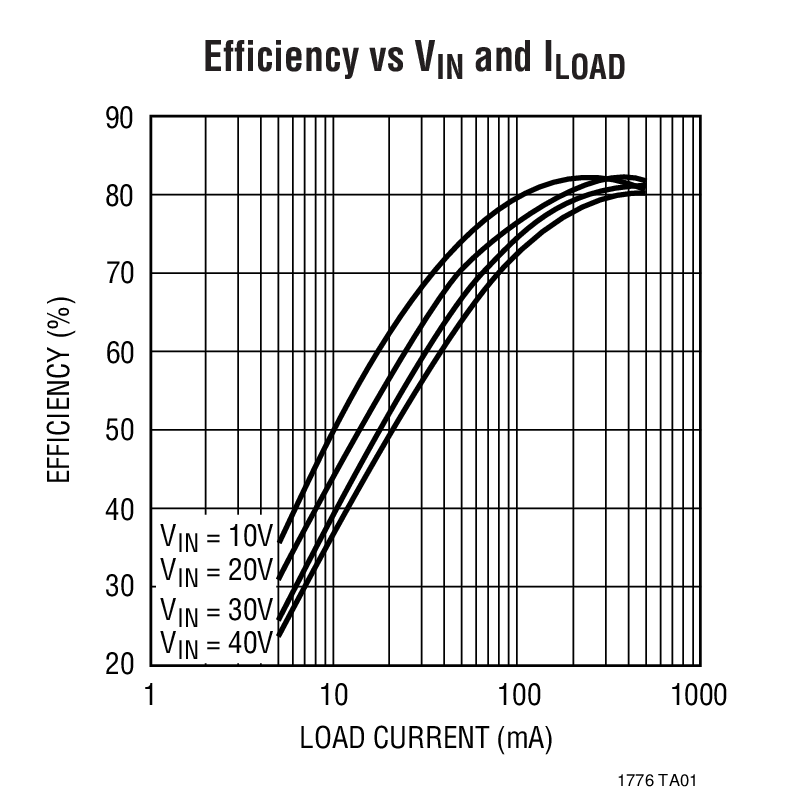

The LT1776 contains several features to enhance efficiency. The internal control circuitry is normally powered via the V_CC pin, thereby minimizing power drawn directly from the V_IN supply. The action of the LT1776 switch circuitry is also load dependent. At medium to high loads, the output switch circuitry maintains fast rise time for good efficiency. At light loads, rise time is deliberately reduced to avoid pulse skipping behavior.

The available SO-8 package and 200kHz switching frequency allow for minimal PC board area requirements.

Applications

Automotive DC/DC Converters
Cellular Phone Battery Charger Accessories
IEEE 1394 Step-Down Converters

Part Models: 6
1ku List Price: Starting From $3.54

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT1776CN8#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1776CS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1776CS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1776IN8#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1776IS8#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LT1776IS8#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Oct 8, 2024 - 24_0234 Migrating Bottom Trace Code Marking to Top Side Laser Marking for PDIP Package
		PCN24_0234_Form Material_Report Marking Comparison
LT1776CN8#PBF	PRODUCTION
LT1776IN8#PBF	PRODUCTION
Oct 11, 2022 - 22_0241 Epoxy Change from Henkel 8290 to 8290A for PDIP Package
		PCN22_0241_Form Material_Report Qualification Results Summary
LT1776CN8#PBF	PRODUCTION
LT1776IN8#PBF	PRODUCTION
Aug 6, 2022 - 22_0172 Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG]
		PCN22_0172_Form Material_Report Delta Qualification Matrix
LT1776CN8#PBF	PRODUCTION
LT1776IN8#PBF	PRODUCTION
Oct 24, 2024 - 24_0246 Migrating Bottom Trace Code Marking to Top Side Laser Marking for SOIC_N Package
		PCN24_0246_Form Material_Report Marking Comparison Delta Qualification Matrix
LT1776CS8#PBF	PRODUCTION
LT1776CS8#TRPBF	PRODUCTION
LT1776IS8#PBF	PRODUCTION
LT1776IS8#TRPBF	PRODUCTION
Oct 12, 2022 - 22_0255 Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 2 of 2)
		PCN22_0255_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LT1776CS8#PBF	PRODUCTION
LT1776CS8#TRPBF	PRODUCTION
LT1776IS8#PBF	PRODUCTION
LT1776IS8#TRPBF	PRODUCTION
Jun 11, 2021 - 21_0060 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM
		PCN21_0060_Form Material_Report Delta Qualification Matrix
LT1776CS8#PBF	PRODUCTION
LT1776CS8#TRPBF	PRODUCTION
LT1776IS8#PBF	PRODUCTION
LT1776IS8#TRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.
