Features and Benefits
- Low insertion loss: 0.3 dB
- High third order intercept: +63 dBm
- Isolation: 30 dB
- Single positive supply: +3 to +8V
- SMT package: MSOP8

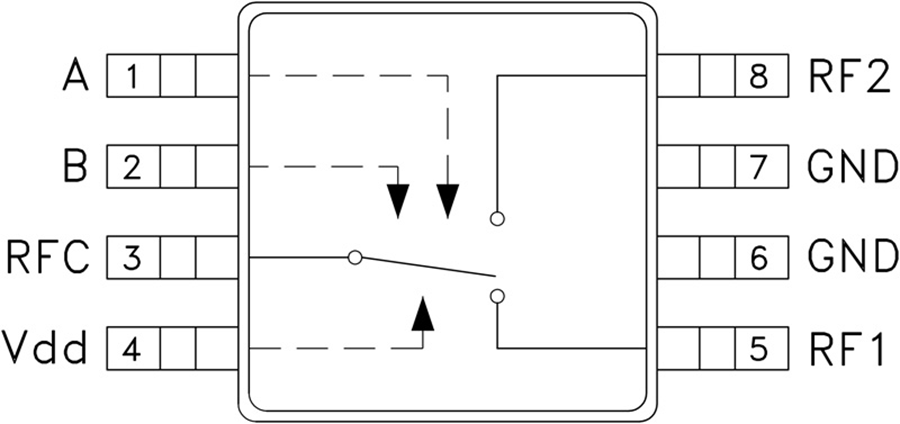

The HMC574AMS8E is low-cost SPDT switch in 8-lead MSOP packages for use in transmit/receive applications which requires very low distortion at high incident power levels. The device can control signals from DC to 3 GHz and is especially suited for Cellular/3G infrastructure, WiMAX and WiBro applications with only 0.3 dB typical insertion loss. The design provides 5 watt power handling performance and +63 dBm third order intercept at +8 Volt bias. RF1 and RF2 are reflective shorts when “Off.”
- Cellular/3G infrastructure
- Private mobile radio handsets
- WLAN, WiMAX and WiBro
- Automotive telematics
- Test equipment
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
