HMC558A

RECOMMENDED FOR NEW DESIGNS

HMC558A

5.5 GHz to 14 GHz, GaAs MMIC Fundamental Mixer

RECOMMENDED FOR NEW DESIGNS

Part Details

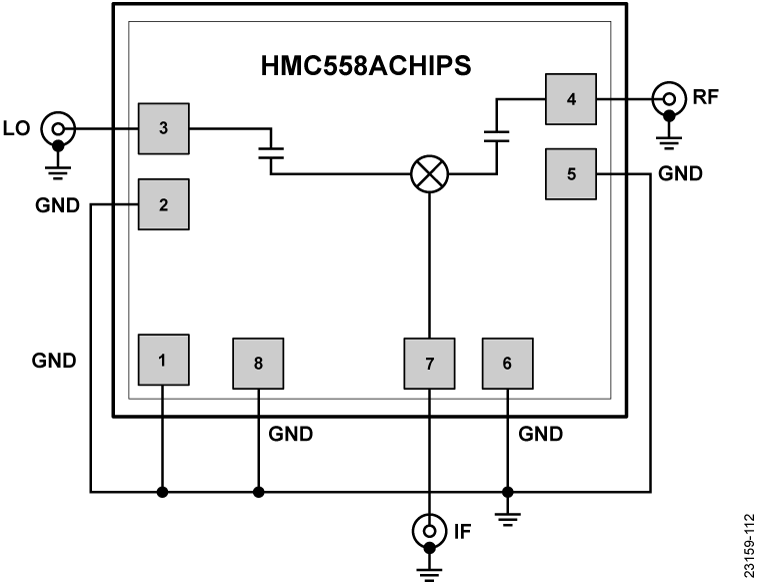

HMC558ACHIPS Functional Block Diagram slide

Not the part you were looking for?

Go to Product Selection Table

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 5

1ku List Price

price unavailable

Features

Conversion loss: 7.5 dB typical at 5.5 GHz to 10 GHz
Local oscillator (LO) to radio frequency (RF) isolation: 45 dB typical at 5.5 GHz to 10 GHz
LO to intermediate frequency (IF) isolation: 45 dB typical at 10 GHz to 14 GHz
Input third-order intercept (IIP3): 21 dBm typical at 10 GHz to 14 GHz

Input P1dB: 11.5 dBm typical at 10 GHz to 14 GHz
Input second-order intercept (IIP2): 55 dBm typical at 10 GHz to 14 GHz
Passive double-balanced topology
Wide IF bandwidth: dc to 6 GHz

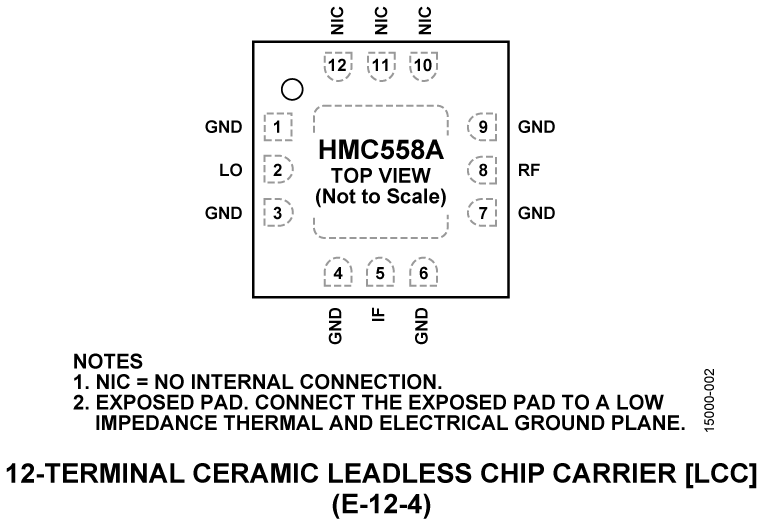

12-lead ceramic leadless chip carrier package

Additional Details

The HMC558A is a general-purpose, double-balanced mixer in a leadless RoHS compliant SMT package that can be used as an upconverter or downconverter between 5.5 GHz and 14 GHz. This mixer is fabricated in a gallium arsenide (GaAs) metal semi-conductor field effect transistor (MESFET) process, and requires no external components or matching circuitry.

The HMC558A provides excellent LO to RF and LO to IF isolation due to optimized balun structures, and operates with LO drive levels as low as 9 dBm. The RoHS compliant HMC558A eliminates the need for wire bonding, and is compatible with high volume surface-mount manufacturing techniques.

Applications

Point to point microwave radios
Point to multipoint radios
Military end use
Instrumentation, automatic test equipment (ATE) and sensors

View All Documentation

Ask a Question

Submit your question below and we will return the best answer from ADI’s knowledge database:

Other places you can find help

Support

Analog Devices Support Portal is a one-stop shop to answer all your ADI questions.

Visit the ADI Support Page

Ask the ADI community for help.

Ask the EngineerZone Community

FAQs

Sales & Ordering FAQs

Part Models 5

1ku List Price

price unavailable

Documentation

Technical Documents 2

HMC558A: 5.5 GHz to 14 GHz, GaAs MMIC Fundamental Mixer Data Sheet (Rev.C) 12/09/2015

HMC558ACHIPS: 5.5 GHz to 14 GHz, GaAs MMIC Fundamental Mixer Data Sheet (Rev.0) 03/24/2020

Reference Materials 1

RF, Microwave, and Millimeter Wave Product Selection Guide 07/13/2018

Design Resources 5

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC558A	CHIPS OR DIE	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
HMC558A-SX	CHIPS OR DIE	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
HMC558ALC3B	12-Lead LCC (2.9mm x 2.9mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
HMC558ALC3BTR	12-Lead LCC (2.9mm x 2.9mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys
HMC558ALC3BTR-R5	12-Lead LCC (2.9mm x 2.9mm w/ EP)	HTML Material Declaration HTML Reliablity Data	Ultra Librarian SamacSys

HMC558A

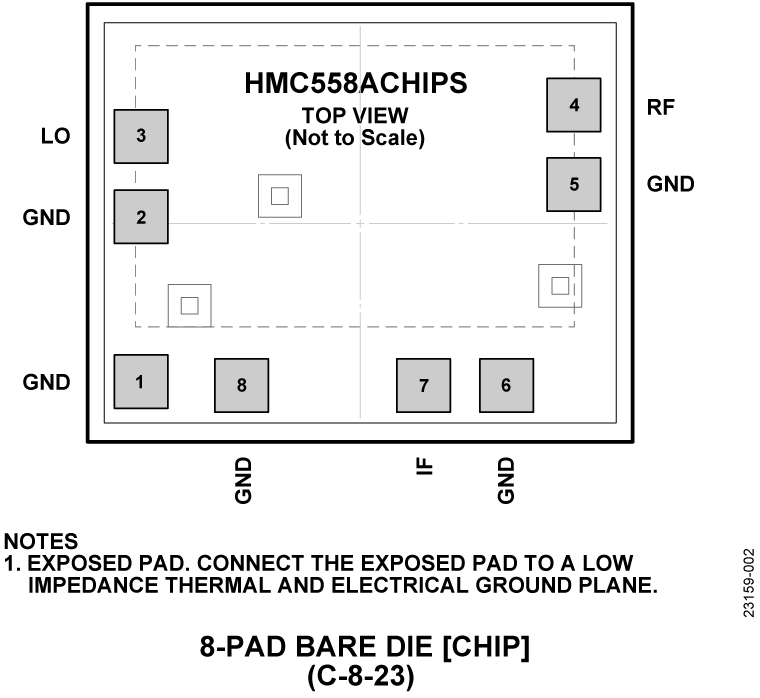

Pin/Package Drawing
CHIPS OR DIE
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

HMC558A-SX
Pin/Package Drawing
CHIPS OR DIE
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

HMC558ALC3B
Pin/Package Drawing
12-Lead LCC (2.9mm x 2.9mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

HMC558ALC3BTR
Pin/Package Drawing
12-Lead LCC (2.9mm x 2.9mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

HMC558ALC3BTR-R5
Pin/Package Drawing
12-Lead LCC (2.9mm x 2.9mm w/ EP)
Documentation

HTML Material Declaration

HTML Reliablity Data

CAD Symbols, Footprints, and 3D Models
Ultra Librarian
SamacSys

Software & Part Ecosystem

Evaluation Kit

EVAL-HMC558A

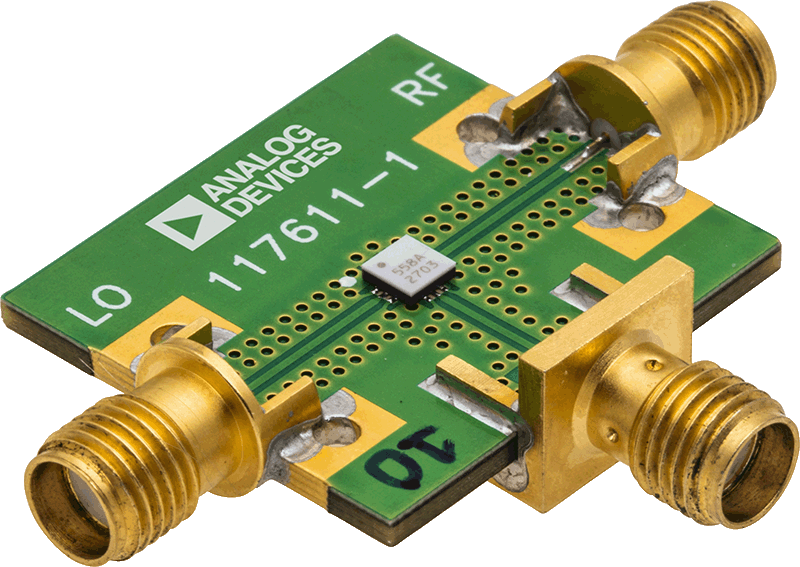

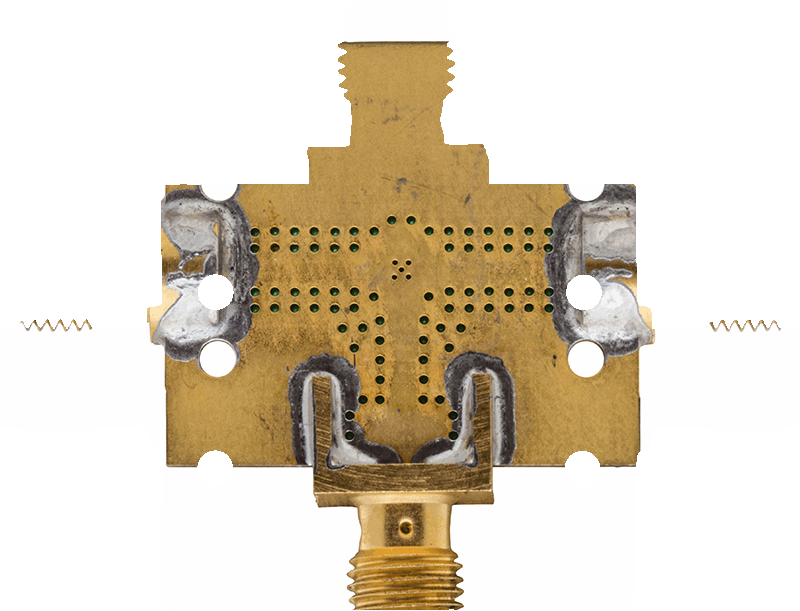

HMC558A Evaluation Board

HMC558A Evaluation Board

Download

EVAL-HMC558A

HMC558A Evaluation Board

Buy Now View Details

Product Detail

This page contains ordering information for evaluating the HMC558A.

Resources

ZIP

Land Pattern and POD

63.15 K

ZIP

Land Pattern and Solder Stencil

40.99 K

ZIP

HMC558A/HMC292ALC3B/HMC787A Gerber Files

61.01 K

EVAL-HMC558A

HMC558A Evaluation Board

Tools & Simulations

S-Parameter 1

Simulation Model

S-Parameter

HMC558A S-Parameters

59.48 KB

ADIsimRF

ADIsimRF is an easy-to-use RF signal chain calculator. Cascaded gain, noise, distortion and power consumption can be calculated, plotted and exported for signal chains with up to 50 stages. ADIsimRF also includes an extensive data base of device models for ADI’s RF and mixed signal components.

Open Tool
