HMC535

RECOMMENDED FOR NEW DESIGNS

Phase-Locked Oscillator SMT, 14.7 - 15.4 GHz

Part Models: 2
1ku List Price: price unavailable

Viewing:

Overview

Pout: +9 dBm
Phase Noise:
-110 dBc/Hz @100 KHz Typ.

Single Supply: +5V @ 340 mA,
12V @ 28 mA
QFN Leadless SMT Package, 16 mm²

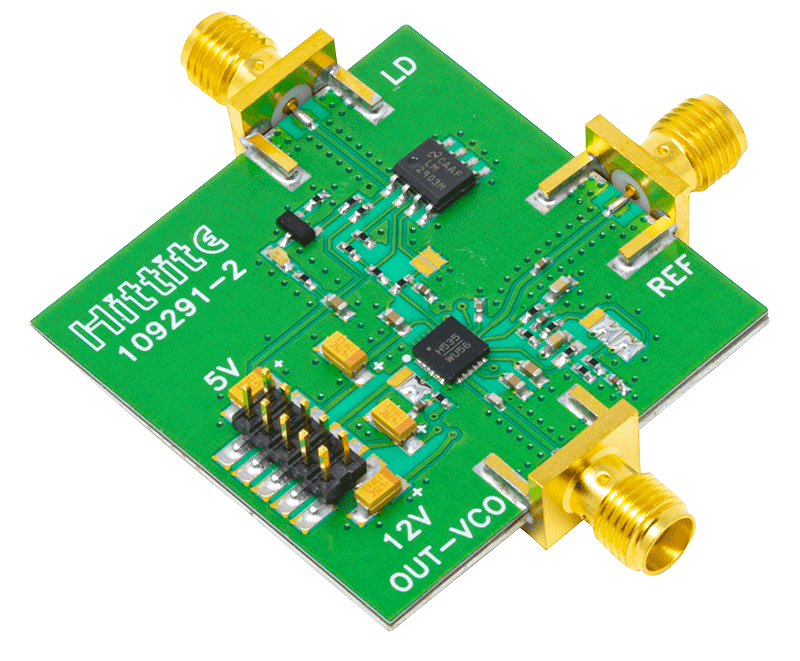

The HMC535LP4(E) is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC PLO. The PLO’s phase noise performance is excellent over temperature, shock, and process due to the oscillator’s monolithic structure. Power output is +9 dBm typical from a +5V supply voltage.

All functions (VCO, Op-Amp, PFD, Prescaler) are fully integrated while providing allowances for off-chip customer specific loop components. The PLO MMIC accepts a single-ended or a differential reference oscillator input signal in the range of 230 to 240 MHz, and a digital Lock Detector (LD) output is provided to confirm the status of the loop. The phase-locked oscillator is packaged in a leadless QFN 4×4 mm surface mount package.

APPLICATIONS

VSAT Radio
Point-to-Point & Point-to-Multi-Point Radio
Test Equipment & Industrial Controls
Military End-Use

Part Models: 2
1ku List Price: price unavailable

Documentation

Data Sheet 1

HMC535 Data Sheet 04/22/2015

Application Note 1

Determining the FM Bandwidth of a Wideband Varactor Tuned VCO 10/14/2016

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
HMC535LP4E	24-Lead QFN (4mm x 4mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
HMC535LP4ETR	24-Lead QFN (4mm x 4mm w/ EP)	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Apr 19, 2022 - 22_0048 Addition of ASE Korea as an Alternate Assembly Site for Select LFCSP Products
		PCN22_0048_Form Material_Report Qualification Results Summary Detailed Change Description
HMC535LP4E	PRODUCTION
HMC535LP4ETR	PRODUCTION
