HMC310

Obsolete

GaAs MMIC Transceiver SMT, 2.4 - 2.5 GHz

Viewing:

Overview

Tx Gain: 15 dB, Rx Gain: 13 dB
Tx 1 dB Compression Point: 5 dBm
Rx Noise Figure: 3 dB @ 2.4 GHz

Single Positive Supply: +3V
No External Matching Required

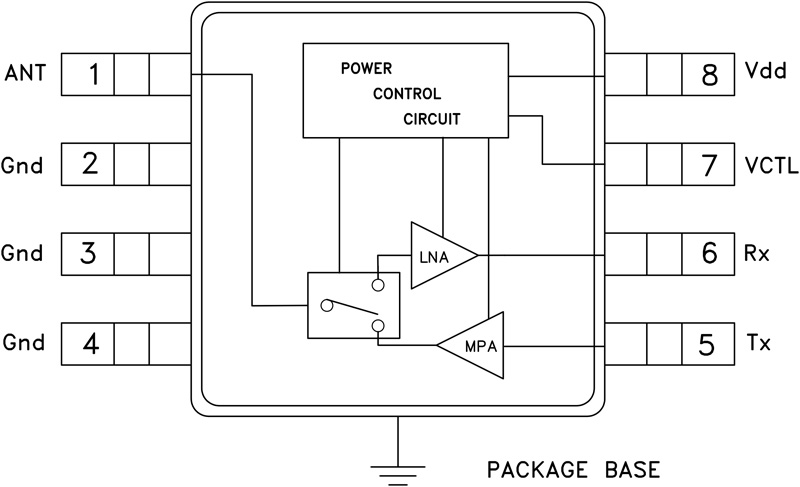

The HMC310MS8G(E) is a multifunction RFIC that incorporates a power amplifier (PA) and low noise amplifier (LNA) with a transmit/ receive switch. These RFICs offer 15 dB gain and +5 dBm P1dB in the transmit mode and 13 dB of gain with an overall noise figure of 3 dB when in receive mode. Transmit and receive performance levels have been selected to meet the BLUETOOTH Class 2 & 3 requirements when used in conjunction with 2.4 GHz ASICs such as National Semiconductor’s LMX3162. This low current and low cost transceiver requires no external circuitry to operate the amplifier power down features, and is available in the industry standard MSOP8G package, which is 0.118” x 0.190” (3.0 x 4.9mm).
