Features and Benefits
- Dual output frequency range
- fOUT = 9.65 GHz to 10.41 GHz
- fOUT/2 = 4.825 GHz to 5.205 GHz
- Output power (POUT): 11 dBm
- Single-sideband (SSB) phase noise: −114 dBc/Hz at 100 kHz
- No external resonator needed

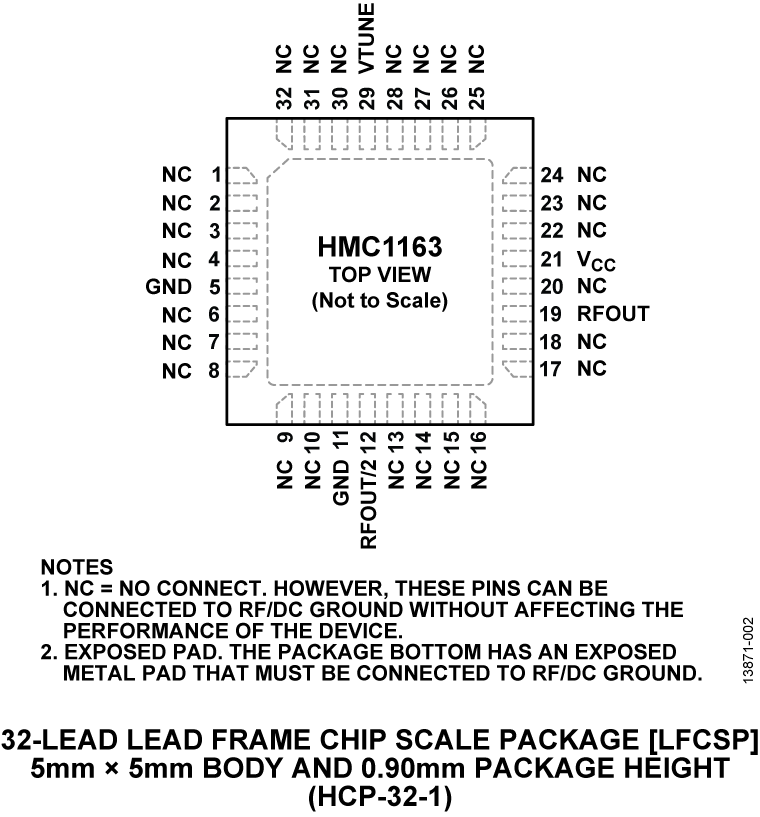

- RoHS-compliant, 5 mm × 5 mm, 32-lead LFCSP: 25 mm²

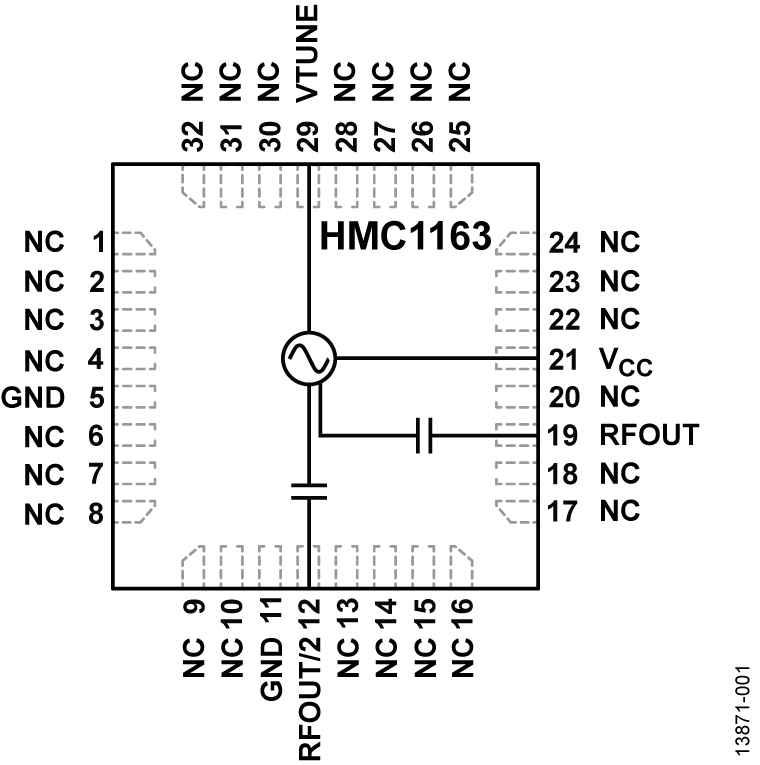

The HMC1163 is a monolithic microwave integrated circuit (MMIC), voltage controlled oscillator (VCO) that integrates a resonator, a negative resistance device, and a varactor diode, and features a half frequency output.
Because of the monolithic construction of the oscillator, the output power and phase noise performance are excellent over temperature.
The output power is 11 dBm typical from a 5 V supply voltage. The VCO is housed in a RoHS compliant LFCSP and requires no external matching components.
- Point to point and multipoint radios
- Test equipment and industrial controls
- Very small aperture terminals (VSATs)
Product Lifecycle Recommended for New Designs
This product has been released to the market. The data sheet contains all final specifications and operating conditions. For new designs, ADI recommends utilization of these products.
