ADPL20502

RECOMMENDED FOR NEW DESIGNS

600mV to 5.5V Input, 2A Boost Converter with True Shutdown

Data Sheet (Rev. 0) Product Selection Table
Viewing:

Overview

  • 500nA Quiescent Supply Current from Output
  • Output Short-Circuit Protection
  • True Shutdown Mode
    • 1nA Shutdown Current
    • Output Disconnects from Input
    • No Reverse-Current with Any Voltage on VOUT
  • 96% Peak Efficiency, 90% or Higher at 500μA
  • Typical 800mA Output Current at 5.0V (VIN = 3.0V)
  • 600mV to 5.5V Input Range, Up to 5.35V in Regulation
  • 900mV Minimum Startup Voltage
  • Single Resistor-Adjustable Output Voltage
    • 2.3V to 5.2V Output Voltage Range with 100mV Steps
    • 5.5V Output Voltage Setting Available
  • 2A Peak Inductor Current Limit
  • Thermal Shutdown Protection
  • Multiple Package Options
    • 1.58mm x 0.89mm, 0.4mm Pitch, 6-Bump (3 x 2) WLP
    • 2mm x 2mm, 8-Pin TDFN
  • -40°C to +125°C Operating Temperature Range

The ADPL20502® is a boost converter capable of delivering a peak inductor current up to 2A with True Shutdown™, cycle-by-cycle inductor current limit, short circuit, and thermal protection. During shutdown, only 1nA is drawn from the input pin. The ADPL20502 offers ultra-low quiescent current, small total solution size, and operates at a high efficiency throughout the load and line range. The ADPL20502 is ideal for batterypowered applications where long battery life is a must and high efficiency is required at all power levels.

The ADPL20502 utilizes an adjustable on-time, pulsefrequency modulation (PFM) control scheme that consumes ultra-low quiescent current. The ADPL20502 features True Shutdown mode where the output disconnects from the input with no forward or reversecurrent. This saves precious energy from the battery for systems that dynamically turn on and off by having the ability to startup into a precharged output capacitor.

The ADPL20502 is offered in a space-saving and cost effective 1.58mm x 0.89mm, 6-bump WLP (3 x 2, 0.4mm pitch) and 8-pin, 2mm x 2mm TDFN packages. The operating temperature range is from -40°C to +125°C.

APPLICATIONS

  • Consumer: WiFi Module, Near-Band IoT, Wearable audio
  • Industrial: Emergency Lighting, IoT Sensors
  • Medical: Clinical Instrumentation
ADPL20502
600mV to 5.5V Input, 2A Boost Converter with True Shutdown

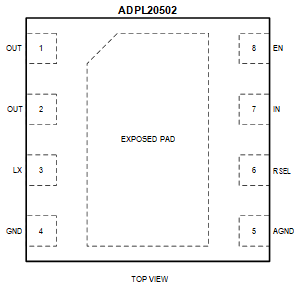

ADPL20502 Simplified Application Diagram ADPL20502 TDFN Pin Configuration ADPL20502 WLP Pin Configuration
Add to myAnalog

Add product to the Products section of myAnalog (to receive notifications), to an existing project or to a new project.

Create New Project
Ask a Question

Documentation

Data Sheet 1

User Guide 1

Learn More
Add to myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

Create New Project

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Tools & Simulations

EE-Sim Power® Tools 1

The EE-Sim DC-DC Converter Tool uses your requirements to quickly create a complete power design including a schematic, BOM with commercially available parts, and time and frequency domain simulations. Your customized schematic can be downloaded for further analysis in the standalone EE-Sim OASIS Simulator, featuring SIMPLIS and SIMetrix SPICE engines.

Start EE-Sim Now

SIMPLIS Models 1

Evaluation Kits

eval board
schematic 1
schematic 2
schematic 3
ADPL20502EVKIT

Evaluation Board for ADPL20502 converter in TDFN and WLP packages

Buy Now View Details

Features and Benefits

  • Evaluates ADPL20502 in WLP and TDFN package
  • 600mV to 5.5V Input Voltage Range
  • 2.3V to 5.5V Configurable Output Voltage
  • Up to 1A Output Current
  • Proven Two-Layer, 1oz Copper PCB Layout
  • Demonstrates Compact Solution Size
  • Fully Assembled and Tested

Product Details

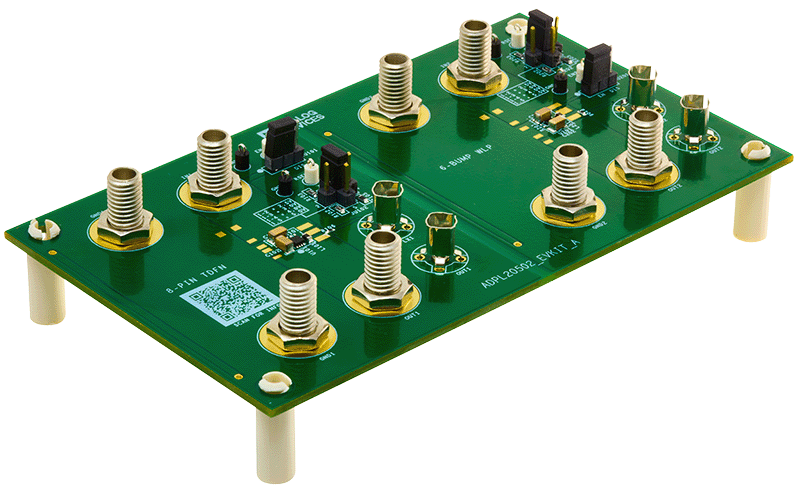

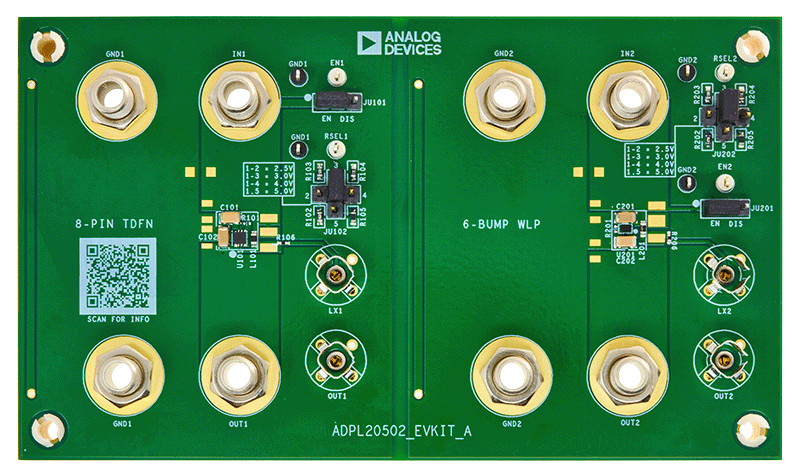

The ADPL20502 evaluation board evaluates the ADPL20502 IC in both TDFN and WLP packages. The ADPL20502 is a 600mV to 5.5V Input, 2A Boost Converter with Short-Circuit Protection and True ShutdownTM. The evaluation board operates over an input range of 600mV to 5.5V, depending on load, with 0.9V typical startup with 3kΩ load. The evaluation board provides resistor configurable output voltages from 2.3V to 5.5V. Refer to the ADPL20502 data sheet for output voltage settings. The evaluation boards consist of two application circuits with TDFN and WLP packages electrically isolated from each other.

eval board
schematic 4
schematic 5
ADIPOWERESSENTKIT

ADI Balanced Solutions Essentials Kit for the ADPL76030/ADPL26001 / ADPL13602 / ADPL54203 / ADPL20502 / ADPL62933 / ADPL62935 / ADPL63164

Buy Now View Details

Features and Benefits

  • Enables Immediate Testing of Eight Different Power Solutions and Supervisors
  • Includes Buck and Boost Converters, Buck/Boost Converter, No-Opto Isolated Flyback, and High-Performance Supervisors
  • Boards Designed with Through Holes for Prototyping on breadboards and existing circuits, as well as bench top testing

Product Details

The ADI Balanced Solutions Essentials Kit delivers products on ready-to-use boards for immediate testing and prototyping. The Balanced Solutions Essentials Kit features products from the Buck, Boost, Buck-Boost, Flyback, and High-Performance Supervisor product lines.
ADPL20502EVKIT
Evaluation Board for ADPL20502 converter in TDFN and WLP packages

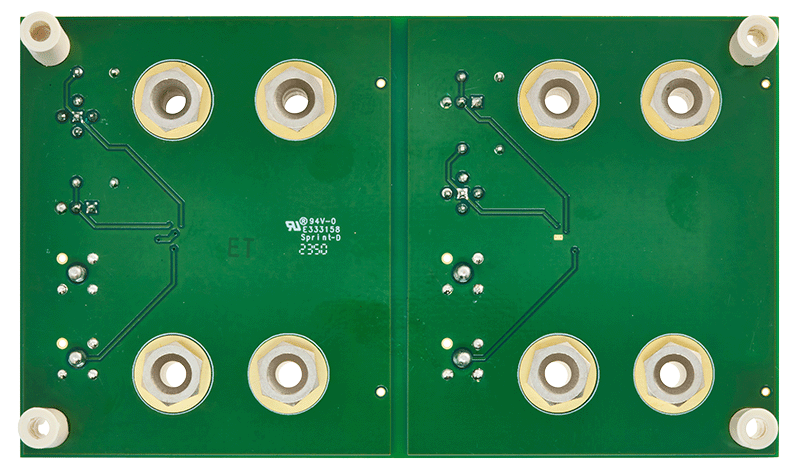

ADPL20502EVKIT Board Photo Angle View ADPL20502EVKIT Board Photo Top View ADPL20502EVKIT Board Photo Bottom View
