ADPS43506-RD Communications Power Solution

Compact Multi-Rail Power Solution for Optical Transceiver Modules

样片申请

顶部

设计与集成文件

设计、搭建、测试

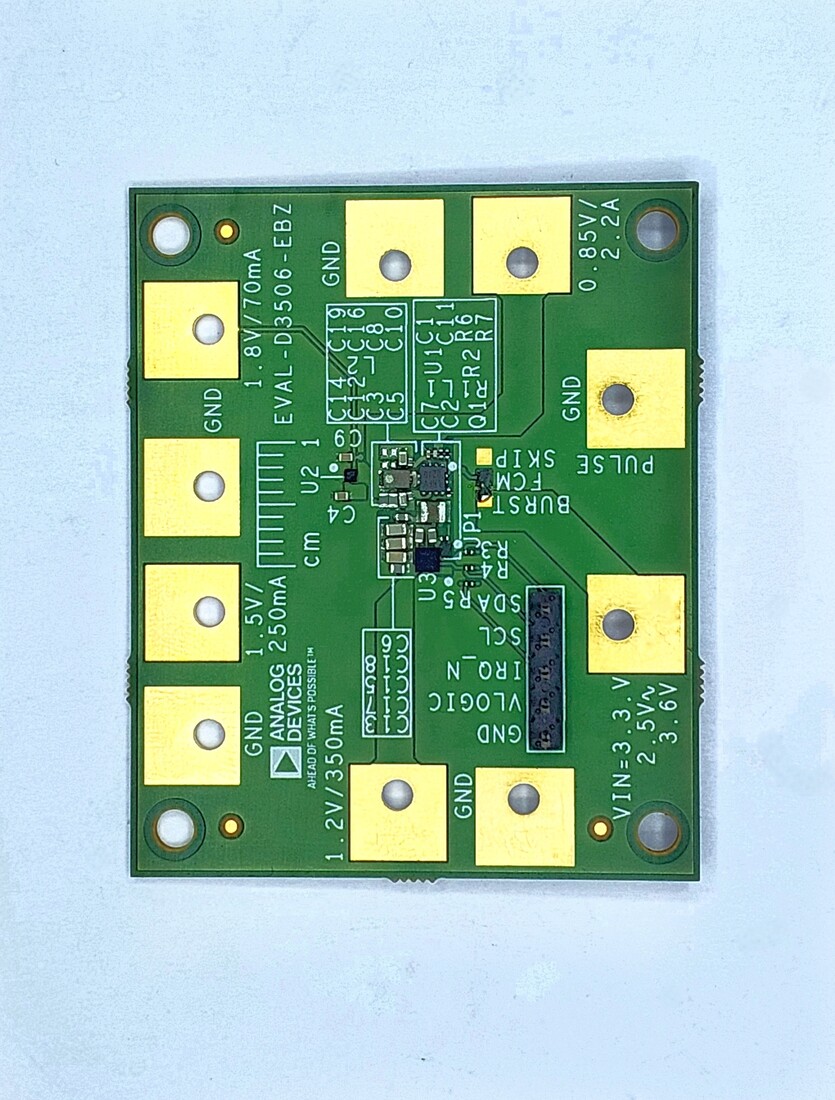

图示的电路板已装配完成且经过测试。

概览

设计资源

设计与集成文件

Schematic
PCB Layout
Bill of Materials
Allegro Layout Files

下载设计文件 18.92 MB

描述

The ADPS43506-RD is a compact, efficient, high-performance system-level power solution designed for optical transceiver modules and other communications systems. The ADPS43506-RD addresses the need for multiple low-noise power rails, high efficiency, precise sequencing, and effective thermal management within limited PCB space. Leveraging ADI’s Silent Switcher® technology and SIMO architecture, the solution delivers the addressed performance while minimizing component count and board area. The validated design reduces development risk and accelerates time to market for applications including optical transceivers, telecom equipment, industrial networking, test and measurement systems, and broadband access devices.

Applications

Optical Transceivers
Telecom Equipment
Industrial Networking
Test and Measurement Systems
Broadband Access Devices

优势和特点

Removes existing power solutions' struggle with ripple, regulation, and load current constraints in compact form factors.
Silent Switcher technology enables high current delivery with ultra-clean, low-noise outputs.
SIMO architecture generates multiple rails without increasing component count or PCB footprint.
Combined approach enables a compact, efficient, and high-performance power delivery network.

Solution Specifications

Solution Requirements:

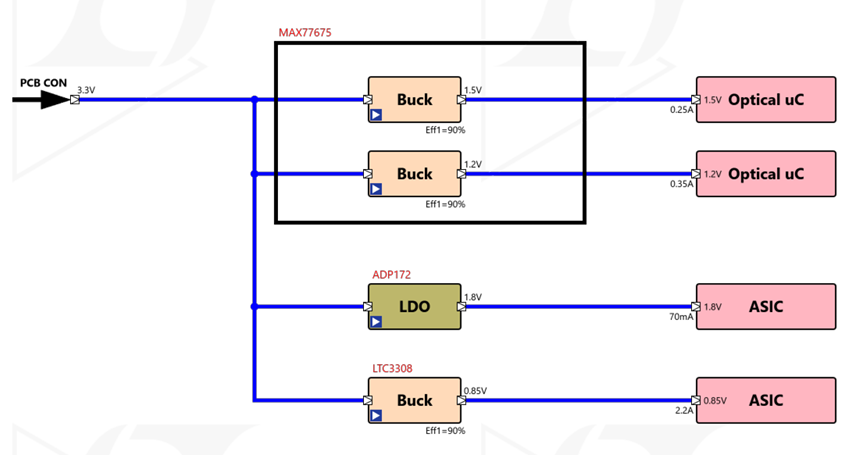

Operates from a 3.3 V ±5% input rail and generates four output voltages (0.85 V, 1.2 V, 1.5 V, and 1.8 V) with tolerances ranging from ±3.0% to ±5.0%, ensuring regulated and stable power delivery across all rails.
- 0.85 V ± ~3.00% output voltage delivers up to 2.2 A output current with 21.25 mVpp voltage ripple.
- 1.2 V ± 5.00% output voltage provides 350 mA maximum current with 30 mVpp ripple.
- 1.5 V ± 3.33% output voltage provides 250 mA maximum current and achieves the lowest ripple performance (15 mVpp).
- 1.8 V ± 5.00% output voltage supports 70 mA maximum current with 30 mVpp ripple.
Soft-start ramp times are 20 µs for the 0.85 V and 1.8 V rails, while the 1.2 V and 1.5 V rails start without additional programmed ramp delay.
All rails achieve greater than 80% efficiency, with the 0.85 V rail reaching approximately 90% efficiency at 1 A load.
