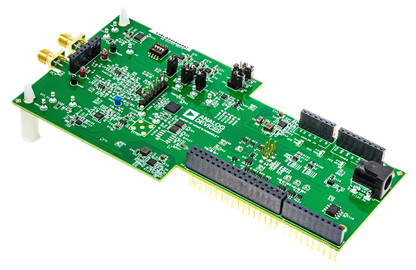

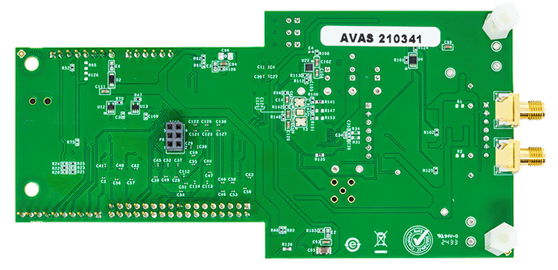

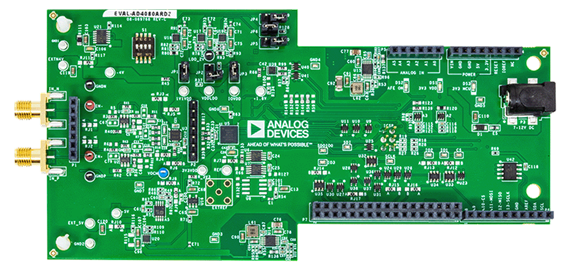

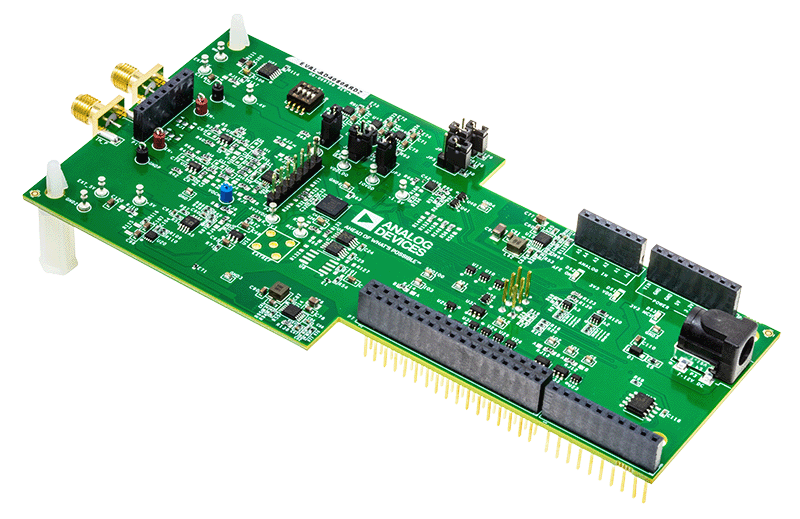

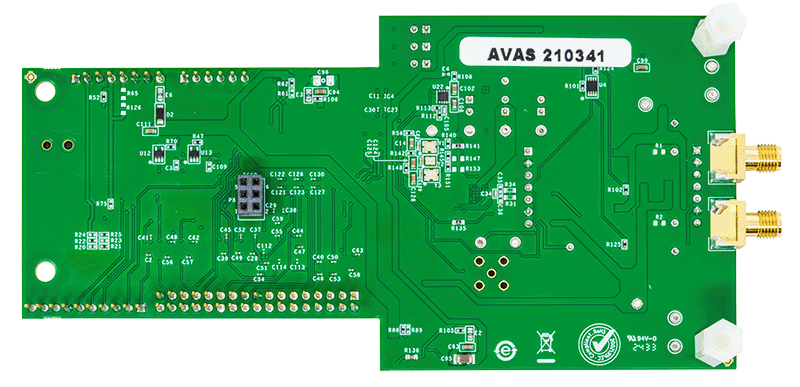

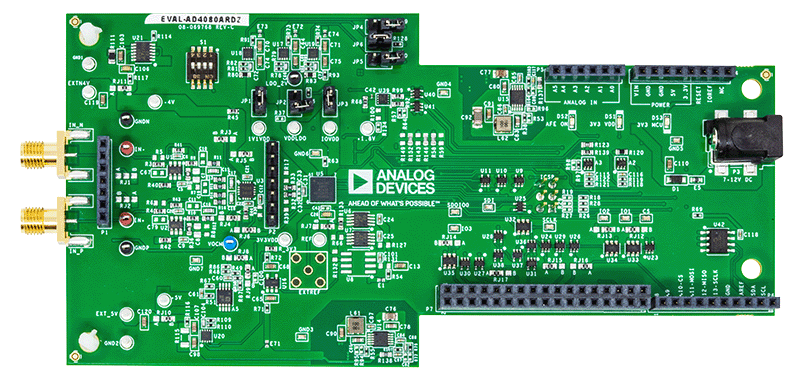

EVAL-AD4080ARDZ

产品详情

The EVAL-AD4080ARDZ evaluation board enables quick and easy evaluation of the performance and features of the AD4080. The EVAL-AD4080ARDZ is designed to demonstrate the performance of the AD4080 features in the ACE software environment. The EVAL-AD4080ARDZ evaluation kit supports the following AD4080 features:

• Serial peripheral interface (SPI) complementary metal-oxide semiconductor (CMOS) data output interface (read from first-in first out (FIFO))
• Analog-to-digital converter (ADC) configuration via SPI
• Internal or external generation of 1.1V regulated supply rails (external by default)
• Sampling rate capability 40/20/10MSPS (software selectable in ACE)

The EVAL-AD4080ARDZ evaluation board is designed for use with the system demonstration platform (SDP-K1) board to facilitate communication with the AD4080, enabling ADC configuration and data capture. The SDP-K1 controller board also provides the communication link to the host PC and the ACE software plugin. The primary controller board for the EVAL-AD4080ARDZ evaluation board is the SDP-K1. The EVAL-AD4080ARDZ evaluation board conforms to the Arduino Uno Shield mechanical and electrical standards to interface with the SDP-K1.

The EVAL-AD4080ARDZ evaluation solution includes the AD4080 industrial input and output (IIO) firmware application drivers for device configuration and ADC data capture. It also includes the AD4080 ACE plugin graphical interface (GUI) for performance evaluations.

For full details, see the AD4080 data sheet, which must be used in conjunction with this user guide when using the EVALAD4080ARDZ.
