EVAL-24LGA54EBZ

产品详情

The EVAL-24LGA54EBZ enables easy evaluation of the 24- lead land grid array (LGA) package devices in the Switches and Multiplexers Portfolio that are purchased separately. The EVAL-24LGA54EBZ is supplied with a socket to secure a 24-lead LGA device to the evaluation board without the need for soldering.

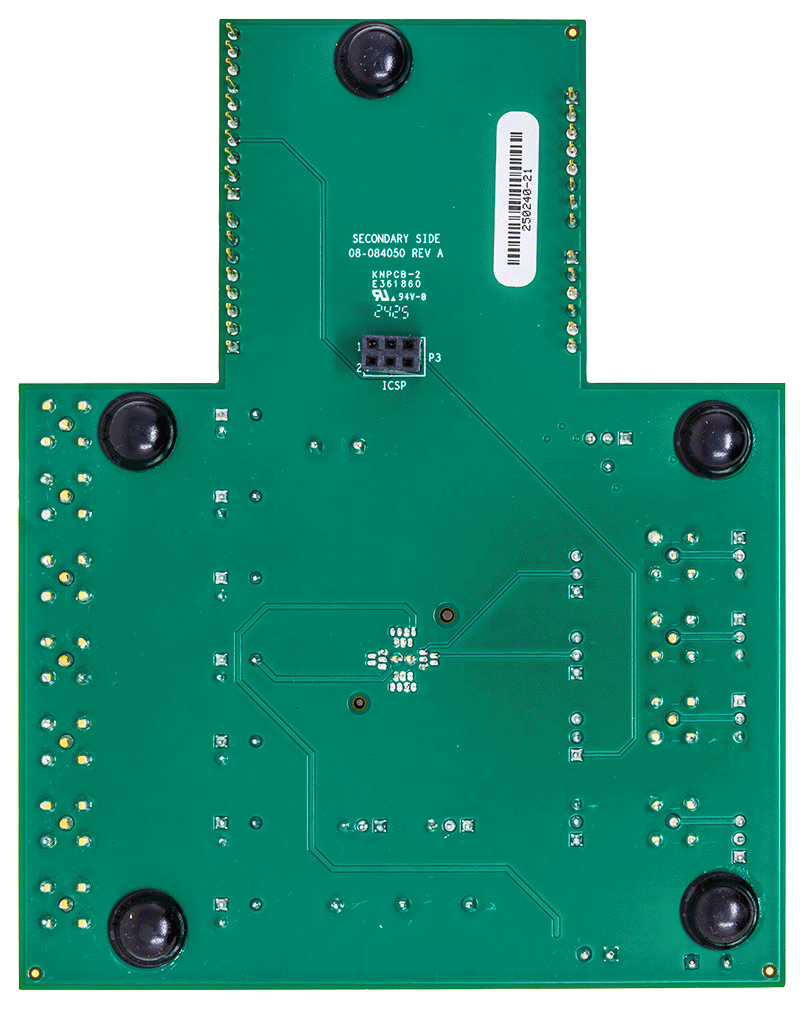

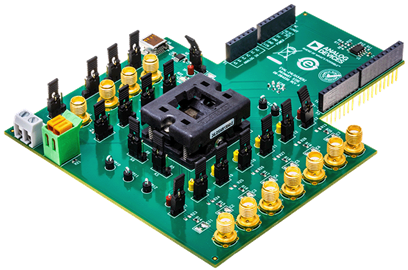

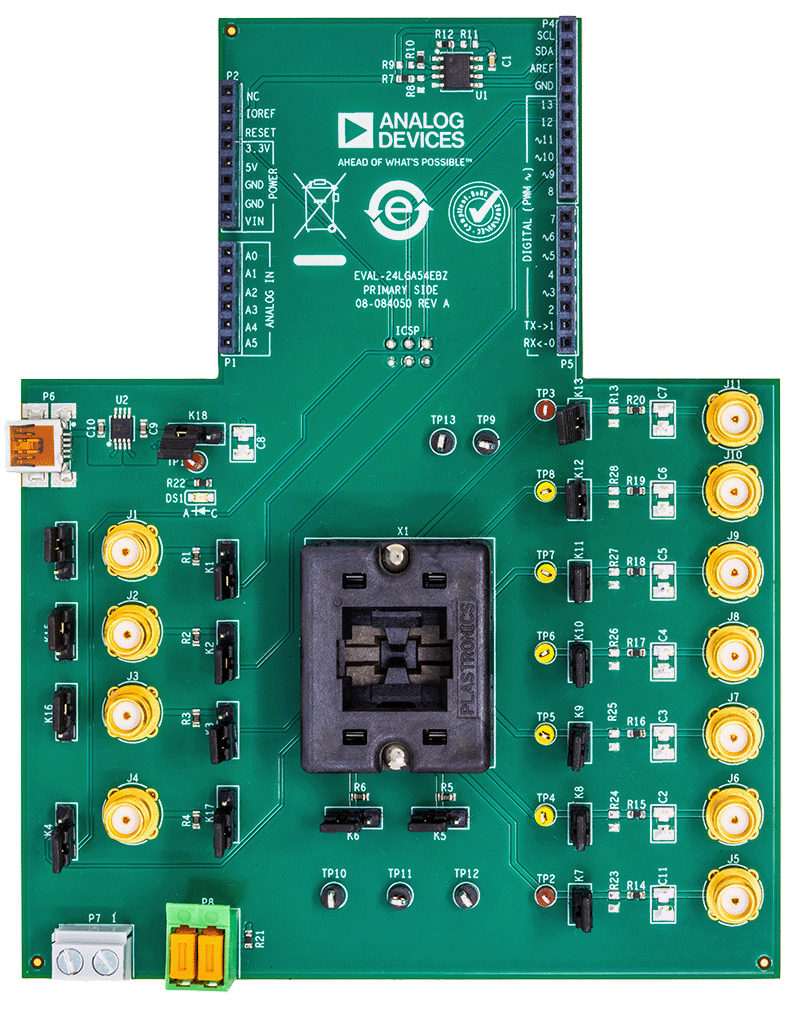

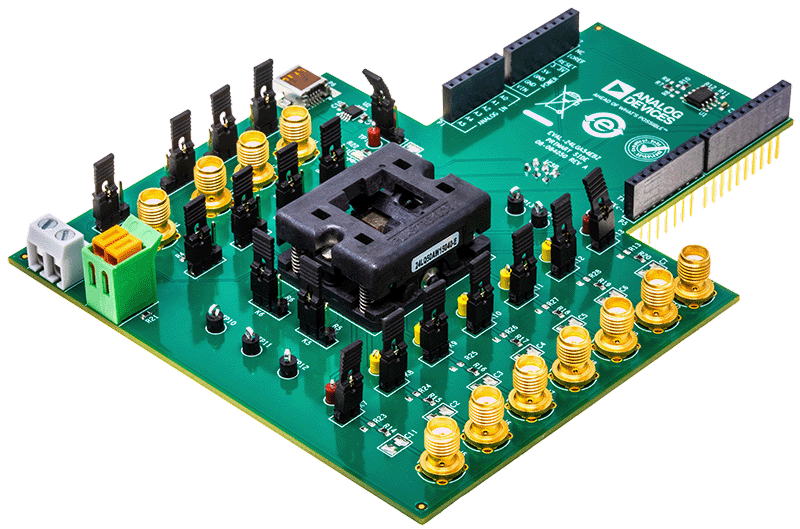

Figure 1 in the User Guide shows the EVAL-24LGA54EBZ. A 24-lead LGA device can be easily inserted into the central socket of the evaluation board that is designed for flexible testing of various switch configurations. Each device pin connects to a header (K1 to K17), allowing users to route signals, tie pins to ground, or configure the pins as needed. K7 to K13 support general input/output (I/O) or ground connections. The EVAL-24LGA54EBZ supports the following two control modes: internal logic using K14 to K17 or serial peripheral interface (SPI) using K1 to K4. The control mode is selected through K5, where connecting it to GND enables internal control and connecting it to VDD enables SPI. The EVAL-24LGA54EBZ has Subminiature Version A (SMA) connectors (J1 to J11) that connect directly to the device pins and are used for signal access, allowing users to easily apply or monitor control signals during testing.

The full specifications of the device under test (DUT) are available in the corresponding product data sheet, which must be consulted with the EVAL-24LGA54EBZ user guide when using the EVAL-24LGA54EBZ.
