TMC4330

OBSOLETE PRODUCT

数据手册 (Rev. 1.02)
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • SPI Interfaces for µC with easy-to-use protocol
  • Encoder interface for incremental or serial encoders
  • Closed-loop operation for Step drivers
  • Internal ramp generator generating S-shaped ramps or SixPoint™ ramps supporting on-the-fly changes
  • Controlled PWM output
  • Reference switch handling
  • Hardware and virtual stop switches

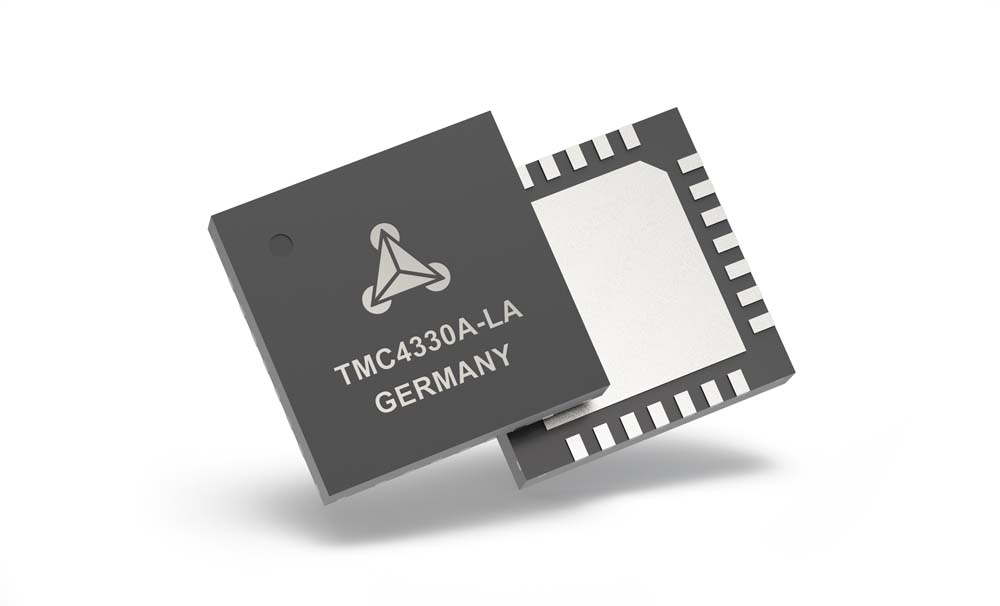

The TMC4330 is a stepper motor servo controller with S-shaped ramps for laboratory automation, 3D-Printing, Scanners and other automated equipment applications. The device is usable as a trapezoidal and advanced SixPoint™ ramp generator. Furthermore the TMC4330 is powered by Trinamic ChopSync™ and closed loop control technology. The device is designed for an operating voltage of 3.3V. The TMC4330 provides a SPI controller and S/D driver interface. Additionally it has an a/b/n incremental, SPI and SSI encoder Interface.

APPLICATIONS
  • Textile, sewing machines
  • CCTV, security
  • Printers, scanners
  • ATM, cash recycler
  • Office automation
  • POS
  • Factory automation
  • Lab automation
  • Pumps and valves
  • Heliostat controllers
  • CNC machines
  • Robotics
TMC4330
OBSOLETE PRODUCT
tmc4330a-la tmc4330a tmc4330a-v2
添加至 myAnalog

将产品添加到myAnalog 的现有项目或新项目中（接收通知）。

创建新项目
提问

参考资料

数据手册 1

了解更多
添加至 myAnalog

Add media to the Resources section of myAnalog, to an existing project or to a new project.

创建新项目

硬件生态系统

部分模型 产品周期 描述
电机驱动器和运动控制器IC 1
TMC4361
推荐用于新设计 S-shaped ramp and SixPoint ramp motion controller for stepper motors with SPI and Step/Dir interfaces, and an encoder interface for closed-loop operation
