LT1236

量产

高精度基准

数据手册产品选型表

产品模型: 35

Viewing:

概述

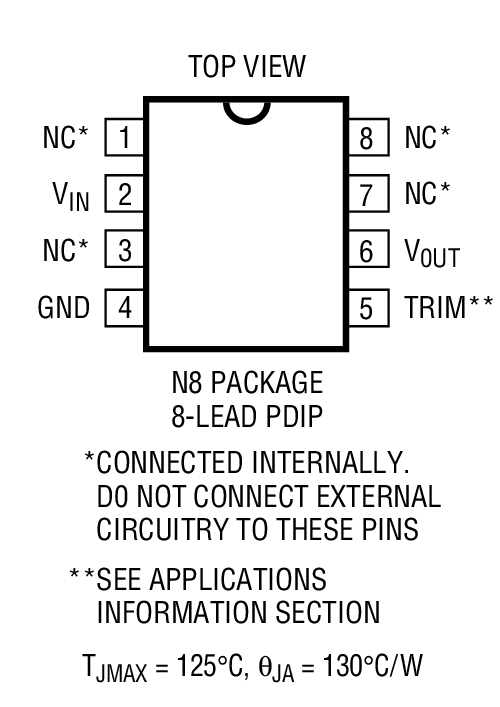

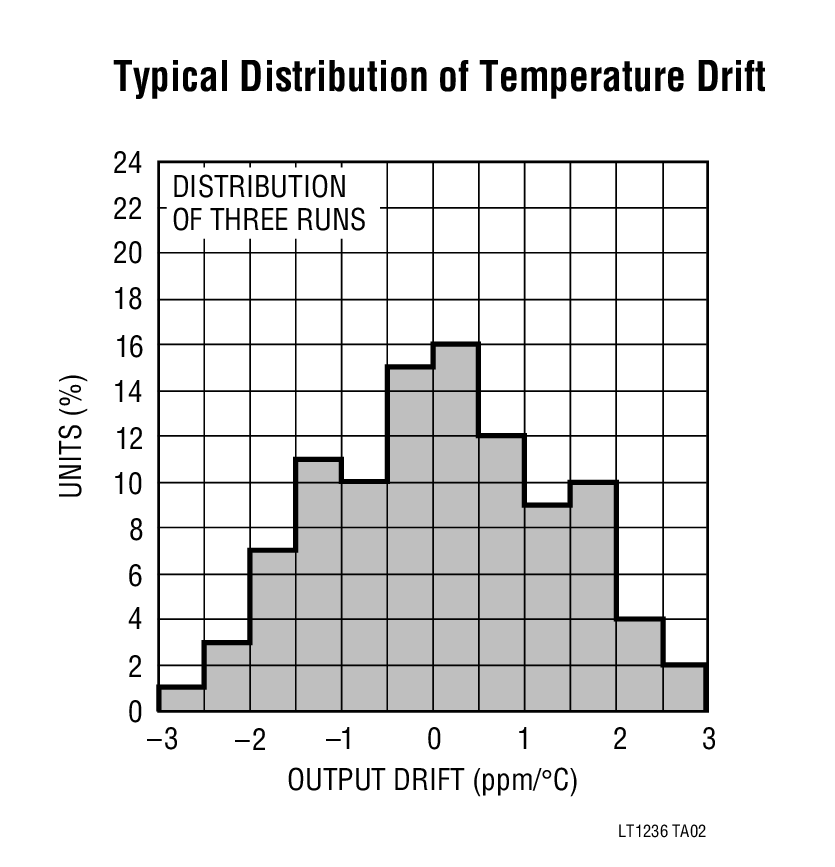

超低漂移：5ppm/°C (最大值)
修整至高准确度：0.05% (最大值)

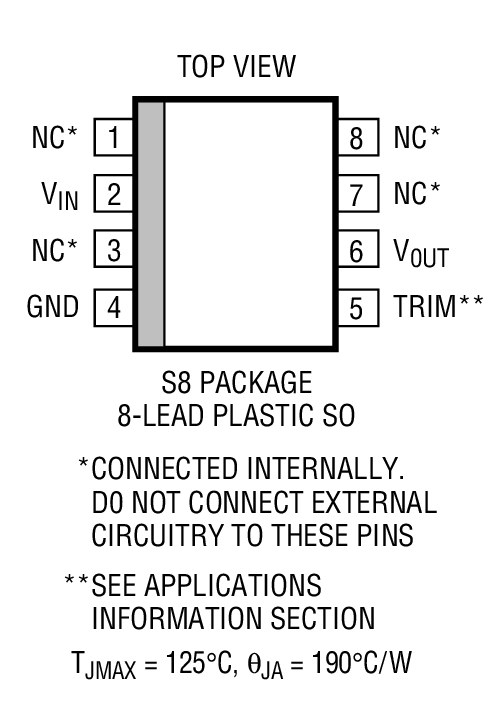

工业温度范围 SO 封装
可工作于串联或并联模式
引脚与 AD586、AD587 兼容
在串联模式中输出吸收和供应电流
非常低噪声：< 1ppm _P-P (0.1Hz 至 10Hz)
经过全面的噪声测试
>100dB 纹波抑制
最小输入 / 输出电压差：1V

LT^®1236 是一款高精度基准，它把超低漂移和噪声与卓越的长期稳定性和高输出准确度结合在一起。基准输出将供应和吸收高达 10mA 的电流，而且几乎完全不受输入电压变化的影响。可提供两种电压：5V 和 10V。10V 版本可用作一个并联稳压器 (两端齐纳)，具有与三端连接相同的精准特性。采取了特殊的谨慎措施以较大限度地降低热调节效应以及由温度引起的迟滞。

LT1236 兼具优良的准确度和温度系数指标，且并未使用高功率的片内加热器。LT1236 基准基于掩埋式齐纳二极管结构，因而消除了表面击穿器件所存在的噪声和稳定性问题。此外，即使与最好的带隙基准相比，亚表面齐纳二极管基准的温度漂移及时间稳定性指标也要更胜一筹。

应用

A/D 和 D/A 转换器
精准型稳压器
高精度衡器
惯性导航系统
数字电压表

产品模型: 35

参考资料

ADI 始终高度重视提供符合最高质量和可靠性水平的产品。我们通过将质量和可靠性检查纳入产品和工艺设计的各个范围以及制造过程来实现这一目标。出货产品的“零缺陷”始终是我们的目标。查看我们的质量和可靠性计划和认证以了解更多信息。

产品型号	引脚/封装图-中文版	文档	CAD 符号，脚注和 3D模型
LT1236ACN8-10#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236ACN8-5#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236ACS8-10#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236ACS8-10#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236ACS8-5#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236ACS8-5#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236AIN8-10#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236AIS8-10#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236AIS8-10#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236AIS8-5#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236AIS8-5#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236BCN8-10#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236BCN8-5#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236BCS8-10#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236BCS8-10#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236BCS8-5#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236BCS8-5#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236BIN8-10#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236BIN8-5#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236BIS8-10#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236BIS8-10#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236BIS8-5#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236BIS8-5#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236CCN8-10#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236CCN8-5#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236CCS8-10#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236CCS8-10#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236CCS8-5#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236CCS8-5#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236CIN8-10#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236CIN8-5#PBF	8-Lead PDIP (Narrow 0.3 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236CIS8-10#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236CIS8-10#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236CIS8-5#PBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys
LT1236CIS8-5#TRPBF	8-Lead SOIC (Narrow 0.15 Inch)	Material Declaration Reliablity Data 资料包	Ultra Librarian SamacSys

产品型号	产品生命周期	PCN

10月 8, 2024 - 24_0234 Migrating Bottom Trace Code Marking to Top Side Laser Marking for PDIP Package
		PCN24_0234_Form Material_Report Marking Comparison
LT1236ACN8-10#PBF	量产
LT1236ACN8-5#PBF	量产
LT1236AIN8-10#PBF	量产
LT1236BCN8-10#PBF	量产
LT1236BCN8-5#PBF	量产
LT1236BIN8-10#PBF	量产
LT1236BIN8-5#PBF	量产
LT1236CCN8-10#PBF	量产
LT1236CCN8-5#PBF	量产
LT1236CIN8-10#PBF	量产
LT1236CIN8-5#PBF	量产
10月 11, 2022 - 22_0241 Epoxy Change from Henkel 8290 to 8290A for PDIP Package
		PCN22_0241_Form Material_Report Qualification Results Summary
LT1236ACN8-10#PBF	量产
LT1236ACN8-5#PBF	量产
LT1236AIN8-10#PBF	量产
LT1236BCN8-10#PBF	量产
LT1236BCN8-5#PBF	量产
LT1236BIN8-10#PBF	量产
LT1236BIN8-5#PBF	量产
LT1236CCN8-10#PBF	量产
LT1236CCN8-5#PBF	量产
LT1236CIN8-10#PBF	量产
LT1236CIN8-5#PBF	量产
8月 6, 2022 - 22_0172 Laser Top Mark Conversion for PDIP Packages Assembled in ADPG [PNG]
		PCN22_0172_Form Material_Report Delta Qualification Matrix
LT1236ACN8-10#PBF	量产
LT1236ACN8-5#PBF	量产
LT1236AIN8-10#PBF	量产
LT1236BCN8-10#PBF	量产
LT1236BCN8-5#PBF	量产
LT1236BIN8-10#PBF	量产
LT1236BIN8-5#PBF	量产
LT1236CCN8-10#PBF	量产
LT1236CCN8-5#PBF	量产
LT1236CIN8-10#PBF	量产
LT1236CIN8-5#PBF	量产
10月 8, 2024 - 24_0236 Migrating Bottom Trace Code Marking to Top Side Laser Marking for SOIC_N Package
		PCN24_0236_Form Material_Report Marking Comparison Delta Qualification Matrix
LT1236ACS8-10#PBF	量产
LT1236ACS8-10#TRPBF	量产
LT1236ACS8-5#PBF	量产
LT1236ACS8-5#TRPBF	量产
LT1236AIS8-10#PBF	量产
LT1236AIS8-10#TRPBF	量产
LT1236AIS8-5#PBF	量产
LT1236AIS8-5#TRPBF	量产
LT1236BCS8-10#PBF	量产
LT1236BCS8-10#TRPBF	量产
LT1236BCS8-5#PBF	量产
LT1236BCS8-5#TRPBF	量产
LT1236BIS8-10#PBF	量产
LT1236BIS8-10#TRPBF	量产
LT1236BIS8-5#PBF	量产
LT1236BIS8-5#TRPBF	量产
LT1236CCS8-10#PBF	量产
LT1236CCS8-10#TRPBF	量产
LT1236CCS8-5#PBF	量产
LT1236CCS8-5#TRPBF	量产
LT1236CIS8-10#PBF	量产
LT1236CIS8-10#TRPBF	量产
LT1236CIS8-5#PBF	量产
LT1236CIS8-5#TRPBF	量产
10月 12, 2022 - 22_0254 Epoxy Change from Henkel 8290 to 8290A for 8-Lead SOIC Package (PCN part 1 of 2)
		PCN22_0254_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LT1236ACS8-10#PBF	量产
LT1236ACS8-10#TRPBF	量产
LT1236ACS8-5#PBF	量产
LT1236ACS8-5#TRPBF	量产
LT1236AIS8-10#PBF	量产
LT1236AIS8-10#TRPBF	量产
LT1236AIS8-5#PBF	量产
LT1236AIS8-5#TRPBF	量产
LT1236BCS8-10#PBF	量产
LT1236BCS8-10#TRPBF	量产
LT1236BCS8-5#PBF	量产
LT1236BCS8-5#TRPBF	量产
LT1236BIS8-10#PBF	量产
LT1236BIS8-10#TRPBF	量产
LT1236BIS8-5#PBF	量产
LT1236BIS8-5#TRPBF	量产
LT1236CCS8-10#PBF	量产
LT1236CCS8-10#TRPBF	量产
LT1236CCS8-5#PBF	量产
LT1236CCS8-5#TRPBF	量产
LT1236CIS8-10#PBF	量产
LT1236CIS8-10#TRPBF	量产
LT1236CIS8-5#PBF	量产
LT1236CIS8-5#TRPBF	量产
6月 11, 2021 - 21_0060 Laser Top Mark for 8SOICN Assembled in ADPG, UTL and CRM
		PCN21_0060_Form Material_Report Delta Qualification Matrix
LT1236ACS8-10#PBF	量产
LT1236ACS8-10#TRPBF	量产
LT1236ACS8-5#PBF	量产
LT1236ACS8-5#TRPBF	量产
LT1236AIS8-10#PBF	量产
LT1236AIS8-10#TRPBF	量产
LT1236AIS8-5#PBF	量产
LT1236AIS8-5#TRPBF	量产
LT1236BCS8-10#PBF	量产
LT1236BCS8-10#TRPBF	量产
LT1236BCS8-5#PBF	量产
LT1236BCS8-5#TRPBF	量产
LT1236BIS8-10#PBF	量产
LT1236BIS8-10#TRPBF	量产
LT1236BIS8-5#PBF	量产
LT1236BIS8-5#TRPBF	量产
LT1236CCS8-10#PBF	量产
LT1236CCS8-10#TRPBF	量产
LT1236CCS8-5#PBF	量产
LT1236CCS8-5#TRPBF	量产
LT1236CIS8-10#PBF	量产
LT1236CIS8-10#TRPBF	量产
LT1236CIS8-5#PBF	量产
LT1236CIS8-5#TRPBF	量产

这是最新版本的数据手册

硬件生态系统

部分模型	产品周期	描述
匹配电阻与晶体管 1
LT5400	推荐用于新设计	四个匹配的电阻器
线性稳压器 1
LT3040	推荐用于新设计	20V、200mA、超低噪声、超高 PSRR 精准 DAC/基准缓冲器

工具及仿真模型

LTspice

LTspice中提供以下器件型号：

LT1236-10
LT1236-5

LTspice^®是一款强大高效的免费仿真软件、原理图采集和波形观测器，为改善模拟电路的仿真提供增强功能和模型。
