ADSP-2186M

不推荐用于新设计

16位、75 MIPS、2.5v，2个串行端口，主机端口，40 KB RAM

数据手册 (Rev. 0) 产品选型表

产品模型: 4

Viewing:

概述

指令周期时间：13 ns (75 MIPS)
2.5 v电源，3.3 v I/O
8K字片内程序RAM
8K字片内数据存储器RAM
0.4 mA/MIPS

16位内部DMA端口，支持高速访问片内存储器
100引脚LQFP和10mm x 10mm小型BGA封装
8位DMA字节存储器端口，支持程序和数据存储器透明传递
字节存储器接口用于存储数据表和程序覆盖
可编程存储器选通和独立的I/O存储器空间可实现“无缝”系统
兼容ADSP-2100系列代码和函数

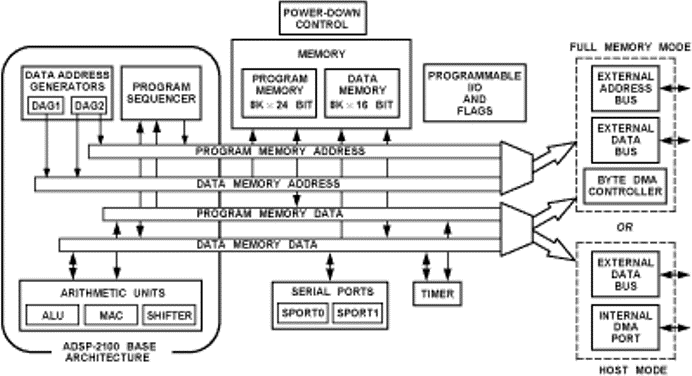

ADSP-2186M将ADSP-2100系列的基础架构（三个计算单元、数据地址生成器和一个程序序列器）与两个串行端口、一个16位内部DMA端口、一个字节DMA端口、一个可编程计时器、标志I/O和广泛的中断功能完美地结合起来。

优势

代数汇编语言支持C语言类指令，编程方便

小型BGA和100引脚LQFP封装，有利于节省空间、降低能耗(16mm x 16mm)

片内RAM和4个DMA端口方便再编程

16位DMA端口方便总线接口

5种休眠和省电模式延长电池寿命。
