ADG796A

过期

I2C® Compatible, Wide Bandwidth, Hex 2:1 Multiplexer

数据手册 (Rev. 0) 产品选型表
产品技术资料帮助

ADI公司所提供的资料均视为准确、可靠。但本公司不为用户在应用过程中侵犯任何专利权或第三方权利承担任何责任。技术指标的修改不再另行通知。本公司既没有含蓄的允许，也不允许借用ADI公司的专利或专利权的名义。本文出现的商标和注册商标所有权分别属于相应的公司。
Viewing:

概述

  • Bandwidth: 325 MHz
  • Low Insertion Loss and On Resistance: 2.6 Ω Typical
  • On Resistance Flatness: 0.3 Ω Typical
  • Single 3 V/5 V Supply Operation
  • 3.3 V Analog Signal Range (5 V Supply, 75 Ω Load)
  • Low Quiescent Supply Current: 1 nA Typical
  • Fast Switching Times
    tON 186 ns
    tOFF 177 ns
  • I2C-Compatible Interface

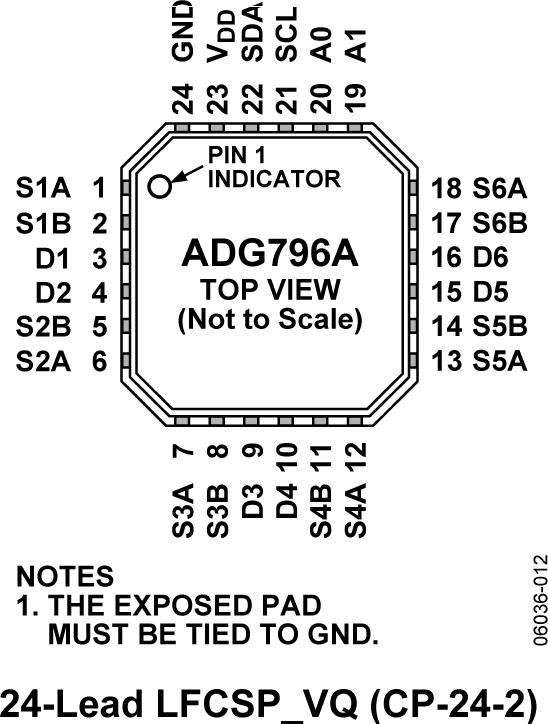

  • Compact 24-lead LFCSP

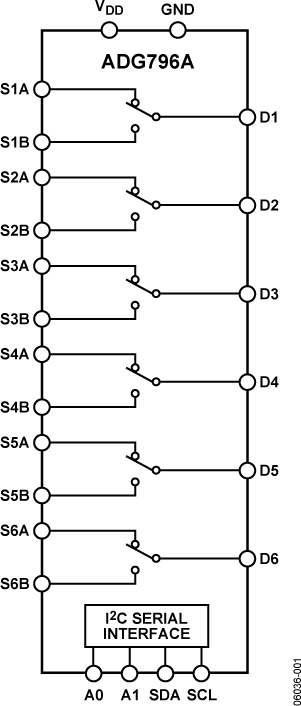

The ADG796A is a monolithic CMOS device comprising six 2:1 multiplexer/demultiplexers controllable via a standard I2C serial interface. The CMOS process provides ultralow power dissipation, yet offers high switching speed and low on resistance.

The on-resistance profile is very flat over the full analog input range and wide bandwidth ensures excellent linearity and low distortion. These features, combined with a wide input signal range make the ADG796A the ideal switching solution for a wide range of TV applications including S-Video, YPbPr and RGB video switches.

The switches conduct equally well in both directions when on. In the off condition, signal levels up to the supplies are blocked. The ADG796A switches exhibit break-before-make switching action.

The integrated I2C interface provides a large degree of flexibility in the system design. It has two user adjustable I2C address pins that allow up to four devices on the same bus. This allows the user to expand the capability of the device by increasing the size of the switching array.

The ADG796A operates from a single 3 V or 5 V supply voltage and is available in a compact 4 mm × 4 mm body, 24-lead, leadfree LFCSP.
ADG796A
I2C® Compatible, Wide Bandwidth, Hex 2:1 Multiplexer
98586571ADG796A-fbl 665953965ADG796A-pc
