LTC7004

RECOMMENDED FOR NEW DESIGNS

Fast 60V High Side NMOS Static Switch Driver with PassThru

Data Sheet (Rev. C) Product Selection Table

Part Models: 12
1ku List Price: Starting From $2.48

Viewing:

Overview

Wide Operating V_IN : Up to 60V

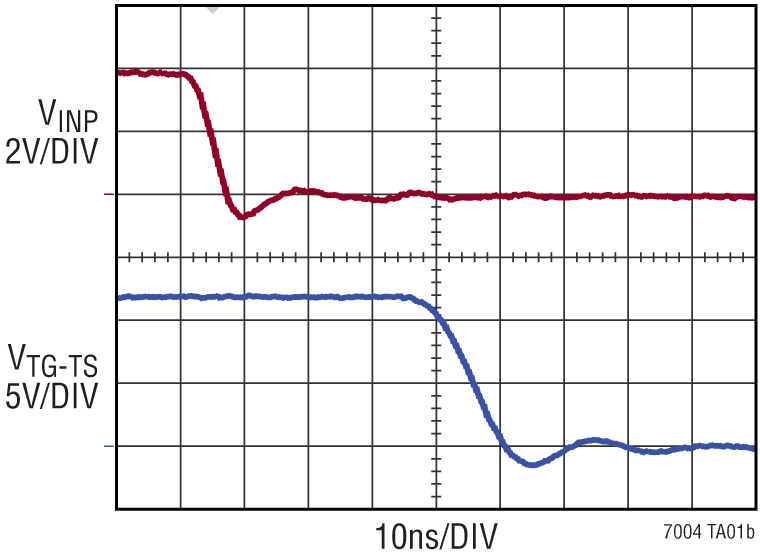

1Ω Pull-Down, 2.2Ω Pull-Up for Fast Turn-On and Turn-Off Times with 35ns Propagation Delays
Internal Charge Pump for 100% Duty Cycle
Adjustable Turn-On Slew Rate
Gate Driver Supply from 3.5V to 15V
Adjustable V_IN Overvoltage Lockout

Adjustable Driver Supply V_CC Undervoltage Lockout
CMOS Compatible Input

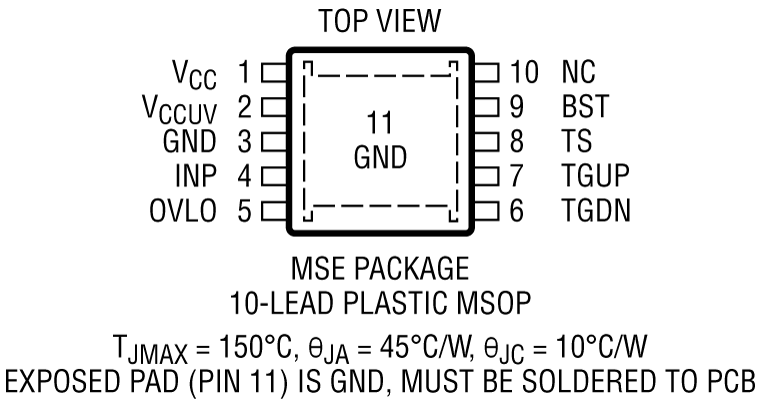

Thermally Enhanced, High Voltage Capable 10-Lead MSOP Package
AEC-Q100 Qualified for Automotive Applications

The LTC7004 is a fast high side N-channel MOSFET gate driver that operates from input voltages up to 60V. It contains an internal charge pump that fully enhances an external N-channel MOSFET switch, allowing it to remain on indefinitely.

Its powerful driver can easily drive large gate capacitances with very short transition times, making it well suited for both high frequency switching applications or static switch applications that require a fast turn-on and/or turn-off time.

The LTC7004 is available in the thermally-enhanced 10-lead MSOP package.

APPLICATIONS

Static Switch Driver
Load and Supply Switch Driver
Electronic Valve Driver
High Frequency High Side Gate Driver

Part Models: 12
1ku List Price: Starting From $2.48

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LTC7004EMSE#PBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC7004EMSE#TRPBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC7004HMSE#PBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC7004HMSE#TRPBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC7004IMSE#PBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC7004IMSE#TRPBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC7004IMSE#WPBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC7004IMSE#WTRPBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC7004JMSE#WPBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC7004JMSE#WTRPBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC7004MPMSE#PBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys
LTC7004MPMSE#TRPBF	10-Lead MSOP w/ EP	Material Declaration Reliablity Data Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Apr 14, 2025 - 25_0017 Bond Wire Change from Gold to Copper
		PCN25_0017_Form Material_Report Qualification Results Summary
LTC7004EMSE#PBF	PRODUCTION
LTC7004EMSE#TRPBF	PRODUCTION
LTC7004HMSE#PBF	PRODUCTION
LTC7004HMSE#TRPBF	PRODUCTION
LTC7004IMSE#WPBF	PRODUCTION
LTC7004IMSE#WTRPBF	PRODUCTION
LTC7004JMSE#WPBF	PRODUCTION
LTC7004JMSE#WTRPBF	PRODUCTION
Jun 5, 2024 - 24_0003 Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)
		PCN24_0003_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LTC7004EMSE#PBF	PRODUCTION
LTC7004EMSE#TRPBF	PRODUCTION
LTC7004HMSE#PBF	PRODUCTION
LTC7004HMSE#TRPBF	PRODUCTION
LTC7004IMSE#PBF	PRODUCTION
LTC7004IMSE#TRPBF	PRODUCTION
LTC7004MPMSE#PBF	PRODUCTION
LTC7004MPMSE#TRPBF	PRODUCTION
Feb 4, 2020 - 20_0130 Laser Top Mark Conversion for 10-Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0130_Form Material_Report
LTC7004EMSE#PBF	PRODUCTION
LTC7004EMSE#TRPBF	PRODUCTION
LTC7004HMSE#PBF	PRODUCTION
LTC7004HMSE#TRPBF	PRODUCTION
LTC7004IMSE#PBF	PRODUCTION
LTC7004IMSE#TRPBF	PRODUCTION
LTC7004MPMSE#PBF	PRODUCTION
LTC7004MPMSE#TRPBF	PRODUCTION
Apr 17, 2025 - 25_0119 Bond Wire Change from Gold to Copper (Automotive)
		PCN25_0119_Form Material_Report Delta Qualification Matrix Qualification Results Summary
LTC7004IMSE#WPBF	PRODUCTION
LTC7004IMSE#WTRPBF	PRODUCTION
LTC7004JMSE#WPBF	PRODUCTION
LTC7004JMSE#WTRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Protection Switches & Controllers 2
LT4256-1 LT4256-2		Positive High Voltage Hot Swap Controllers
LT4363	RECOMMENDED FOR NEW DESIGNS	High Voltage Surge Stopper with Current Limit

Tools & Simulations

LTspice

Models for the following parts are available in LTspice:

LTC7004

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

Evaluation Kits

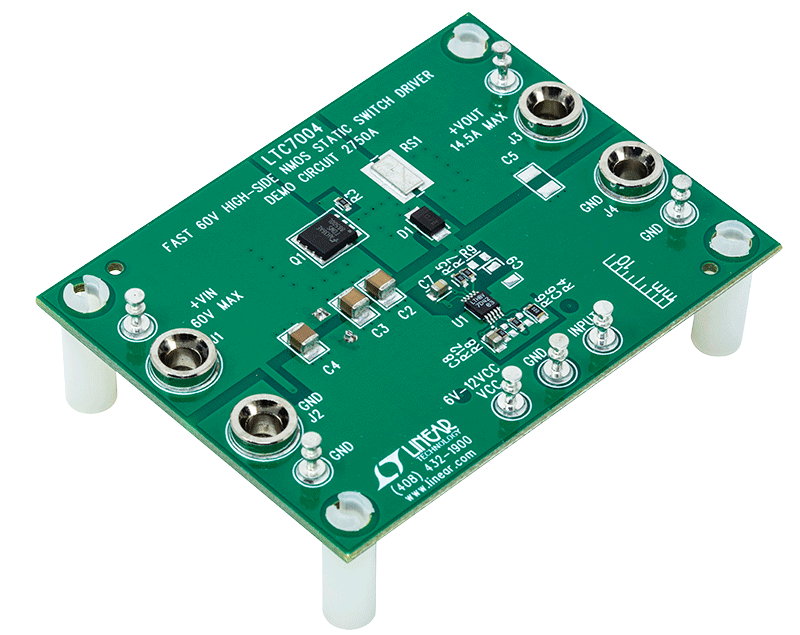

LTC7004EMSE Demo Board | High Side NMOS Driver; 0V ≤ VIN ≤ 60V, IOUT up to 14.5A

Buy Now View Details

Product Details

Demonstration circuit 2750A is a 60V, high side switch featuring the LTC7004. This demo board is designed to switch a 14.5A output load from 0V up to 60V, and offers a low 50ns (typical) propagation delay, fast switching times (<10ns) and 100% duty cycle operation.
