42V, 3.5A Synchronous Step-Down Regulator with 2.5μA Quiescent Current

Data Sheet (Rev. C) Product Selection Table

Part Models: 48
1ku List Price: Starting From $5.15

Viewing:

Overview

LT8610 Feature Set, Plus:

3.5A Maximum Output Current Fast
30ns Minimum Switch-On Time
Improved Burst Mode Efficiency (LT8610AB Only)
Improved EMI

Wide Input Voltage Range: 3.4V to 42V
Ultralow Quiescent Current Burst Mode^® Operation:

2.5μA I_Q Regulating 12V_IN to 3.3V_OUT

Fixed Output Voltages: 3.3V, 5V
Output Ripple < 10mV_P-P (LT8610A Only)

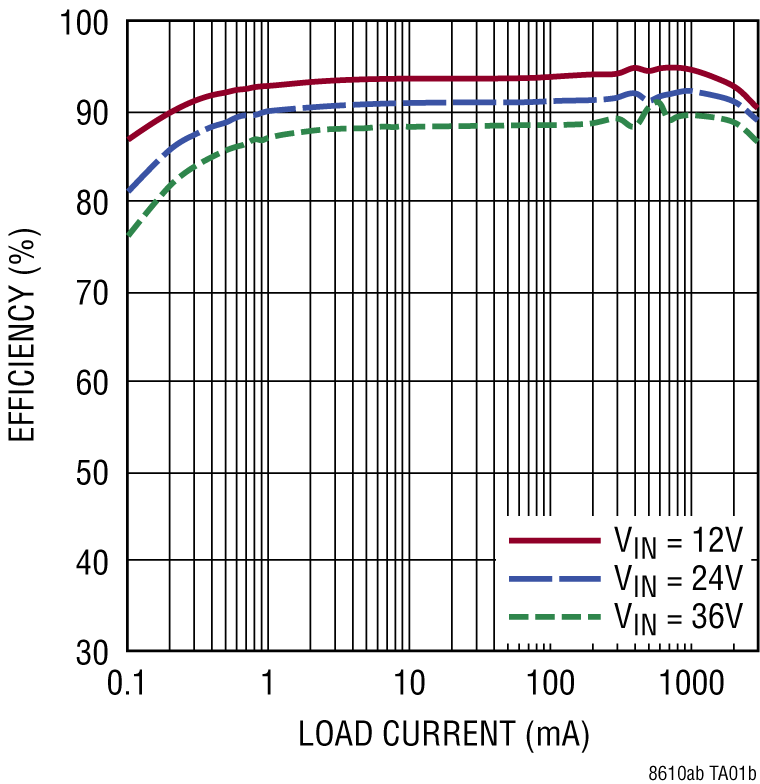

High Efficiency Synchronous Operation:

95% Efficiency at 1A, 5V_OUT from 12V_IN
93% Efficiency at 1A, 3.3V_OUT from 12V_IN

Low Dropout Under All Conditions: 200mV at 1A
Safely Tolerates Inductor Saturation in Overload
Adjustable and Synchronizable Frequency:

200kHz to 2.2MHz

Accurate 1V Enable Pin Threshold
Output Soft-Start and Tracking

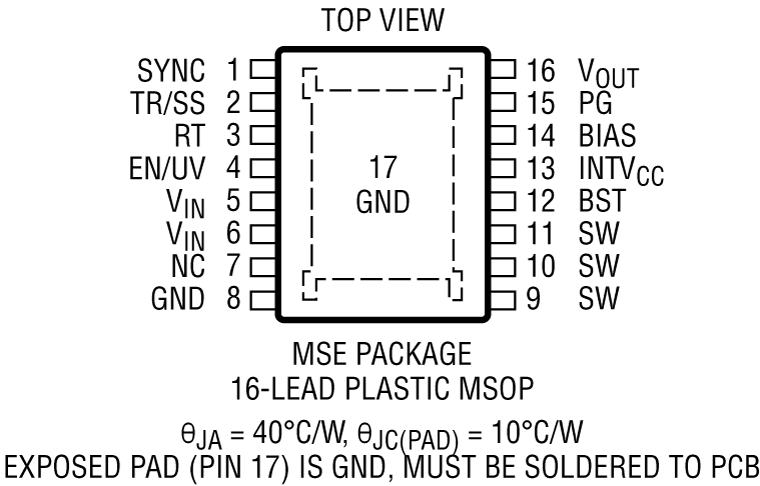

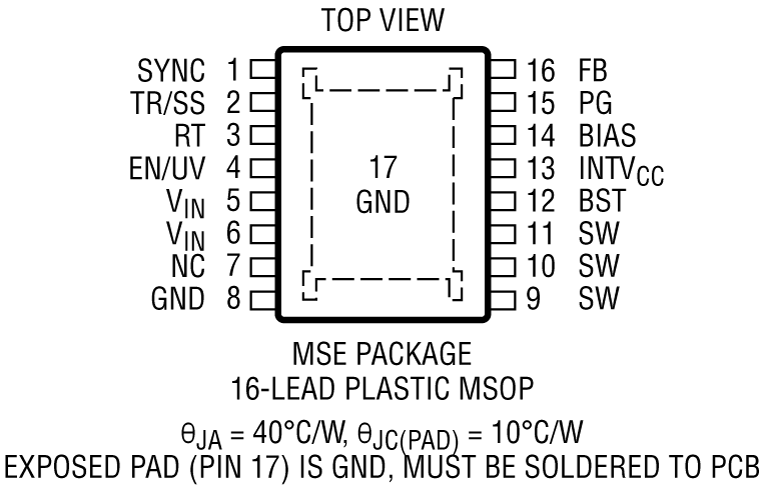

Small Thermally Enhanced 16-Lead MSOP Package
AEC-Q100 Qualified for Automotive Applications

The LT8610A/LT8610AB series are compact, high efficiency, high speed synchronous monolithic step-down switching regulators that consume only 2.5μA of quiescent current. Compared to the LT8610, they have higher maximum output currents of 3.5A and a faster minimum switch-on time of 30ns. The LT8610A has the same low ripple burst mode performance of the LT8610, while the LT8610AB has even higher light load efficiency.

The other features of the LT8610 remain unchanged in the LT8610A/LT8610AB series. A SYNC pin allows synchronization to an external clock. The EN/UV pin has an accurate 1V threshold for V_IN undervoltage lockout or shut down. A capacitor on the TR/SS pin programs the output voltage ramp rate during startup. The PG flag signals when V_OUT is within ±9% of the programmed output voltage as well as fault conditions.


	FEEDBACK VOLTAGE	MIN V_IN	OUTPUT CURRENT	NOTES
LT8610AC-1	0.80V	3.0V	3.5A	Fsw = 1.5MHz to 2.2MHz, Optimized Transient Response
LT8610AC	0.80V	3.0V	3.5A	Fsw = 200kHz to 2.2MHz
LT8610AB	0.97V	3.4V	3.5A	Improved Burst Mode Efficiency
LT8610AX	0.97V	3.4V	3.5A	175°C Max Junction Temp
LT8610A	0.97V	3.4V	3.5A	Higher Iout, 30ns Min On Time
LT8610	0.97V	3.4V	2.5A	-

Applications

Automotive and Industrial Supplies
GSM Power Supplies

Part Models: 48
1ku List Price: Starting From $5.15

Documentation

ADI has always placed the highest emphasis on delivering products that meet the maximum levels of quality and reliability. We achieve this by incorporating quality and reliability checks in every scope of product and process design, and in the manufacturing process as well. "Zero defects" for shipped products is always our goal. View our quality and reliability program and certifications for more information.

Part Model	Pin/Package Drawing	Documentation	CAD Symbols, Footprints, and 3D Models
LT8610ABEMSE#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610ABEMSE#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610ABEMSE#WPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610ABEMSE#WTRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610ABEMSE-3.3#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610ABEMSE-3.3#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610ABEMSE-5#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610ABEMSE-5#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610ABHMSE#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610ABHMSE#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610ABHMSE#WPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610ABHMSE#WTRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610ABHMSE-3.3#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610ABHMSE-3.3#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610ABHMSE-5#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610ABHMSE-5#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610ABIMSE#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610ABIMSE#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610ABIMSE#WPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610ABIMSE#WTRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610ABIMSE-3.3#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610ABIMSE-3.3#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610ABIMSE-5#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610ABIMSE-5#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610AEMSE#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610AEMSE#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610AEMSE#WPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610AEMSE#WTRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610AEMSE-3.3#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610AEMSE-3.3#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610AEMSE-5#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610AEMSE-5#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610AHMSE#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610AHMSE#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610AHMSE#WPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610AHMSE#WTRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610AHMSE-3.3#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610AHMSE-3.3#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610AHMSE-5#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610AHMSE-5#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610AIMSE#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610AIMSE#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610AIMSE#WPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610AIMSE#WTRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610AIMSE-3.3#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610AIMSE-3.3#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610AIMSE-5#PBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys
LT8610AIMSE-5#TRPBF	16-Lead MSOP w/ EP	Material Declaration Reliability Report Package Resources	Ultra Librarian SamacSys

Part Models	Product Lifecycle	PCN

Feb 14, 2025 - 25_0017 Bond Wire Change from Gold to Copper
		PCN25_0017_Form Material_Report Qualification Results Summary
LT8610ABEMSE#PBF	PRODUCTION
LT8610ABEMSE#TRPBF	PRODUCTION
LT8610ABEMSE-3.3#PBF	PRODUCTION
LT8610ABEMSE-3.3#TRPBF	PRODUCTION
LT8610ABEMSE-5#PBF	PRODUCTION
LT8610ABEMSE-5#TRPBF	PRODUCTION
LT8610ABHMSE-5#PBF	PRODUCTION
LT8610ABHMSE-5#TRPBF	PRODUCTION
LT8610ABIMSE-3.3#PBF	PRODUCTION
LT8610ABIMSE-3.3#TRPBF	PRODUCTION
LT8610ABIMSE-5#PBF	PRODUCTION
LT8610ABIMSE-5#TRPBF	PRODUCTION
LT8610AEMSE#PBF	PRODUCTION
LT8610AEMSE#TRPBF	PRODUCTION
LT8610AEMSE-3.3#PBF	PRODUCTION
LT8610AEMSE-3.3#TRPBF	PRODUCTION
LT8610AEMSE-5#PBF	PRODUCTION
LT8610AEMSE-5#TRPBF	PRODUCTION
LT8610AHMSE-3.3#PBF	PRODUCTION
LT8610AHMSE-3.3#TRPBF	PRODUCTION
LT8610AHMSE-5#PBF	PRODUCTION
LT8610AHMSE-5#TRPBF	PRODUCTION
LT8610AIMSE#PBF	PRODUCTION
LT8610AIMSE#TRPBF	PRODUCTION
LT8610AIMSE-3.3#PBF	PRODUCTION
LT8610AIMSE-3.3#TRPBF	PRODUCTION
LT8610AIMSE-5#PBF	PRODUCTION
LT8610AIMSE-5#TRPBF	PRODUCTION
Jun 5, 2024 - 24_0003 Epoxy Change from Henkel 8290 to 8290A for MSOP Package (2)
		PCN24_0003_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LT8610ABEMSE#PBF	PRODUCTION
LT8610ABEMSE#TRPBF	PRODUCTION
LT8610ABEMSE#WPBF	PRODUCTION
LT8610ABEMSE#WTRPBF	PRODUCTION
LT8610ABEMSE-3.3#PBF	PRODUCTION
LT8610ABEMSE-3.3#TRPBF	PRODUCTION
LT8610ABEMSE-5#PBF	PRODUCTION
LT8610ABEMSE-5#TRPBF	PRODUCTION
LT8610ABHMSE#PBF	PRODUCTION
LT8610ABHMSE#TRPBF	PRODUCTION
LT8610ABHMSE#WPBF	PRODUCTION
LT8610ABHMSE#WTRPBF	PRODUCTION
LT8610ABHMSE-3.3#PBF	PRODUCTION
LT8610ABHMSE-3.3#TRPBF	PRODUCTION
LT8610ABHMSE-5#PBF	PRODUCTION
LT8610ABHMSE-5#TRPBF	PRODUCTION
LT8610ABIMSE#PBF	PRODUCTION
LT8610ABIMSE#TRPBF	PRODUCTION
LT8610ABIMSE#WPBF	PRODUCTION
LT8610ABIMSE#WTRPBF	PRODUCTION
LT8610ABIMSE-3.3#PBF	PRODUCTION
LT8610ABIMSE-3.3#TRPBF	PRODUCTION
LT8610ABIMSE-5#PBF	PRODUCTION
LT8610ABIMSE-5#TRPBF	PRODUCTION
LT8610AEMSE#PBF	PRODUCTION
LT8610AEMSE#TRPBF	PRODUCTION
LT8610AEMSE#WPBF	PRODUCTION
LT8610AEMSE#WTRPBF	PRODUCTION
LT8610AEMSE-3.3#PBF	PRODUCTION
LT8610AEMSE-3.3#TRPBF	PRODUCTION
LT8610AEMSE-5#PBF	PRODUCTION
LT8610AEMSE-5#TRPBF	PRODUCTION
LT8610AHMSE#PBF	PRODUCTION
LT8610AHMSE#TRPBF	PRODUCTION
LT8610AHMSE#WPBF	PRODUCTION
LT8610AHMSE#WTRPBF	PRODUCTION
LT8610AHMSE-3.3#PBF	PRODUCTION
LT8610AHMSE-3.3#TRPBF	PRODUCTION
LT8610AHMSE-5#PBF	PRODUCTION
LT8610AHMSE-5#TRPBF	PRODUCTION
LT8610AIMSE#PBF	PRODUCTION
LT8610AIMSE#TRPBF	PRODUCTION
LT8610AIMSE#WPBF	PRODUCTION
LT8610AIMSE#WTRPBF	PRODUCTION
LT8610AIMSE-3.3#PBF	PRODUCTION
LT8610AIMSE-3.3#TRPBF	PRODUCTION
LT8610AIMSE-5#PBF	PRODUCTION
LT8610AIMSE-5#TRPBF	PRODUCTION
Jul 12, 2022 - 22_0157 UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages [With Modification in BOM]
		PCN22_0157_Form Material_Report Qualification Results Summary Delta Qualification Matrix Detailed Parts List
LT8610ABEMSE#PBF	PRODUCTION
LT8610ABEMSE#TRPBF	PRODUCTION
LT8610AHMSE#WPBF	PRODUCTION
LT8610AHMSE#WTRPBF	PRODUCTION
Jun 21, 2022 - 22_0050 UTAC Thai Limited (UTL) as Alternate Assembly Site for MSOP Packages / Devices
		PCN22_0050_Form Material_Report Qualification Results Summary Delta Qualification Matrix
LT8610ABEMSE#PBF	PRODUCTION
LT8610ABEMSE#TRPBF	PRODUCTION
Feb 4, 2020 - 20_0132 Laser Top Mark for 16-Lead MSOP Packages Assembled in ADPG and UTAC
		PCN20_0132_Form Material_Report
LT8610ABEMSE#PBF	PRODUCTION
LT8610ABEMSE#TRPBF	PRODUCTION
LT8610ABEMSE-3.3#PBF	PRODUCTION
LT8610ABEMSE-3.3#TRPBF	PRODUCTION
LT8610ABEMSE-5#PBF	PRODUCTION
LT8610ABEMSE-5#TRPBF	PRODUCTION
LT8610ABHMSE#PBF	PRODUCTION
LT8610ABHMSE#TRPBF	PRODUCTION
LT8610ABHMSE-3.3#PBF	PRODUCTION
LT8610ABHMSE-3.3#TRPBF	PRODUCTION
LT8610ABHMSE-5#PBF	PRODUCTION
LT8610ABHMSE-5#TRPBF	PRODUCTION
LT8610ABIMSE#PBF	PRODUCTION
LT8610ABIMSE#TRPBF	PRODUCTION
LT8610ABIMSE-3.3#PBF	PRODUCTION
LT8610ABIMSE-3.3#TRPBF	PRODUCTION
LT8610ABIMSE-5#PBF	PRODUCTION
LT8610ABIMSE-5#TRPBF	PRODUCTION
LT8610AEMSE#PBF	PRODUCTION
LT8610AEMSE#TRPBF	PRODUCTION
LT8610AEMSE-3.3#PBF	PRODUCTION
LT8610AEMSE-3.3#TRPBF	PRODUCTION
LT8610AEMSE-5#PBF	PRODUCTION
LT8610AEMSE-5#TRPBF	PRODUCTION
LT8610AHMSE#PBF	PRODUCTION
LT8610AHMSE#TRPBF	PRODUCTION
LT8610AHMSE-3.3#PBF	PRODUCTION
LT8610AHMSE-3.3#TRPBF	PRODUCTION
LT8610AHMSE-5#PBF	PRODUCTION
LT8610AHMSE-5#TRPBF	PRODUCTION
LT8610AIMSE#PBF	PRODUCTION
LT8610AIMSE#TRPBF	PRODUCTION
LT8610AIMSE-3.3#PBF	PRODUCTION
LT8610AIMSE-3.3#TRPBF	PRODUCTION
LT8610AIMSE-5#PBF	PRODUCTION
LT8610AIMSE-5#TRPBF	PRODUCTION
Apr 11, 2019 - 19_0067 Notification of Wafer Fab Location Change for 0.35 BCD Process
		PCN19_0067_Form Material_Report Delta Qualification Matrix Qualification Results Summary Detailed Parts List Other
LT8610ABEMSE#PBF	PRODUCTION
LT8610ABEMSE#TRPBF	PRODUCTION
LT8610ABEMSE-3.3#PBF	PRODUCTION
LT8610ABEMSE-3.3#TRPBF	PRODUCTION
LT8610ABEMSE-5#PBF	PRODUCTION
LT8610ABEMSE-5#TRPBF	PRODUCTION
LT8610ABHMSE#PBF	PRODUCTION
LT8610ABHMSE#TRPBF	PRODUCTION
LT8610ABHMSE-3.3#PBF	PRODUCTION
LT8610ABHMSE-3.3#TRPBF	PRODUCTION
LT8610ABHMSE-5#PBF	PRODUCTION
LT8610ABHMSE-5#TRPBF	PRODUCTION
LT8610ABIMSE#PBF	PRODUCTION
LT8610ABIMSE#TRPBF	PRODUCTION
LT8610ABIMSE-3.3#PBF	PRODUCTION
LT8610ABIMSE-3.3#TRPBF	PRODUCTION
LT8610ABIMSE-5#PBF	PRODUCTION
LT8610ABIMSE-5#TRPBF	PRODUCTION
LT8610AEMSE#PBF	PRODUCTION
LT8610AEMSE#TRPBF	PRODUCTION
LT8610AEMSE-3.3#PBF	PRODUCTION
LT8610AEMSE-3.3#TRPBF	PRODUCTION
LT8610AEMSE-5#PBF	PRODUCTION
LT8610AEMSE-5#TRPBF	PRODUCTION
LT8610AHMSE#PBF	PRODUCTION
LT8610AHMSE#TRPBF	PRODUCTION
LT8610AHMSE-3.3#PBF	PRODUCTION
LT8610AHMSE-3.3#TRPBF	PRODUCTION
LT8610AHMSE-5#PBF	PRODUCTION
LT8610AHMSE-5#TRPBF	PRODUCTION
LT8610AIMSE#PBF	PRODUCTION
LT8610AIMSE#TRPBF	PRODUCTION
LT8610AIMSE-3.3#PBF	PRODUCTION
LT8610AIMSE-3.3#TRPBF	PRODUCTION
LT8610AIMSE-5#PBF	PRODUCTION
LT8610AIMSE-5#TRPBF	PRODUCTION
Apr 17, 2025 - 25_0119 Bond Wire Change from Gold to Copper (Automotive)
		PCN25_0119_Form Material_Report Delta Qualification Matrix Qualification Results Summary
LT8610ABEMSE#WPBF	PRODUCTION
LT8610ABEMSE#WTRPBF	PRODUCTION
LT8610ABHMSE#WPBF	PRODUCTION
LT8610ABHMSE#WTRPBF	PRODUCTION
LT8610ABIMSE#WPBF	PRODUCTION
LT8610ABIMSE#WTRPBF	PRODUCTION
LT8610AEMSE#WPBF	PRODUCTION
LT8610AEMSE#WTRPBF	PRODUCTION
LT8610AHMSE#WPBF	PRODUCTION
LT8610AHMSE#WTRPBF	PRODUCTION
LT8610AIMSE#WPBF	PRODUCTION
LT8610AIMSE#WTRPBF	PRODUCTION
Apr 14, 2025 - 25_0017 Bond Wire Change from Gold to Copper
		PCN25_0017_Form Material_Report Qualification Results Summary
LT8610ABEMSE#WPBF	PRODUCTION
LT8610ABEMSE#WTRPBF	PRODUCTION
LT8610ABHMSE#WPBF	PRODUCTION
LT8610ABHMSE#WTRPBF	PRODUCTION
LT8610ABHMSE-3.3#PBF	PRODUCTION
LT8610ABHMSE-3.3#TRPBF	PRODUCTION
LT8610ABIMSE#PBF	PRODUCTION
LT8610ABIMSE#TRPBF	PRODUCTION
LT8610ABIMSE#WPBF	PRODUCTION
LT8610ABIMSE#WTRPBF	PRODUCTION
LT8610AEMSE#WPBF	PRODUCTION
LT8610AEMSE#WTRPBF	PRODUCTION
LT8610AHMSE#WPBF	PRODUCTION
LT8610AHMSE#WTRPBF	PRODUCTION
LT8610AIMSE#WPBF	PRODUCTION
LT8610AIMSE#WTRPBF	PRODUCTION

This is the most up-to-date revision of the Data Sheet.

Software Resources

Can't find the software or driver you need?

Request a Driver/Software

Hardware Ecosystem

Parts	Product Life Cycle	Description
Power System Management (PSM) & Sequencers 1
LTC2974	RECOMMENDED FOR NEW DESIGNS	4-Channel PMBus Power System Manager Featuring Accurate Output Current Measurement
Protection Switches & Controllers 2
LTC4365	RECOMMENDED FOR NEW DESIGNS	Overvoltage, Undervoltage and Reverse Supply Protection Controller
LTC4370	RECOMMENDED FOR NEW DESIGNS	Two-Supply Diode-OR Current Balancing Controller

Parts	Product Life Cycle	Description
LT8610AX	RECOMMENDED FOR NEW DESIGNS	42V, 3.5A Synchronous Step-Down Regulator with Operation to 175°C

Tools & Simulations

LTspice 2

Models for the following parts are available in LTspice:

LT8610
LT8610A
LT8610AB
LT8610AC

LTpowerCAD 2

Design tools for the following parts are available in LTpowerCAD:

LT8610
LT8610A
LT8610AB
LT8610AC
LT8610AC-1

LTspice® is a powerful, fast and free simulation software, schematic capture and waveform viewer with enhancements and models for improving the simulation of analog circuits.

LTpowerCAD^® is a power supply design program which selects power stage components, provides detailed power efficiency, shows quick loop Bode plot stability and load transient analysis, and can export to LTspice for simulation.

Evaluation Kits

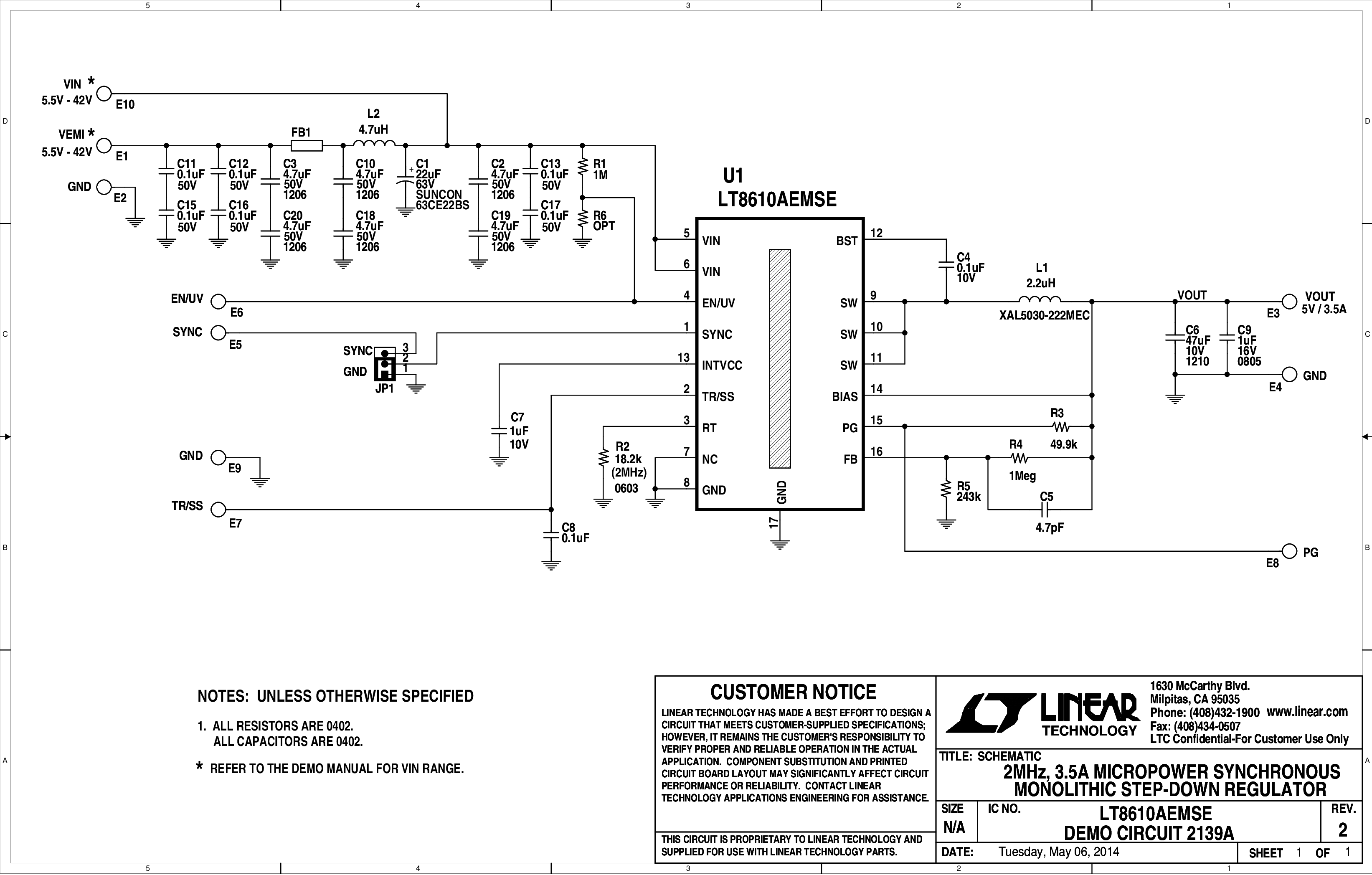

LT8610A Demo Board | Micropower Sync Buck, 5.5V ≤ VIN ≤ 42V Input, VOUT = 5V @ 3.5A

Buy Now View Details

Product Details

Demonstration circuit 2139A is a 42V, 3.5A micropower synchronous step-down regulator featuring the LT8610A. The LT8610A is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes only 2.5μA of quiescent current when output is regulated at 5V and is unloaded. The 2139A uses two input ceramic capacitors in series to improve reliability in case of an input capacitor short failure. Top and bottom power switches, compensation components and other necessary circuits are inside of the LT8610A to minimize external components and simplify design.

Resources

DC2139A - Demo Manual
7/2/2014

DC2139A - Schematic
7/2/2014

DC2139A - Design File
7/2/2014

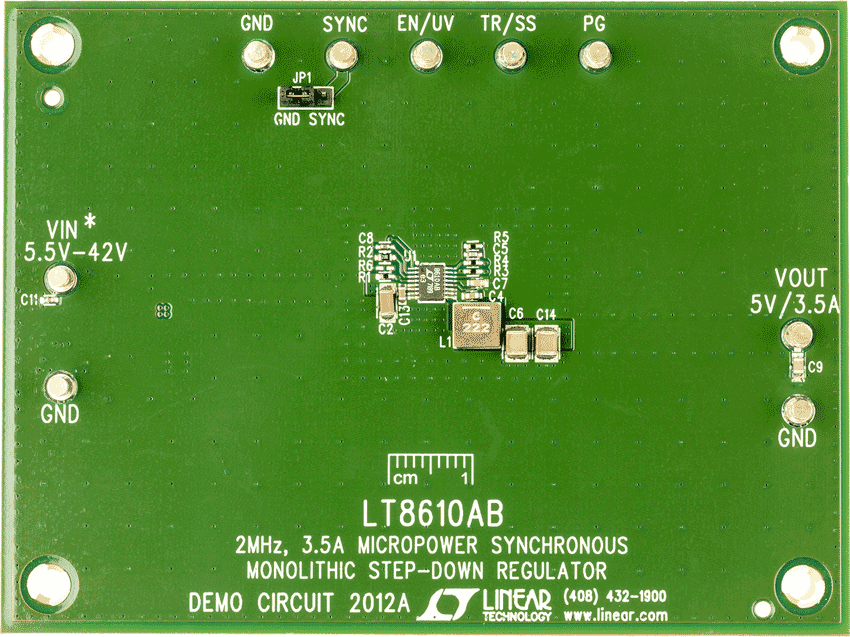

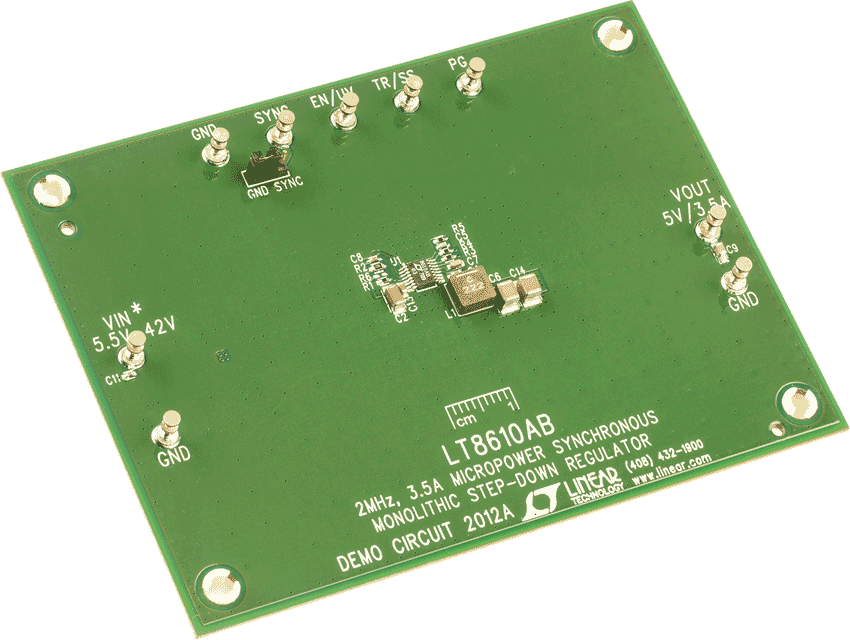

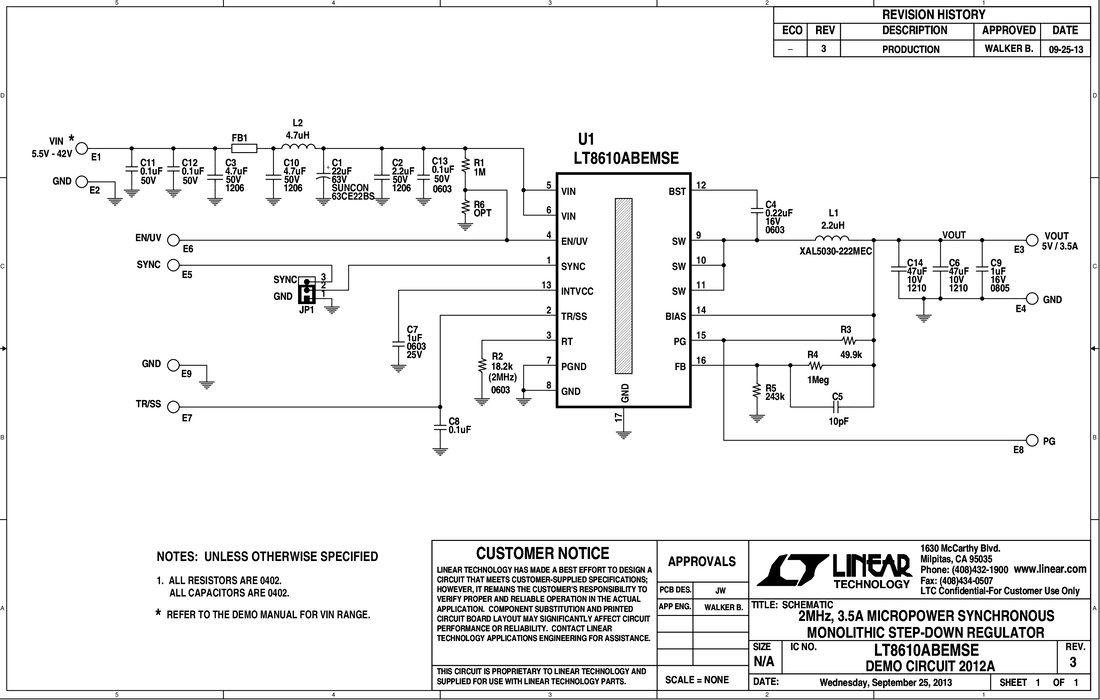

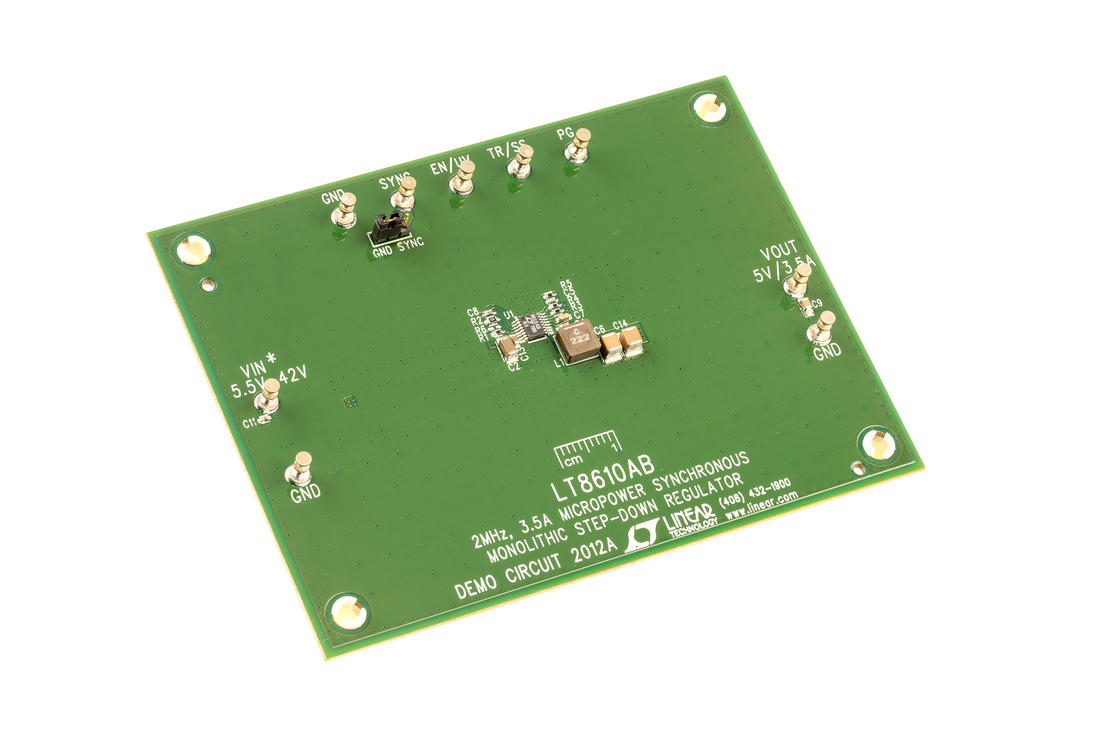

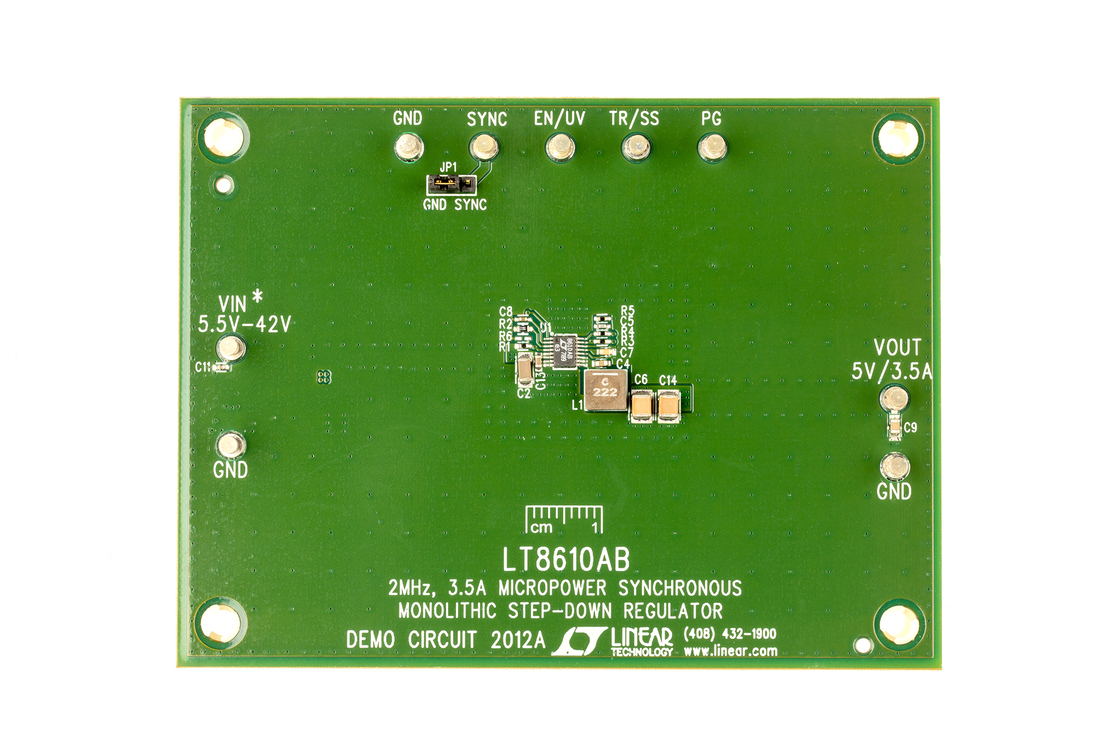

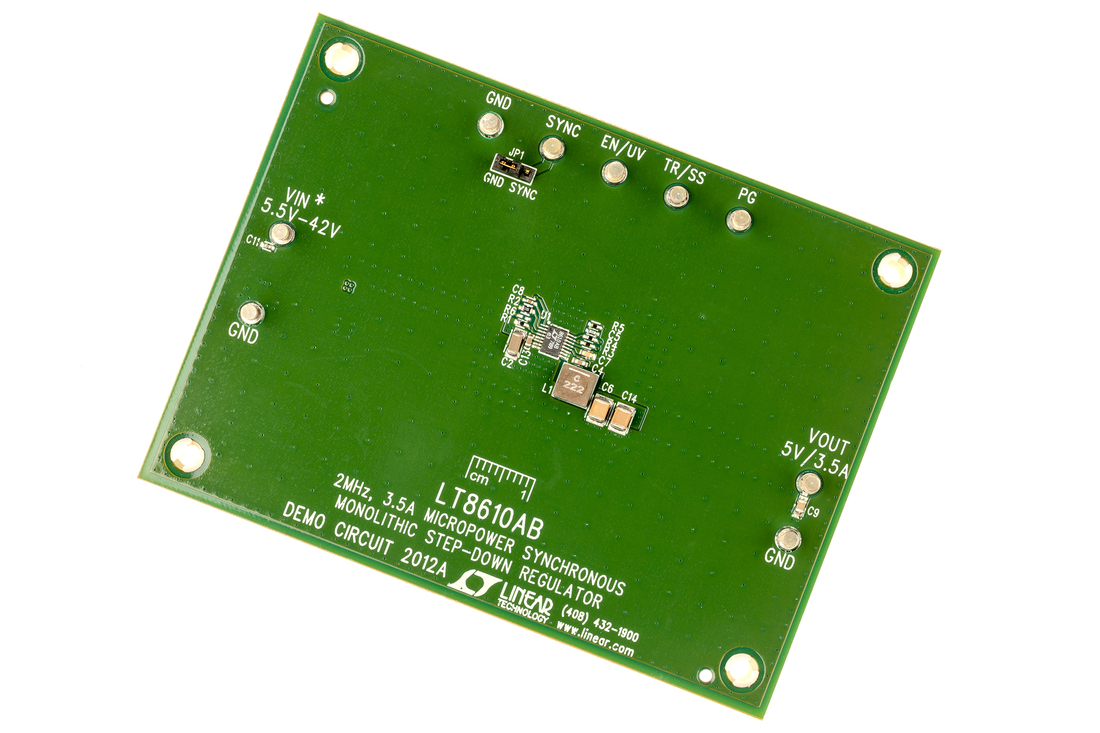

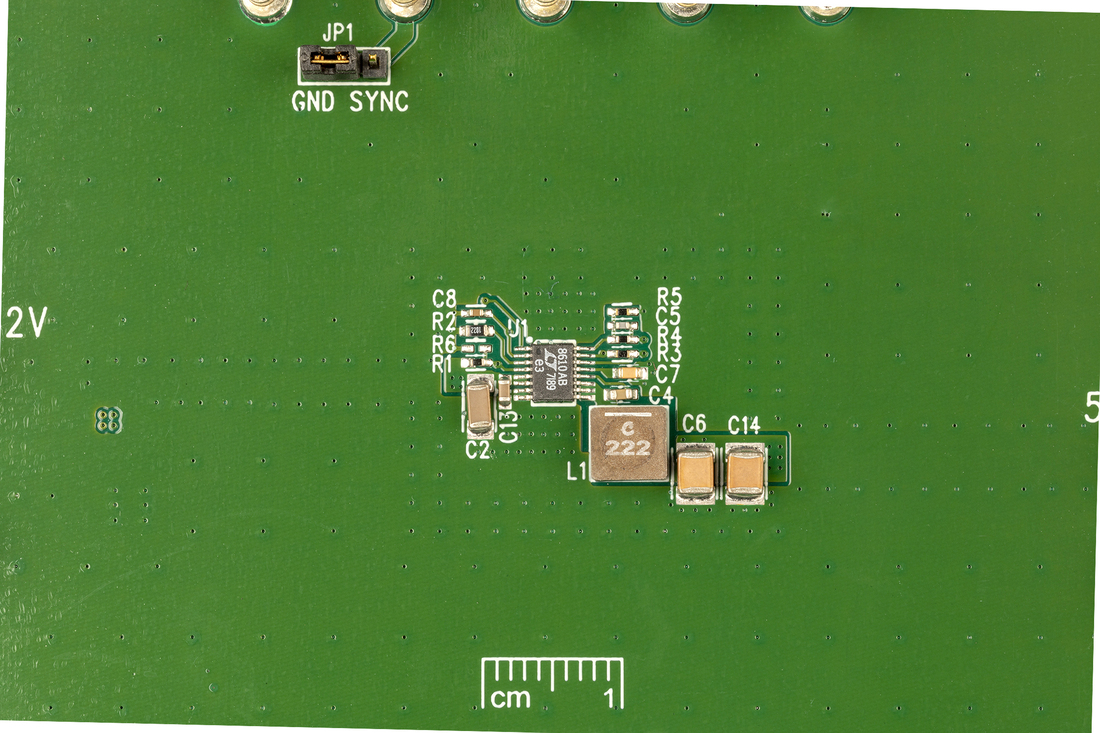

LT8610AB Demo Board | Micropower Synchronous Buck, High Efficiency Burst Mode, 5.5V ≤ VIN ≤ 42V, VOUT = 5V @ 3.5A

Buy Now View Details

Product Details

Demonstration circuit 2012A is a 42V, 3.5A micropower synchronous step-down regulator featuring the LT8610AB. The LT8610AB is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes only 2.5μA of quiescent current when output is regulated at 5V. The efficiency of the circuit is greater than 90% at light load up to 1.5A. This is a 10% improvement over competing parts. Top and bottom power switches, compensation components and other necessary circuits are inside of the LT8610AB to minimize external components and simplify design.
