DC2012A
LT8610AB Demo Board | Micropower Synchronous Buck, High Efficiency Burst Mode, 5.5V ≤ VIN ≤ 42V, VOUT = 5V @ 3.5A
Top
Overview
Product Details

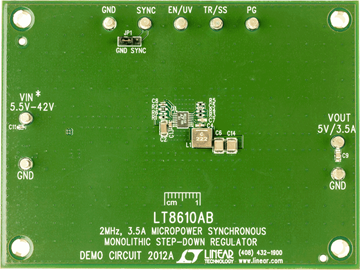

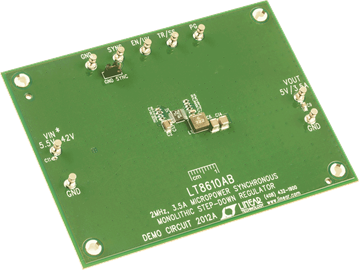

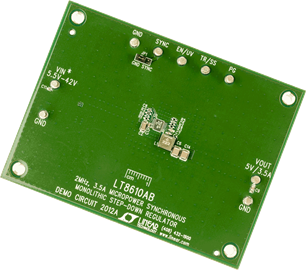

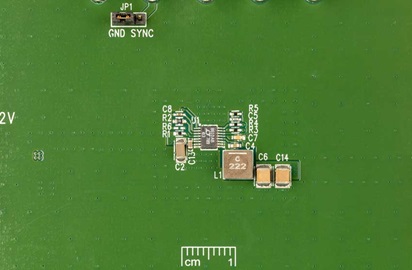

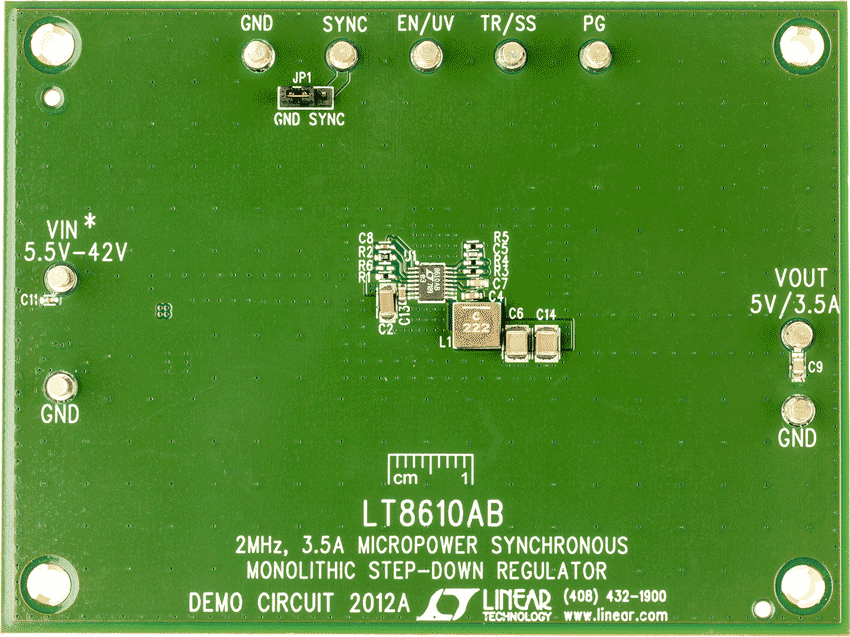

Demonstration circuit 2012A is a 42V, 3.5A micropower synchronous step-down regulator featuring the LT8610AB. The LT8610AB is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes only 2.5μA of quiescent current when output is regulated at 5V. The efficiency of the circuit is greater than 90% at light load up to 1.5A. This is a 10% improvement over competing parts. Top and bottom power switches, compensation components and other necessary circuits are inside of the LT8610AB to minimize external components and simplify design.
Markets and Technologies
Applicable Parts
Documentation & Resources
-

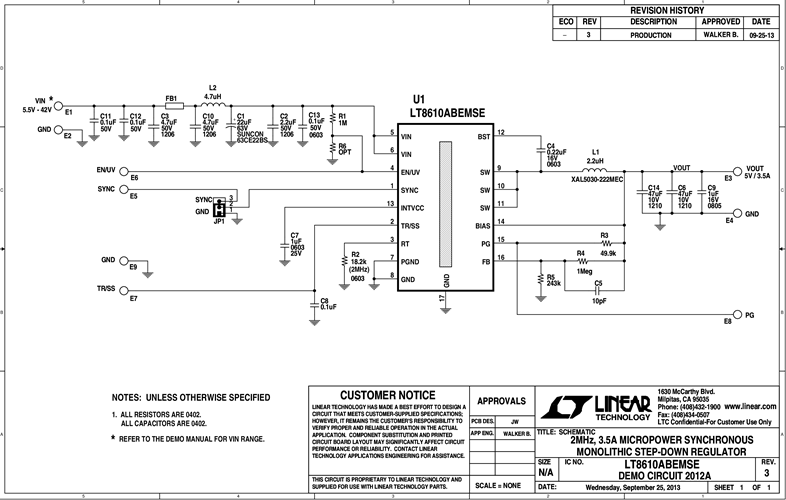

DC2012A - Schematic1/17/2014PDF31K
-
