Designed, Built, Tested

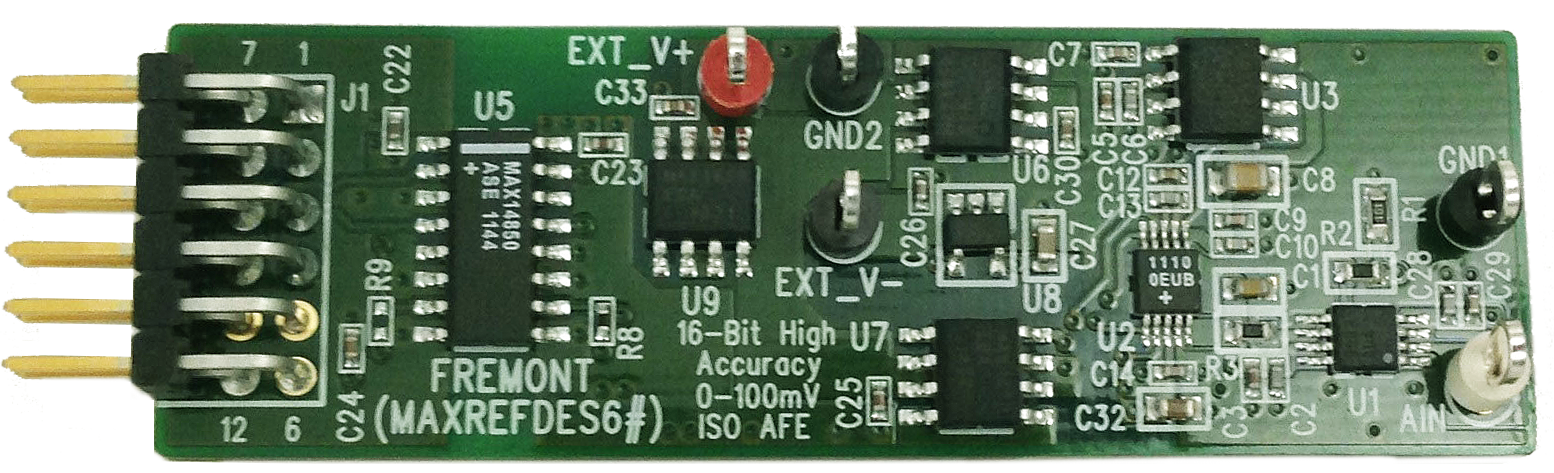

Board pictured here has been fully assembled and tested.

Overview

設計リソース

設計/統合ファイル

  • Schematic
  • PCB Layout
  • PCB CAD files
  • PCB Gerber files
  • Nexys 3 Platform
  • ZedBoard Platform(Zynq-7000)
  • BOM
  • Test Results
設計ファイルのダウンロード 43.75 M

デバイス・ドライバ

コンポーネントのデジタル・インターフェースとを介して通信するために使用されるCコードやFPGAコードなどのソフトウェアです。

MAX11100 GitHub Linux Driver Source Code

説明

The compact Fremont (MAXREFDES6) subsystem reference design (Figure 1) accurately measures low voltage, 0 to 100mV, single-ended analog signals with a high-accuracy, 16-bit analog front end (AFE) complete with an isolated data path. The design optimizes the functions of an ultra-precision low-noise buffer (MAX9632); a highly accurate ADC (MAX11100); an ultra-high-precision 4.096V voltage reference (MAX6126); a 600VRMS monolithic data isolator (MAX14850); and low-dropout (LDO) regulators providing regulated +6V, +5V, and -5V power rails (MAX1659 and MAX1735). This one-of-a-kind AFE solution works in many applications requiring low-voltage input, high impedance, and high-accuracy analog-to-digital conversion. Smart factories, industrial, and medical applications continue to utilize more sensors, of various configurations. While low-voltage sensors provide essential data, they also require/generate high signal-to-noise rathios, rendering many discrete and integrated analog-to-digital converters (ADCs) insufficient for these applications.

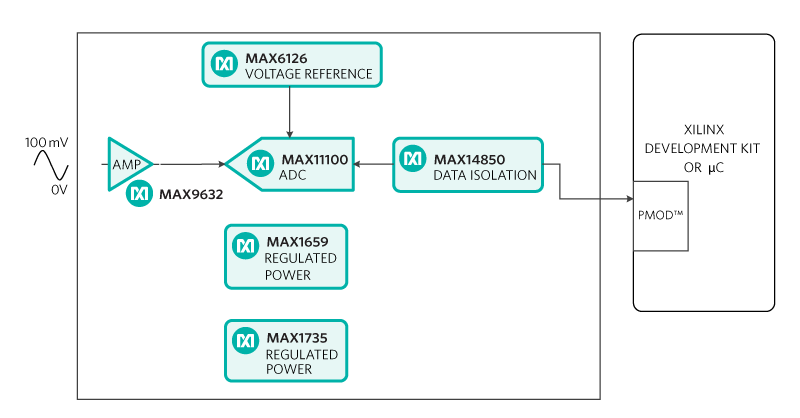

Figure 1. The Fremont subsystem design block diagram.

Figure 1. The Fremont subsystem design block diagram.

機能と利点

Features

  • Applications
  • High-accuracy analog input
  • High impedance
  • 0 to 100mV input range
  • Isolated data path
  • Small printed-circuit board (PCB) area
  • Device drivers
  • Example C source code
  • Pmod-compatible form factor

Applications

  • Low-voltage output sensors
  • Process control
  • Medical

Competitive Advantages

  • Unique single-ended architecture
  • Optimized board size
  • Magnetically immune data path isolation

Details Section

Smart factories, industrial, and medical applications continue to utilize more sensors, of various configurations. While low-voltage sensors provide essential data, they also require/generate high signal-to-noise ratios, rendering many discrete and integrated analog-to-digital converters (ADCs) insufficient for these applications.

The compact Fremont (MAXREFDES6#) subsystem reference design (Figure 1) accurately measures low voltage, 0 to 100mV, single-ended analog signals with a high-accuracy, 16-bit analog front end (AFE) complete with an isolated data path. The design optimizes the functions of an ultra-precision low-noise buffer (MAX9632); a highly accurate ADC(MAX11100); an ultra-high-precision 4.096V voltage reference (MAX6126); a 600VRMS monolithic data isolator (MAX14850); and low-dropout (LDO) regulators providing regulated +6V, +5V, and -5V power rails (MAX1659 and MAX1735). This one-of-a-kind AFE solution works in many applications requiring low-voltage input, high impedance, and high-accuracy analog-to-digital conversion.

Figure 1. The Fremont subsystem design block diagram.

Figure 1. The Fremont subsystem design block diagram.

Features

  • High-accuracy analog input
  • High impedance
  • 0 to 100mV input range
  • Isolated data path
  • Small printed-circuit board (PCB) area
  • Device drivers
  • Example C source code
  • Pmod-compatible form factor

Applications

  • Low-voltage output sensors
  • Process control
  • Medical

Competitive Advantages

  • Unique single-ended architecture
  • Optimized board size
  • Magnetically immune data path isolation
  • maxrefdes6fig01b

    Fremont interfaces with field-programmable gate array (FPGA) development boards using a Pmod connector. The Pmod specification allows for both 3.3V and 5V modules as well as various pin assignments. Fremont requires a 3.3V supply voltage and uses the SPI pin assignments as illustrated here.

    Table 1 shows the power requirements. Table 2 shows the supported platforms and ports.

    Table 1. Power Requirement for the Fremont Subsystem Reference Design
    Power Type Input Input Voltage (V) Input Current (mA, typ)
    External Power EXT_V+ 7 22
    External Power EXT_V- -6 20

    Table 2. Supported Platforms and Ports
    Supported Platforms Ports
    Nexys 3 platform (Spartan®-6) JB1
    ZedBoard platform (Zynq®-7020) JA1

    The MAX9632 (U1) op amp input circuit amplifies and buffers a 0 to100mV signal to match the input range of the ADC (MAX11100), which is 0 to 4.096V.

    The MAX11100 (U2) is a 16-bit, successive-approximation register (SAR) ADC with AutoShutdown and fast 1.1µs wake-up features. The ADC’s reference input is driven by an ultra-high-precision 4.096V voltage reference, the MAX6126 (U3), with 0.02% initial accuracy and a 3ppm/°C maximum temperature coefficient (tempco).

    The Fremont hardware design provides isolated data (MAX14850) for a high-accuracy, high-impedance, 0 to 100mV signal, analog-to-digital conversion application.

    External power supplies power the Fremont board prior to voltage regulation. The MAX1659 LDO regulator provides +6V and +5V rails and the MAX1735 LDO regulator provides the -5V rail. The MAX14850 (U5) isolates the digital data up to 600V.

    To power the Fremont board, connect the ground terminal of the external power supplies to the GND2 connector. Connect the +7V to +16.5V supply to the EXT_V+ connector, and the -6V supply to the EXT_V- connector.


    Detailed Description of Firmware for Nexys 3 Platform

    Table 2 shows currently supported platforms and ports. Support for additional platforms may be added periodically under Firmware Files in the All Design Files section below.

    The Fremont firmware released for the Nexys 3 development kit targets a Microblaze soft-core microcontroller placed inside a Xilinx® Spartan-6 FPGA.

    The firmware allows for immediate interfacing to the hardware, and for collection and saving of samples. Figure 2a shows the simple process flow. The firmware is in C, developed using the Xilinx software development kit (SDK) tool, based on the Eclipse open source standard. Custom Fremont-specific design functions (driver in the maximDeviceSpecificUtilities.c file) were created utilizing the standard Xilinx XSpi core version 3.03a. The SPI clock frequency is set to 3.125MHz.

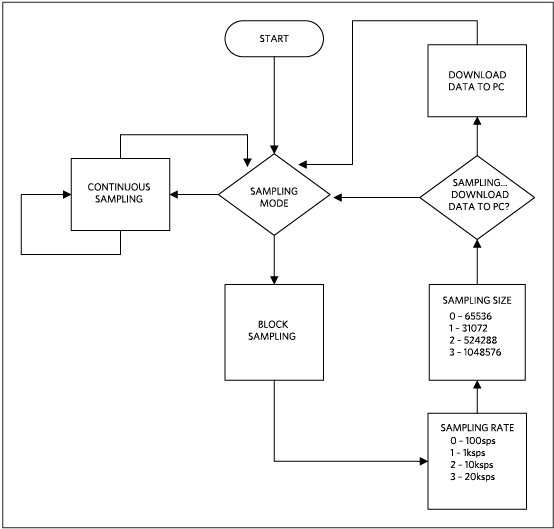

    Figure 2a. The Fremont firmware flowchart for Nexys 3 platform.

    Figure 2a. The Fremont firmware flowchart for Nexys 3 platform.

    The firmware accepts commands, writes status, and can download blocks of sampled data to a standard terminal program over a virtual COM port. The complete source code speeds customer development. Code documentation resides in the corresponding firmware platform files.


    Detailed Description of Firmware for ZedBoard Platform

    The Fremont firmware design also supports the ZedBoard kit and targets an ARM® Cortex® -A9 processor placed inside a Xilinx Zynq system-on-chip (SoC).

    The firmware features an AXI MAX11100 custom IP core to optimize the sampling rate and SPI timing stability.

    The firmware allows for immediate interfacing to the hardware, for collection and saving of samples. Figure 2b shows the simple process flow. The firmware is in C, developed using the Xilinx SDK tool, based on the Eclipse open source standard. Custom Fremont-specific design functions (driver in the maximDeviceSpecificUtilities.c file) were created utilizing the AXI MAX11100 custom IP core. The SPI clock frequency is 4.54MHz when the sample rate is 189.4ksps. The SPI clock frequency is set to 2.5MHz for all other sampling rate.

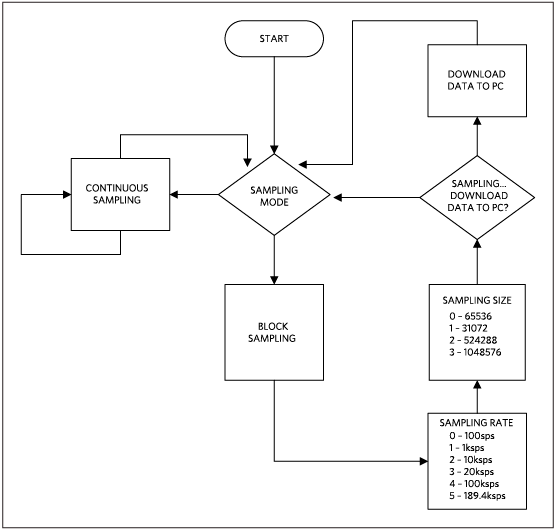

    Figure 2b. The Fremont firmware flowchart ZedBoard platform.

    Figure 2b. The Fremont firmware flowchart ZedBoard platform.

    The firmware accepts commands, writes status, and can download blocks of sampled data to a standard terminal program over a virtual COM port. The complete source code speeds customer development. Code documentation resides in the corresponding firmware platform files.

    Required equipment:

    • Windows® PC with two USB ports
    • Fremont (MAXREFDES6#) board
    • Fremont-supported platform (i.e., Nexys 3 development kit or ZedBoard kit)
    • Industrial sensor or signal source

    Download, read, and carefully follow each step in the appropriate Fremont Quick Start Guide:

    Fremont (MAXREFDES6#) Nexys 3 Quick Start Guide
    Fremont (MAXREFDES6#) ZedBoard Quick Start Guide

    Equipment:

    • HP 33120A waveform generator
    • Voltage calibrator DVC-8500
    • Windows PC with two USB ports
    • Fremont (MAXREFDES6#) board
    • Nexys 3 development kit
    • +7V power supply
    • -6V power supply

    Take special care and use proper equipment when testing the Fremont design. Any high-accuracy design requires sources and measurement equipment of higher accuracy than the design under test. Duplication of the presented test data requires a low distortion signal source. A HP 33120A function generator produced the input signal, and the FFTs were created using the FFT control in SignalLab from Mitov Software.

    Figure 3 and Figure 4 show AC and DC performance.

    Figure 3. AC FFT using on-board isolated power, a 0 to 100mV, 1kHz sine-wave input signal, high-impedance input, a 20ksps sample rate, and a Blackman-Harris window.

    Figure 3. AC FFT using on-board isolated power, a 0 to 100mV, 1kHz sine-wave input signal, high-impedance input, a 20ksps sample rate, and a Blackman-Harris window.

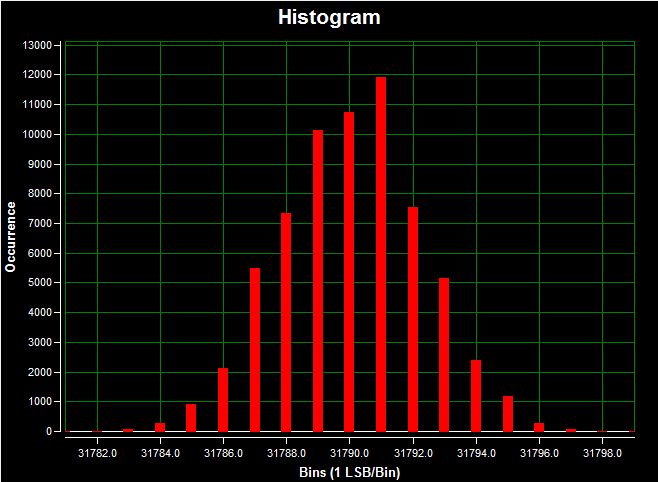

    Figure 4. DC histogram using on-board isolated power; a 50mV input signal; a 20ksps sample rate; 65,536 samples; a code spread of 19 LSBs with 95.7% of the codes falling within the nine center LSBs; and a standard deviation of 2.236.

    Figure 4. DC histogram using on-board isolated power; a 50mV input signal; a 20ksps sample rate; 65,536 samples; a code spread of 19 LSBs with 95.7% of the codes falling within the nine center LSBs; and a standard deviation of 2.236.
