EVAL-AD4195-4

製品概要

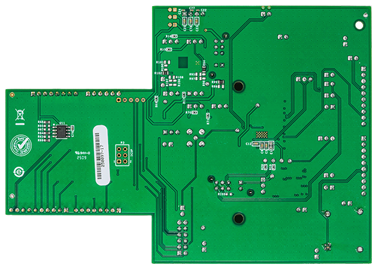

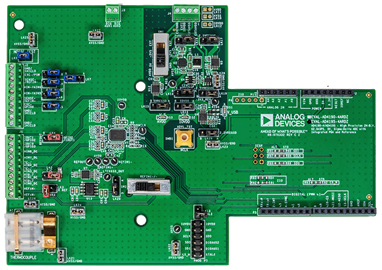

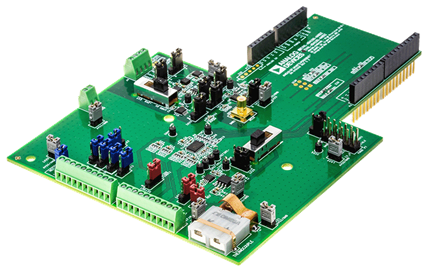

The EVAL-AD4195-4ARDZ evaluation board features the AD4195-4, which is a 24-bit, multichannel, low-noise precision sigma-delta analog-to-digital converter (ADC).

The EVAL-AD4195-4ARDZ evaluation board connects to the USB port of the PC by connecting to the SDP-K1 controller board. A 5V USB supply by the PC is regulated to supply the AD4195-4 and support all necessary components.

The AD4195-4 ACE plug-in fully configures the AD4195-4 device register functionality and provides DC time domain analysis in the form of waveform graphs and associated noise analysis for ADC performance evaluation. The AC analysis is also provided by the software such as a fast fourier transform (FFT), which displays the first five harmonics of the following parameters: SNR, SFDR, S/N+D, and THD.

The EVAL-AD4195-4ARDZ is an evaluation board that allows the user to evaluate the features of the ADC. The user PC software executable controls the AD4195-4 over the USB through the SDP-K1 system demonstration platform (SDP) board.

Full specifications on the AD4195-4 are available in the AD4195-4 data sheet available from Analog Devices, Inc., and must be consulted with this user guide when using the EVAL-AD4195-4ARDZ evaluation board.
